Motion control
Built-in 8x200KHz, 4x200KHz pulse in optional.
Supporting extend 8pcs special function module.
16/16, 28/28
With the help of our technicians and workers,Wuxi Mochuan Drives Technology Co.,Ltd has finally developed the quality-guaranteed product. The product is called chinese low cost automation plc price controller programmable logic controller. Now you can easily find the best suppliers to get the top of the line quality of chinese low cost automation plc price controller programmable logic controller and get lower prices. Wuxi Mochuan Drives Technology Co.,Ltd always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.
Place of Origin: | Jiangsu, China | Brand Name: | Mochuan |
Model Number: | MU1H-1614M | Input/Outupt: | 16/14 |
Pulse input output: | 2*100KHz pulse | Capacity: | 12K |
Output Type: | transisitor/reply in optional | Software: | Free |
Useful quality assurance: | 18 month | MOQ: | NO MOQ |
Serial port: | 2 | Memory retention: | support |
Certificate Number | 1105217 |
Origanization | EC DECLARATION OF CONFORMITY |
Declare the product | |
Date & Time | 02/06/2011 |
Test Standard | EN60950-1:2006+A11:2009 |
Certificate for | EC Low Voltage |
MU2V | MU2H | MU1H | ||||
I/O Point | 16/16, 28/28 | 16/16, 32/32 | 08/06, 12/08, 16/10, 16/14, 36/24 | |||
Max Logical I/O | 512 | 512 | 512 | |||
Max Special Function Module | 8 | 8 | 2 I/O and analog module | |||
Program Capacity | 32K | 24K | 12K | |||
Pulse output | 8x200KHz 4differential output | 3x100KHz( transistor output) | 2x100KHz( transistor output, relay input) | |||
One-phase Counting Channel | 8x200KHz | 2*50KHz, 4x10KHz | ||||
Two-phase Counting Channel | 4x200KHz | 1x25KHz, 2x5KHz | 1x20KHz, 2x10KHz | |||
Sum of Counter Frequency | 800KHz | 100KHz | 80KHz | |||
PLC N:N | support | |||||
RTC | support(power down keeping at least 3years) | |||||
Constant Sanning Mode | support | |||||
Digital Filter | 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable | |||||
Feature | Description | |||||
Programming Software | Free MCprogrammer | |||||
Program Security | download, upload, program password | |||||
Programming Language | ladder, instruction, SFC | |||||
Communication Protocol | programming protocol, Modbus, CAN and free port, MXLink | |||||
Expansion Module | I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et | |||||
For more details data sheet of them,kindly contact us. |
MU1H Models: | ||||||||||||
Model | I/O | RS485 | CAN | Output Type | Integrated | Dimension mm | ||||||
MU1H-0808MR/T/R1/T1 | 08in 06out | support | - | R:relay T:transistor | 4AD-2DA | 126*90*72 | ||||||
MU1H-1208MR/T | 12in 06in | - | ||||||||||
MU1H-1208MR1/T1 | 2AD-1DA | |||||||||||
MU1H-1208MR2/T2 | 1AD-1PT-1DA | |||||||||||
MU1H-1208MR3/T3 | 2PT-1DA | |||||||||||
MU1H-1614MR1/T1 | 16in 14out | 2AD-1DA, support 2pcsc I/O and analog module | 158*90*74 | |||||||||
MU1H-1614MR/T | support 2pcs I/O and analog module | 126*90*72 | ||||||||||
MU1H-1410MR/T | 14in 10out | |||||||||||
MU1H-2416MR/T | 24in 16out | 158*90*74 | ||||||||||
MU1H-3624MR/T | 36in 24out | |||||||||||
There are analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module. Please contact us |

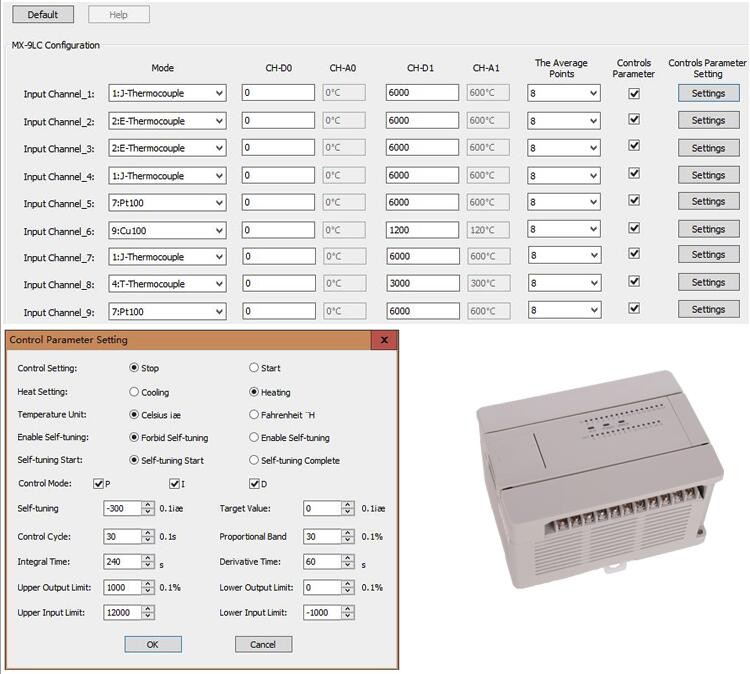

MU1H-0816MTD-6LC, MU1H-0814MTD-4L, MU1H-9LC integrates temperature control:
1.Supports all functions of MU1H series main module.
2. Integrates multi road temperature sampling and control;
3. Support self-turnning function and power off keeping function.
4. Flexible configuration for output, could be used as temperature control output, aslo the general output.

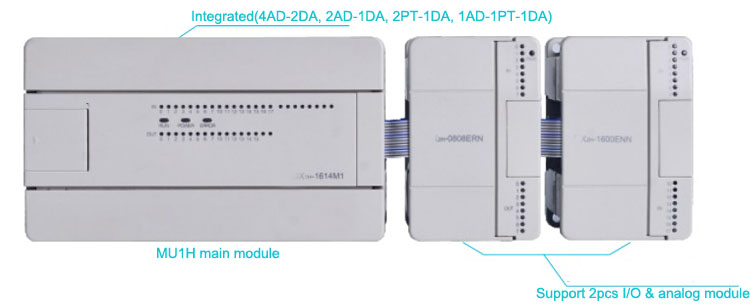

Super Extender System: Max extended I/P points pf MU1H plc is 256points, with integrated 2AD-1DA/ 2PT-1DA and supported 2pcs I/O or specification function module.
Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.
Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.
With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
Motion control
Built-in 8x200KHz, 4x200KHz pulse in optional.
Supporting extend 8pcs special function module.
16/16, 28/28
Built-in 3x100KHz pulse input output.
Supporing extend 8pcs special function module.
16/16, 32/32
7'', 9.7'', 15'', 17'' 22'', 23''
4.3'', 7'', 9.7''10.4'', 12.1'', 15''
4.3'', 7'', 9.7''
More than 30,000 designs of position sensor switch.
Inductive proximity switch, capacitive proximity switch
Photoelectric sensor swtich
φ4, φ5, φ6, M5, M8, M12, M18, M30
Square, combined, cylinder type
Supporting sample purchase, OME&ODM
