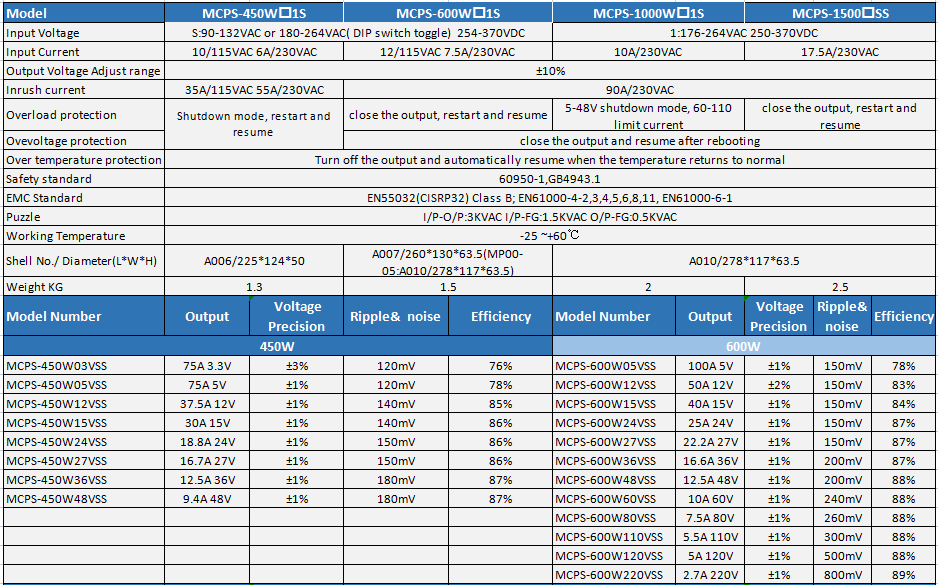

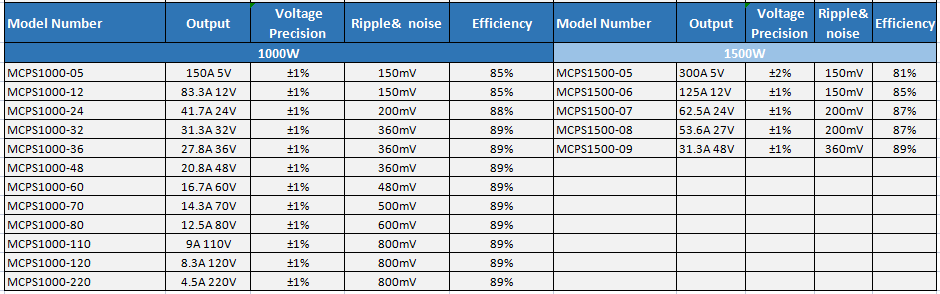

Switching Power Supply with output power of 450W 600W 1000W and 1500W of High performance three proof compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of Switching Power Supply with output power of 450W 600W 1000W and 1500W of High performance three proof can be customized according to your needs.
The Features of MCPS series switching power supply:
1. 12-2400W, output 3.3-110VDC, full categories
2. Universal AC input/ Full range (86-264VAC, 115/230VDC)
3. Withstand 300VAC surge input for 5seconds.
4. 150% peak load capability
5. All aluminum housing, dust proof, antiseptic treatment and damp proof, suibale for harsh environment.
6. Built-in Mountiing hole in the case (200/350W)
7. 36months warranty
8. CCC/CQC/ROHS
The Working Principles of a Switching Power Supply
The Working Principles of a Switching Power Supply revolve around the conversion of electrical energy through efficient switching techniques, utilizing components such as inductors, capacitors, and semiconductors. Unlike traditional linear power supplies that dissipate excess voltage as heat, a Switching Power Supply operates by rapidly toggling the input voltage on and off via a high-frequency switch—typically a transistor. This rapid switching generates pulses that are then transformed by an inductor or transformer to adjust voltage levels according to the required output. The process includes feedback mechanisms where sensors monitor the output voltage and communicate with a control circuit to modulate the duty cycle of the switch. By maintaining this precise balance, Switching Power Supplies can deliver consistent voltages across varying load conditions while minimizing losses and enhancing thermal efficiency. Additionally, they often incorporate rectification circuits that convert AC input into stable DC output suitable for modern electronic devices, underscoring their critical role in powering everything from consumer electronics to industrial machinery.
The MCPS series Model explain:
MCPS-050W24VFS-Q
MCPS: MochuanDrives swtiching power supply series
050W: output power
24V: output voltage
F: input voltage/power ( F:100-240VAC; S:115/230VAC; I: 200-240VAC; H:output power≤100W/ 100-300VAC; output power≥150W/200-300VAC)
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
