Mochuan Drives - Professional design, manufacturer HMI Touch Screen Panel & PLC Controller, provide industry solutions and system integration since 2009.
Professional design, manufacturer HMI Touch Screen Panel & PLC Controller, provide industry solutions and system integration since 2009.
Mochuan Switching Power Supply thin AC/DC type with power 25W 35W 50W 75W 100W 150W 200W 350W compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of Mochuan Switching Power Supply thin AC/DC type with power 25W 35W 50W 75W 100W 150W 200W 350W can be customized according to your needs.
The AC DC switching power supply is an advanced electrical device that efficiently converts alternating current (AC) from the mains into a stable direct current (DC), which is essential for powering various electronic devices and systems. Utilizing high-frequency switching technology, this power supply operates by rapidly turning on and off, minimizing energy loss through heat dissipation and thereby increasing overall efficiency. The key components of an AC DC switching power supply include a transformer that steps down voltage levels, rectifiers that convert AC to DC, and capacitors that filter the output to ensure smooth voltage delivery. This sophisticated design allows for compact size while delivering high performance across a wide range of applications—ranging from consumer electronics to industrial machinery—effectively meeting the growing demand for reliable and efficient power solutions in today's fast-paced technological landscape. Furthermore, many modern designs incorporate protective features like over-voltage protection and short-circuit prevention, enhancing safety while maintaining stable operation under varying load conditions.
There are two series of industrial thin type AC/DC switching power supply, supporting the power 25W 35W 50W 75W 100W 150W 200W and 35W. Wann learn more the list mode of MCLS series, it needs to put the page down.
AC/DC Switching Power Supply MCTS Series Feature
1) Wave protection.
2) 35-350W, output voltage 5-48VDC.
3) Empty-load with low power consumption.
4) Miniaturization and IU low height 30mm.
5) Full AC input range, worldwide use(85-264VAC, 115/230VAC).
6) 36months warranty; CE/RoHs.
MCLS Series Feature
1) 60W 100W 150W
2) Wave protection; Aluminum shell.
3) Empty-load with low power consumption.
4) Slender and wide type， IU low height 30mm, suitable for smaller space installation.
5) AC/DC two ends wiring; Supporting "quick insert connector' to provincial wiring install.
6) 36months warranty; CE.

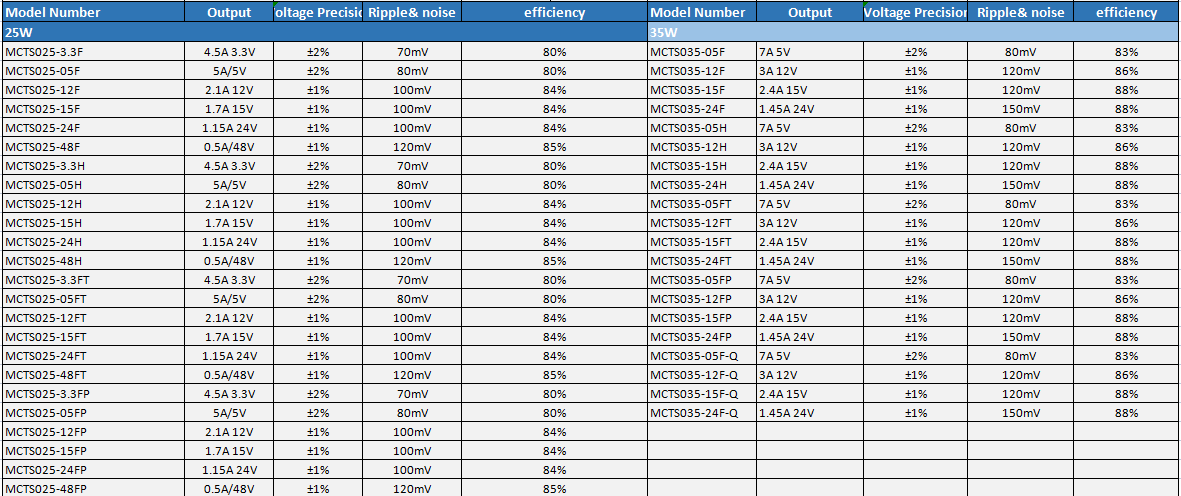

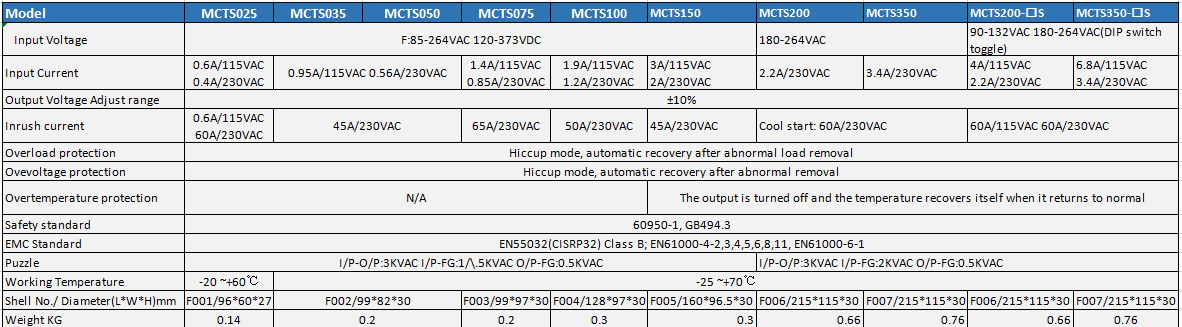

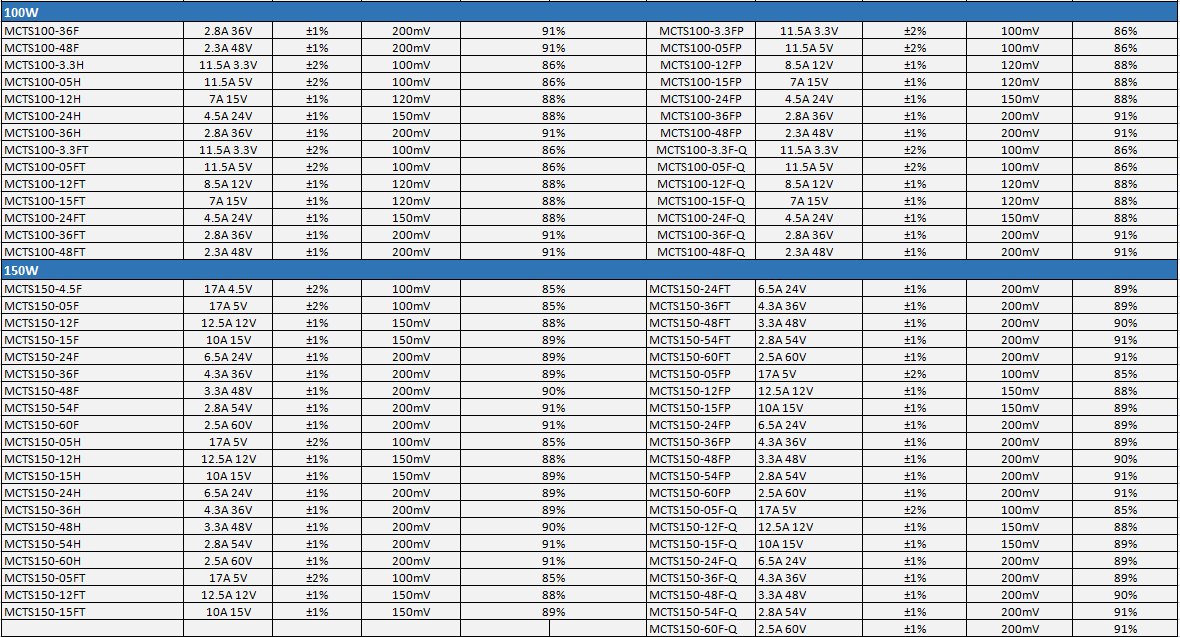

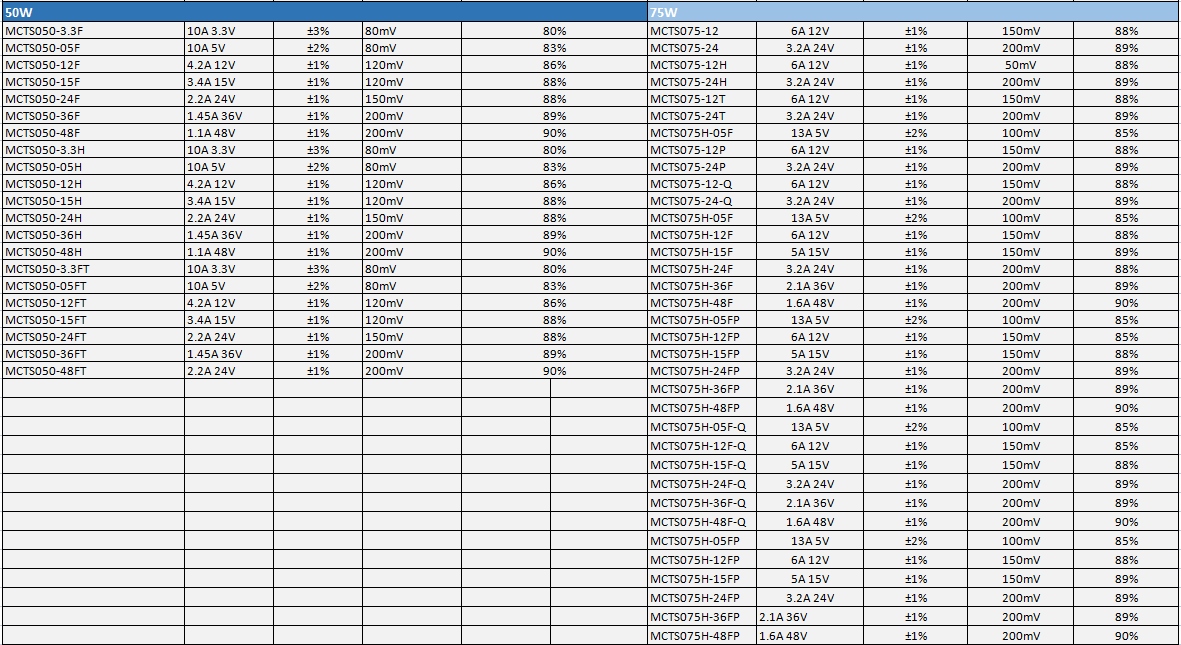

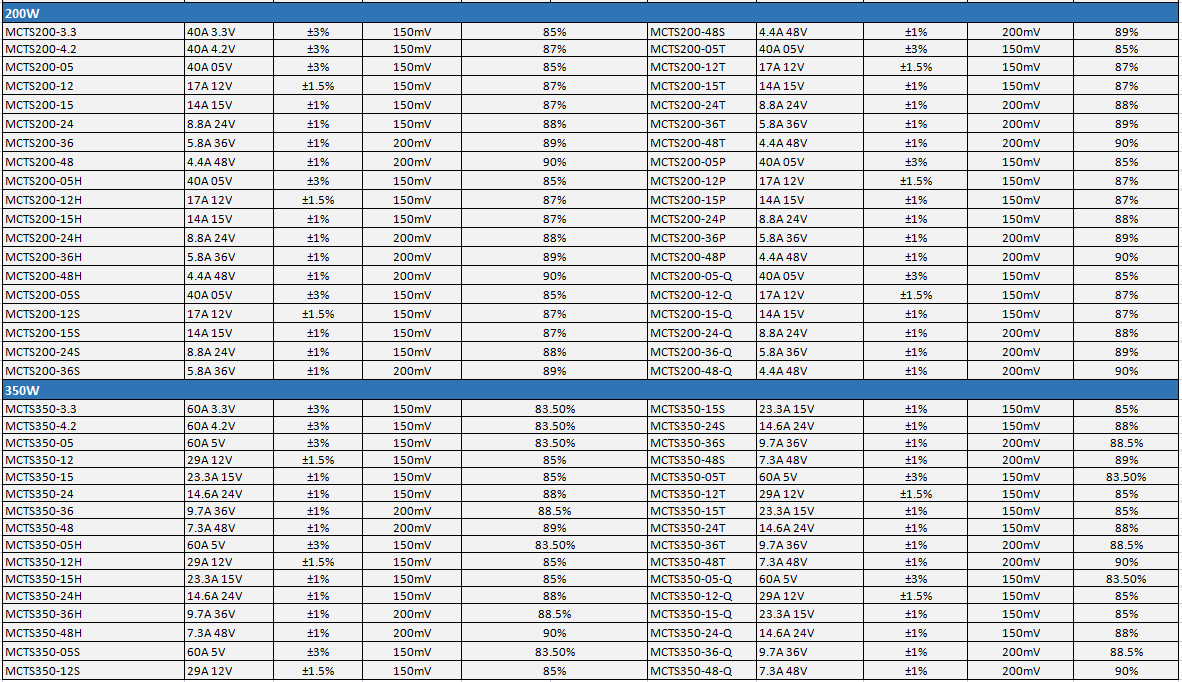

The MCTS Series Models List

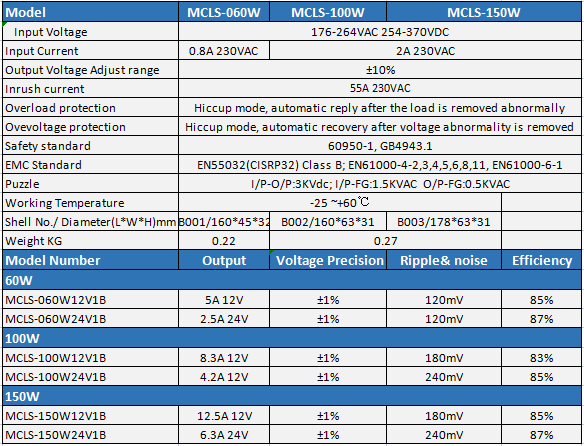

The All Modes List of MCLS Series:
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
