Mochuan 6channels temperature controll model NPN output, to communicate with all device, which support Modbus RTU rs485.
Parameters of MCP-4PT Independent Controller:
| Project | Content | |
| Power | DC24V±10%， 50mA | |
| Sensor Input | 6channels, supporting K, E, S, N, B, T, J, R type | |
| Switch Output | 6 channels NPN output | |
Sensor Input Type and Meaure Raninge | K type | -50℃~1300℃ |
| E type | -100℃~600℃ | |
| S type | -50℃~1700℃ | |
| N type | -100℃~1200℃ | |
| B type | 0℃~1800℃ | |
| T type | -200℃~300℃ | |
| J type | -100℃~600℃ | |
| R type | 0℃~1700℃ | |
| Measure Precision | 0.1 level note1 | |
| Sampling Period | 20ms | |
| Control Period | 100ms-300000ms adjustable | |
| Communicate | RS485 communication standard Modbus RTU protocol | |
| Display Resolution | 0.1℃ | |
Feature Independent Temperature Controller:
MS-6TC-P is a thermocouple temperature control module, which can meet the input and output requirements of 6 channels of temperature control. The module comes with the precise PID algorithm accumulated by our company for many years in the industry. It has high temperature control accuracy and strong overshoot suppression specialty. The module integrates and excellent self-tuning algorithm, and users can auto-tune with one key according to their needs to accurately obtain PID parameters, through the 485 communication port, the module can communicate with the upper computer of various brands, types of LC, touch screen, configuration software and other upper computer to complete more complex logic temperature control.

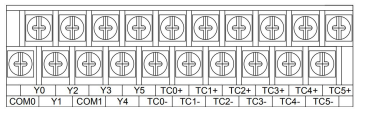

Terminal Layout

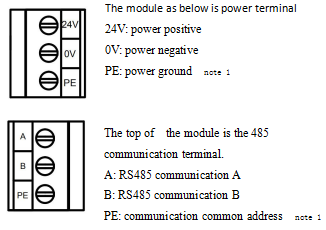

Connect Wire
