As a driven company,Wuxi Mochuan Drives Technology Co.,Ltd has been developing products on our own on a regular basis, one of which is hmi human machiine interface, plc programmable logic controller, standard and non-standard customized permanent magnet motor.It is the newest product and bound to bring benefits to customers. Our product can be tailored to suit you perfectly. After years of growth and development,Wuxi Mochuan Drives Technology Co.,Ltd have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.
| Place of Origin: | Jiangsu, China | Brand Name: | MOCHUAN |
| Model Number: | PM-AW90S2-4 | Type: | permanent magnet motor |
| Frequency: | 50hz/100hz/200hz | Phase: | Three-phase |
| Protect Feature: | IP55 | AC Voltage: | 400V /230V/ 380V |
| Efficiency: | IE 5 | Power: | 2.2kw to 300kw |
| Rated speed: | 1500rpm/3000rpm/750rpm | service: | supporting OEM |
| Material of rotor: | rara earth | level: | IP55 |
| Energy-saving standard: | IE5 | way to install: | IMB3/IMB5/IMB35 |
| Application industry: | Air compressor, metal wire drawing machine, stone machinery | Certification: | ce |
Support OEM
Important help client to wiin in local market
Kindly reminder:
All our certifications are REAL ONE.
NOT FAKE, NOT FAKE, NOT FAKE!!!
PLEASE CONTACT US TO SHOW YOU!!!
WORLD-WIDE CUSTOMERS COMMEND & FEEDBACK
Here is some of comments from our world-wide customers.
You can check all the comment at our company profile by www.mochuan.en..com-" company profit"-"Rating& Rewiews" Then you can see all comments from our clients.
( Know please, all our customer comments are real one, NOT FAKE.)
TRUST YOU WILL LIKE OUR SERVICE, QUALITY AND PRICE
.com suppliers platform show that:
1. We never got any complain.
2. More than 5000 customers contacted us.
3. Star supplier with more than 10000 points.

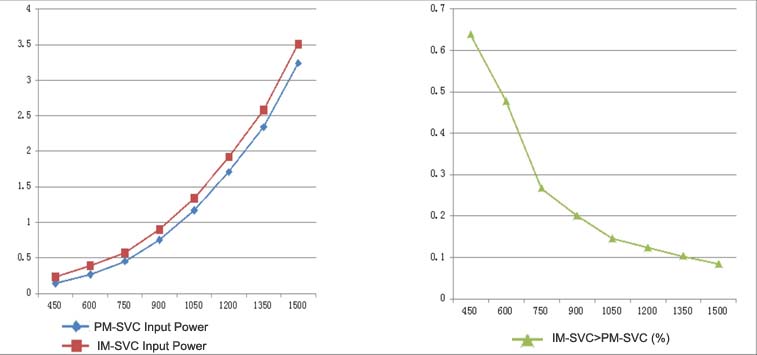

High Power Factor and Efficiency: permanent magnetic rotor eliminates exiting current on account of high magnetic flux density that makes reactive current significantly reduce, working efficiency and power factor hugely increase therewith. Following is the energy efficiency comparision of PM-AW112M4-5 in centrifugal fan.

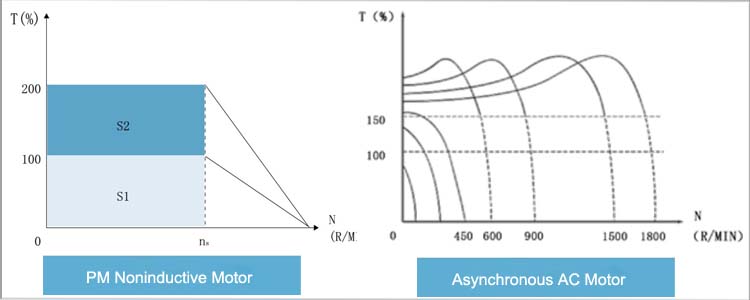

Fast-Response Strong Overload Capacity: PMSM motor's stator core can be designed hollow structure to reduce rotor inertia, and lessen starting and stopping time. Making use of IPM reluctance effect realize above 2times overload capacity of asynchronous motor, Below shows torque characeristce:

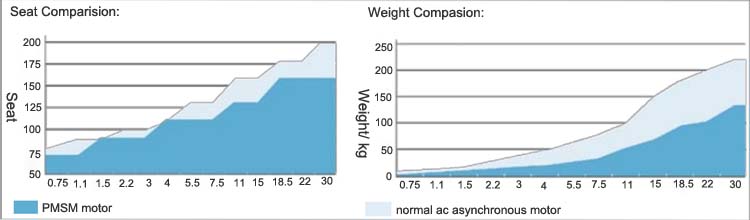

Smaller Size and Lighter Weight: compared with aynshronous motor with same power, pmsm motor is samller 1-2 stand with compacter size.
How does permanent magnetic rotor makes synchronous speed?

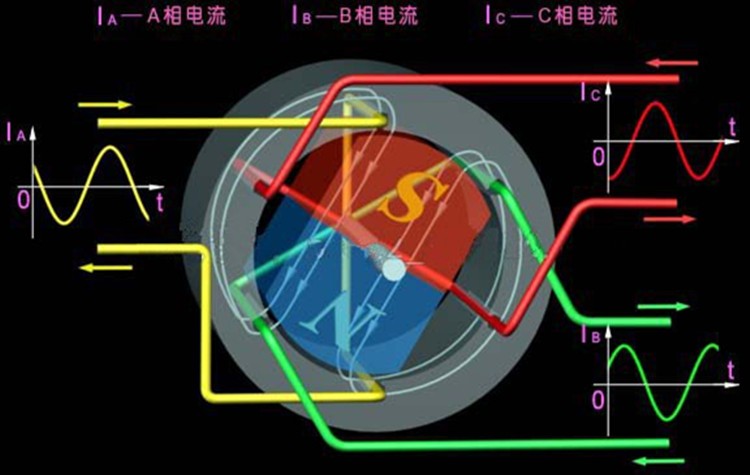

After permanent magnetic rotor is put into stator core that generates rotating magetic filed, it will synchronously spin with magnetic filed, and its speed is the same to magetic filed's. Following is just graphic to show this:
Staring Mode: special vector control VFD. Firstly, frequency power supply( frequency converter) supply powers to permanent magnet synchronous motor, adjust the frequeny power supply to slowly increase from 0, and rotating magnetic filed speed also slowly increase from 0 unitl to the rated speed to make motor slow synchronously aelerate.

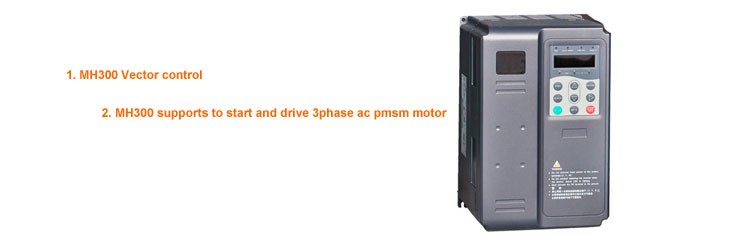

Recommend VFD driver: Mochuan MH300 series, Siemens 6ES70 series, Yaskawa CR5 series, Bosch Rexroth RD51 series, ABB ACS800 series, Danfoss FC312 series, Mitubish A740 series, Delta C200 series, B&R P84 and P74 series, etc.
With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
Besides 3phase ac pmsm motor and vfd. we still support HMI, PLC and Position Swith. If you need, please contact us.
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
