China Micro PLC Controller For Smart Home Control System High Pressure PLC

The pragmatic qualities are the hmi human machiine interface, plc programmable logic controller, standard and non-standard customized permanent magnet motor feature that we mostly focus on. Quality-guaranteed raw materials are adopted to manufacture Chinese micro plc controller for smart home control system with high pressure, which can ensure the product is high-quality from the source. Moreover, relying on high-end technologies and machines, we ensure the product has the superior features and so on.

SEND INQUIRY NOW
shipping:
Express Sea freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 20 pieces) , Customized packaging (Min. Order: 20 pieces) , Graphic customization (Min. Order: 20 pieces)
Ethernet:
Support
SEND INQUIRY NOW
  • Product Details

Today is a great day that Wuxi Mochuan Drives Technology Co.,Ltd plans to introduce our newest product to the public. It has an official name called Mochuan and is supplied at a competitive price. Apart from the benefits for general consumers, Chinese micro plc for smart home control system with high pressure can offer amazing advantages to businesses in terms of sales and customer satisfaction. Looking to the future, Chinese micro plc for smart home control system with high pressure will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.


Place of Origin:Jiangsu, ChinaBrand Name:Mochuan
Model Number:MU1H-1208MInput/Output:12/08
Pulse:2*100KhzUser Program:12K
Communication protocol:standard industry ModbusMOQ:NO MOQ
Software:FreeEthernet:support


What Is A Micro PLC Controller?

The micro PLC controller, also known as a micro programmable logic controller, is a compact and cost-effective version of a traditional PLC. It is designed for small to medium-sized automation applications where space and budget constraints are important considerations. Micro PLCs typically have a smaller number of I/O (input/output) points compared to larger PLCs but offer similar programming capabilities, allowing them to perform control and monitoring functions for various industrial processes. They are commonly used in applications such as standalone machines, building automation systems, and other low- to mid-level automation tasks. Despite their smaller size, micro PLCs can still provide the necessary flexibility and functionality required for many industrial control applications.



How Does A PLC Controller Work?

This PLC controller works by continuously scanning its input devices to detect any changes in their state. These input devices can include sensors, switches, and other instruments that provide information about the process being controlled. Once a change in input is detected, the PLC processes this information based on its programmed logic and performs the necessary control actions, such as activating or deactivating outputs, based on the programmed instructions. This cycle of input scanning, processing, and output control happens repeatedly at a very fast rate, allowing the PLC to effectively monitor and control the industrial process in real time.


The programming of a PLC involves creating a set of instructions, often using ladder logic or other programming languages, that define the behavior of the controller based on different input conditions. These instructions are typically entered into the PLC using specialized software and then downloaded to the PLC's memory for execution. The flexibility of PLC programming allows for a wide range of control strategies to be implemented, making it suitable for diverse industrial applications. PLC controller works by monitoring input signals, executing programmed logic based on these inputs, and controlling output devices to manage and optimize industrial processes.




Mochuan Warranty of Micro PLC Controller

1. Offering 24months warranty for all PLC.
2. Offering free software, demo and communication cable.
3. There are three differet series of plc. MU2V motion control series; MU2H small series; MU1H economic series.
MU2V with 16/16, 28/28, integrated 8x200KHz, 4x200Khz in optional.
MU2H with 16/16, 32/32, integrated 3x100KHz pulse; 24K.
MU1H with 08/06, 12/08, 14/10, 16/14, 24/16, 36/24, integrated 2x100KHz and analog.
Besides plc, we also support HMI and sensor switch. If you need, welcome contact us for price.

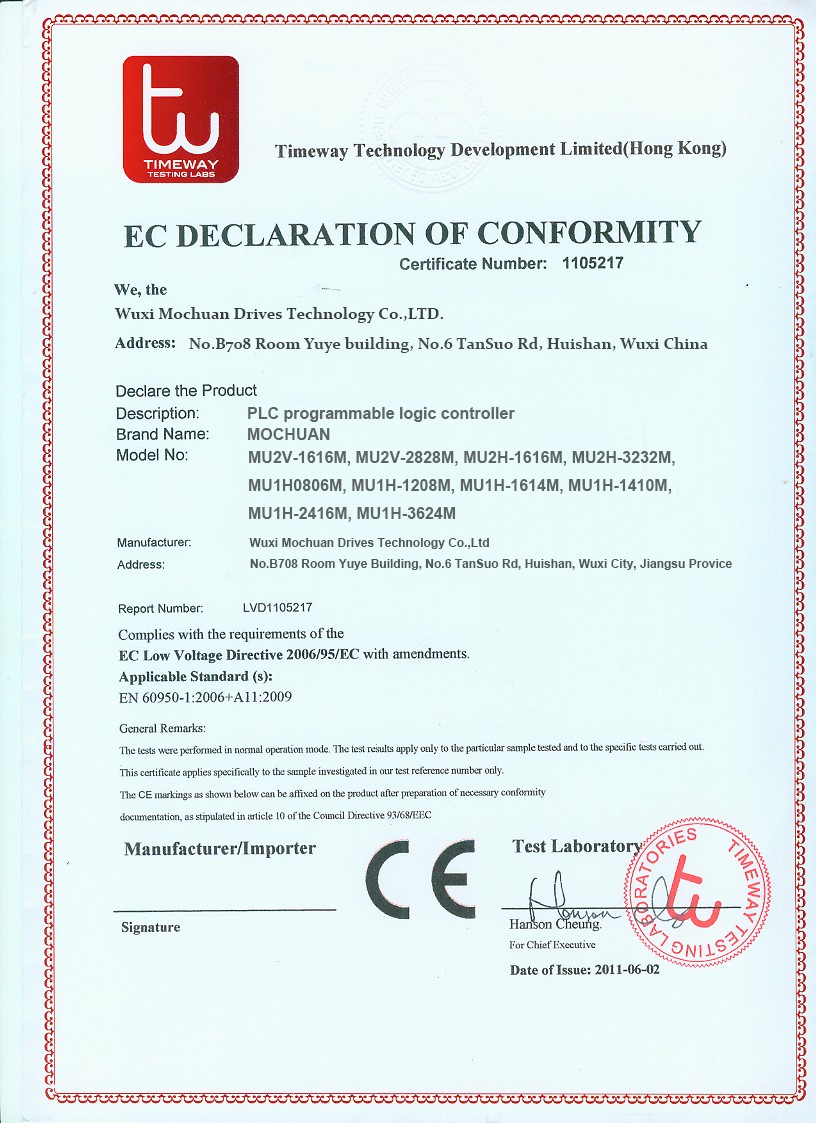

Certificate
Certificate Number
1105217
Origanization
EC DECLARATION OF CONFORMITY
Declare the product
PLC Programmable logic controller
Date & Time
02/06/2011
Test Standard
EN60950-1:2006+A11:2009
Certificate for
EC Low Voltage
Our Advantage


Product Description Of Micro PLC Controller

MU2V
MU2H
MU1H



I/O Point
16/16, 28/28
16/16, 32/32
08/06, 12/08, 16/10, 16/14, 36/24



Max Logical I/O
512
512
512



Max Special Function Module
8
8
2 I/O and analog module



Program Capacity
32K
24K
12K



Pulse output
8x200KHz
4differential output
3x100KHz( transistor output)
2x100KHz( transistor output, relay input)



One-phase Counting Channel
8x200KHz
2*50KHz, 4x10KHz


Two-phase Counting Channel
4x200KHz
1x25KHz, 2x5KHz
1x20KHz, 2x10KHz



Sum of Counter Frequency
800KHz
100KHz
80KHz



PLC N:N
support

RTC
support(power down keeping at least 3years)

Constant Sanning Mode
support

Digital Filter
0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable

Feature
Description

Programming Software
Free MCprogrammer

Program Security
download, upload, program password

Programming Language
ladder, instruction, SFC

Communication Protocol
programming protocol, Modbus, CAN and free port, MXLink

Expansion Module
I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et

For more details data sheet of them,kindly contact us.

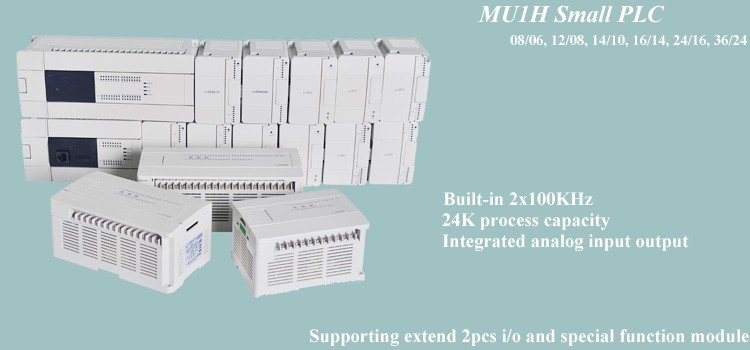

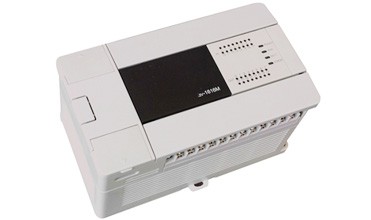

MU1H Models:
Model
I/O
RS485
CAN
Output Type
Integrated
Dimension mm






MU1H-0806MR/T/R1/T1
08in 06out
support
-
R:relay
T:transistor
4AD-2DA
126*90*72






MU1H-1208MR/T
12in 08in
-


MU1H-1208MR1/T1
2AD-1DA

MU1H-1208MR2/T2
1AD-1PT-1DA

MU1H-1208MR3/T3
2PT-1DA

MU1H-1614MR1/T1
16in 14out
2AD-1DA, support 2pcsc I/O and analog module
158*90*74



MU1H-1614MR/T
support 2pcs I/O and analog module
126*90*72


MU1H-1410MR/T
14in 10out

MU1H-2416MR/T
24in 16out
158*90*74


MU1H-3624MR/T
36in 24out

There are analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module. Please contact us
Features of Micro PLC Controller

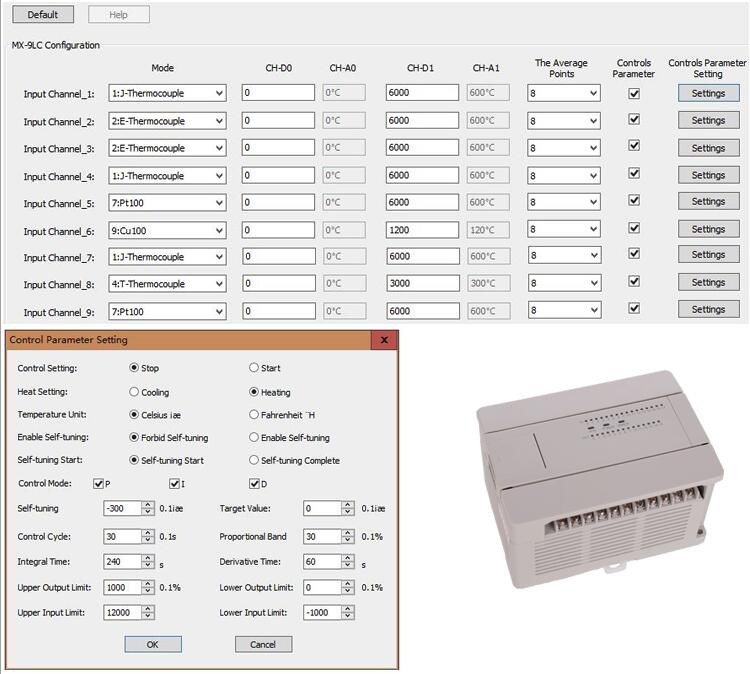

MU1H-0816MTD-6LC, MU1H-0814MTD-4L, MU1H-9LC integrates temperature control:

1.Supports all functions of MU1H series main module.

2. Integrates multi road temperature sampling and control;

3. Support self-turnning function and power off keeping function.

4. Flexible configuration for output, could be used as temperature control output, aslo the general output.

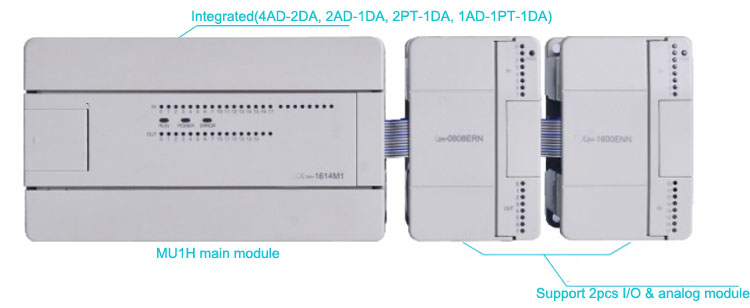

Super Extender System: Max extended I/P points pf MU1H plc is 256points, with integrated 2AD-1DA/ 2PT-1DA and supported 2pcs I/O or specification function module.

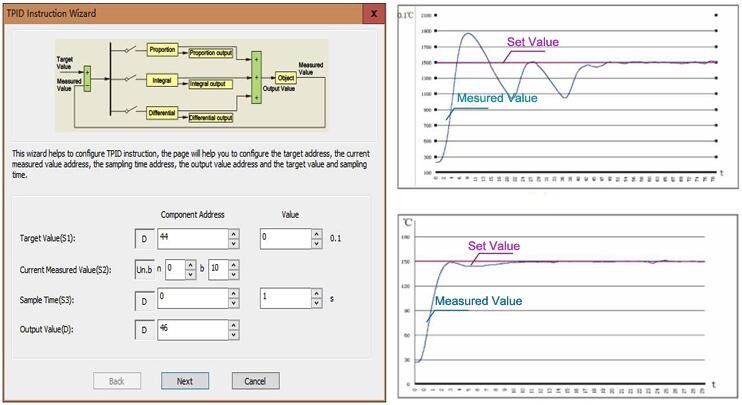

Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.

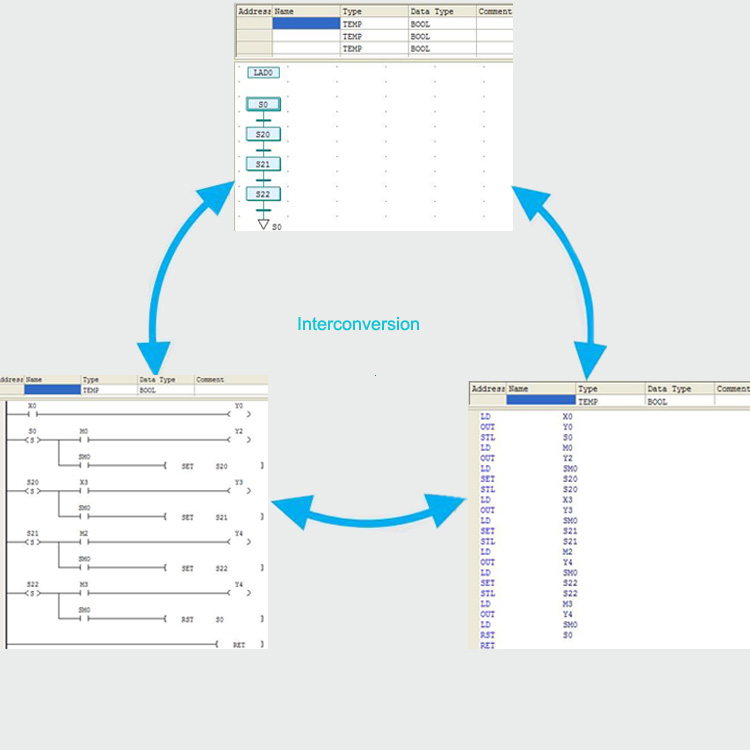

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business  since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.


Mochuan  Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.


Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.


"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."

Related Products

MU2V Series PLC

Motion control

Built-in 8x200KHz, 4x200KHz pulse in optional.

Supporting extend 8pcs special function module.

16/16, 28/28

MU2H Series PLC



Built-in 3x100KHz pulse input output.

Supporing extend 8pcs special function module.

16/16, 32/32

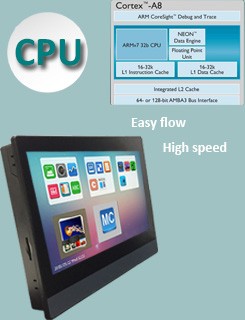

Multi-touch Capacitive HMI

7'', 9.7'', 15'', 17'' 22'', 23''

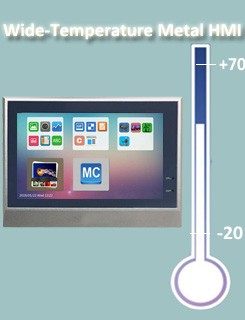

Wide-temperature Resistive HMI

4.3'', 7'', 9.7''10.4'', 12.1'', 15''

Plastic Resistive HMI

4.3'', 7'', 9.7''

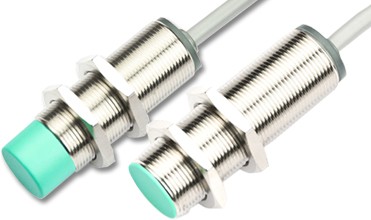

Mochuan Position Sensor Switch

More than 30,000 designs of position sensor switch.

Inductive proximity switch, capacitive proximity switch

Photoelectric sensor swtich


φ4, φ5, φ6, M5, M8, M12, M18, M30

Square, combined, cylinder type

Supporting sample purchase, OME&ODM
