It is the utilization of technology that contributes to the high-efficiency manufacturing of the product. In the field(s) of PLC, PAC, & Dedicated Controllers , it is highly accepted and widely used. The use of the technology contributes to the perfect manufacturing of MOCHUAN.RS485 best cheap blow molding controller plc hmi is widely used in the field(s) of PLC, PAC, & Dedicated Controllers and the like. In the future,Wuxi Mochuan Drives Technology Co.,Ltd will continue to introduce outstanding talents and learn advanced technology, win the initiative in market competition, and clear road obstacles to achieve the goal of becoming a world-class enterprise.

Place of Origin:Jiangsu, ChinaBrand Name:Mochuan
Model Number:MU2H-1616MTInput/Output:16/16
Votage Rating:AC85~264VInterface Type:RS485/CAN/RS232
Output Type:relay output plcSoftware:free
MOQ:NO MOQ

Pay Attention
Certificate
Certificate Number
1105217
Origanization
EC DECLARATION OF CONFORMITY
Declare the product
Date & Time
02/06/2011
Test Standard
EN60950-1:2006+A11:2009
Certificate for
EC Low Voltage
Our Advantage
Product Description

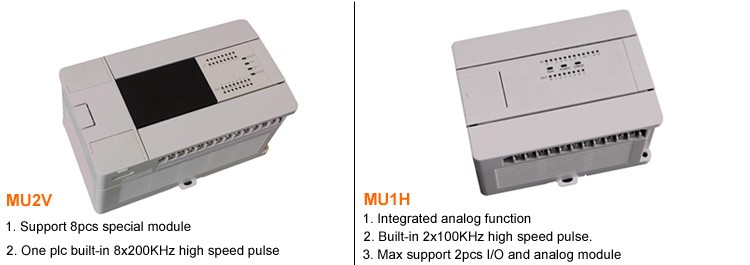

MU2V
MU2H
MU1H
I/O Point
16/16, 28/28
16/16, 32/32
08/06, 12/08, 16/10, 16/14, 36/24
Max Logical I/O
512
512
512
Max Special Function Module
8
8
2 I/O and analog module
Program Capacity
32K
24K
12K
Pulse output
8x200KHz
4differential output
3x100KHz( transistor output)
2x100KHz( transistor output, relay input)
One-phase Counting Channel
8x200KHz
2*50KHz, 4x10KHz
Two-phase Counting Channel
4x200KHz
1x25KHz, 2x5KHz
1x20KHz, 2x10KHz
Sum of Counter Frequency
800KHz
100KHz
80KHz
PLC N:N
support
RTC
support(power down keeping at least 3years)
Constant Sanning Mode
support
Digital Filter
0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature
Description
Programming Software
Free MCprogrammer
Program Security
download, upload, program password
Programming Language
ladder, instruction, SFC
Communication Protocol
programming protocol, Modbus, CAN and free port, MXLink
Expansion Module
I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et
For more data of three series, please contact us.
MU2H Main Models:
Model
I/O
Input Point
Ouput Point
Type
CAN Card
Dimension
MU2H-1616MR/MR-CAN
32
16
16
relay
support
158*90*83
MU2H-1616MT
32
16
16
transistor
-
MU2H-3232MR/MR-CAN
64
32
32
relay
support
226*90*83
MU2H-3232MT
64
32
32
transistor
-
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module.
Feature

Multi Axis Control: MU2H series PLC supports Max 8pcs MU2H-PG(applied to muti axis control) or MU2H-2HC( applied to strong interference working envrionment) module. And main module( transistor) support 3road indepedent Max 100KHz pulse with PT0 and PWM modes.

Digital Filer Function: all input terminals of main model and extended module support digital filter function. Filterring time could be configured through software supporting 0.8ms, 1.6ms, 3.2ms, 6.4ms, 12.7ms, 51.2ms.

Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.

Super Extension System: MU2H series PLC Max extend up to 512points and 8pieces of special function module.

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.
