  • Products Details

Buyers have always reached the best quality providing and reliable dc24v CE pump control 4-wire rs485 rs232 7 inch touch lcd panel industrial manufacturers. dc24v CE pump control 4-wire rs485 rs232 7 inch touch lcd panel industrial is of high quality and moderate price, so you can buy with confidence. Guided by market forces,Wuxi Mochuan Drives Technology Co.,Ltd will use a comprehensive range of measures to enhance our strength. For example, we will invest heavily in the R&D project and keep developing new products so as to lead the market trend.

Warranty(Year):3-YearColor:Black
Package:YesSeries:For Business
Aspect Ratio:16:9After-sales Service:Others
Products Status:New, StockType:Resistive
Interface Type:Serial, usbBrand Name:MOCHUAN
Place of Origin:Jiangsu, ChinaCPU:600MHz ARM
Resolution:800X480Brightness:300cd/m2
LCD working life:50000 hoursWorking temperature:0-50℃
COM Port:COM1:RS232/485/422; COM3:RS232MOQ:NO MOQ

Pay Attention

Mochuan Warranty

Mochuan Keep words,
1. NO MOQ, 1pcs is ok.
2.We offer 36months warranty for all HMI.
3. Offering free software, Demo to help customer understand the technology problem.
4. Multi-touch Capacitive HMI with ethernet 7'', ethernet 9.7'', ethernet 17'', ethernet 22'', ethernet 32''.
5. Plastic shell 4wire economic HMI with 4.3'', 7'', ethernet 7'', 9.7'', ethernet 9.7'', 15.6inch hmi
6. Metal shell -20°C ~+70°C wide-temperature HMI with ethernet 4.3'', 7'', ehether 7'', ethernet 9.7'', ethernet 12'', ethernet
15'', ethernet 22'', ethernet 32''.
If you need, welcome contat us for price.

Mochuan supports this one by one technical support

Mochuan offers free software, demo, 36months warranty and creates a technical support group ONLY for you to fast solve your technical problem per your time through our engineer. whoever you are a new user or rich experience, but first time to use mochuan hmi that is not a problem.

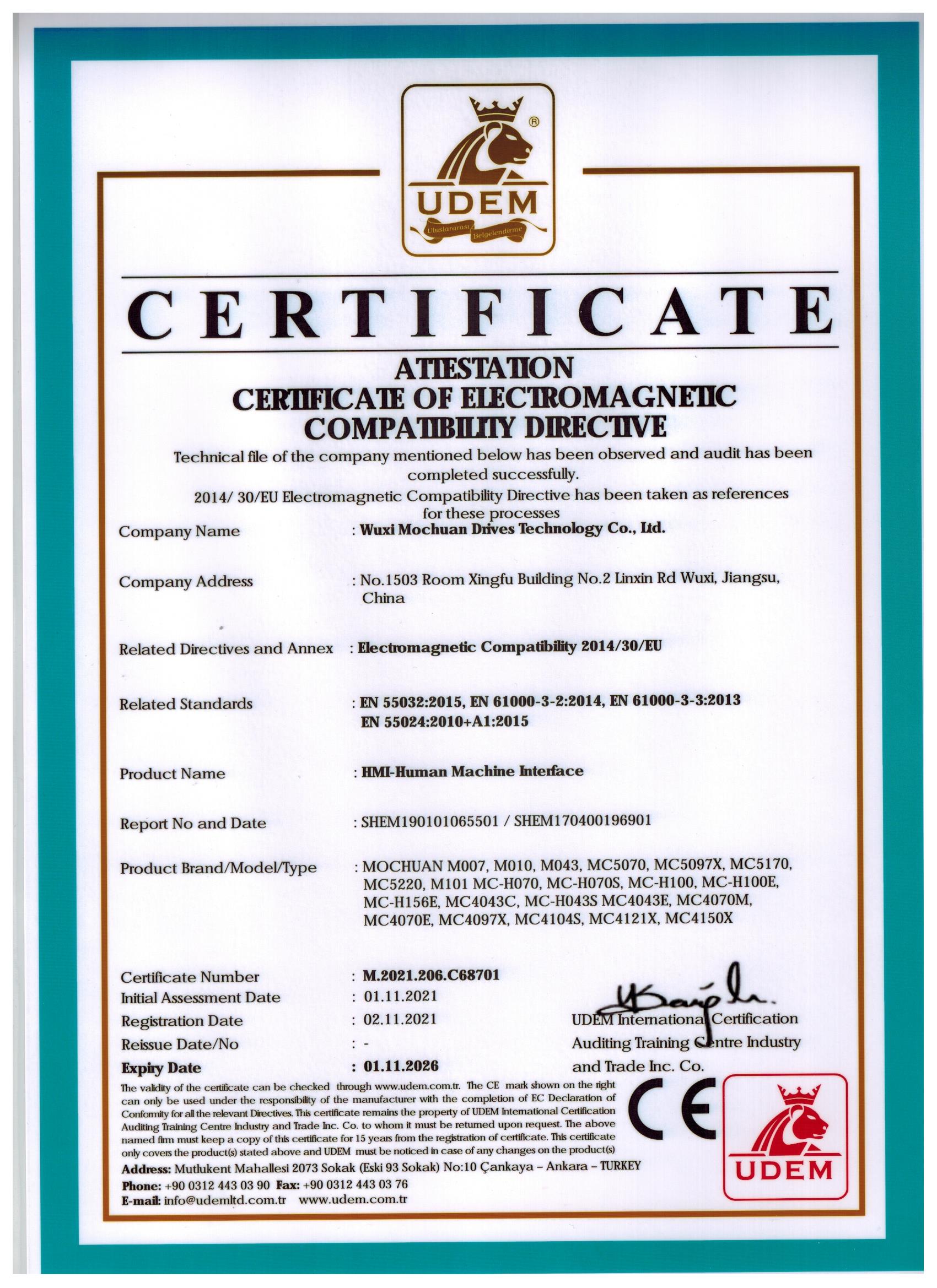

Certificate
Test Report No.
M.2021.206.C68701
Origanization
UDEM
Type
Date & Time
02.11.2021
Test Standard
EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015
Certificate for
EMC
Our Advantage
HMI & Feature
MC-H043S
MC-H070
MC-H070S
MC-H100
MC-H100E
MC-H156E
Programming software
Mochuanstudio
Mochuanstudio
Compatible Labtop OS
Win7/ Win10/ Win XP
Win7/10/XP
CPU
600MH ARM Cortex-A8
1G ARM Cortex-A8
Touch scree
4 wire resistive touch screen
4wire resistive touch screen
Screen Size
4.3'' tft lcd
7'' 16:9 tft lcd
10.1'' 16:9 tft lcd
15.6'' 16:9 tft lcd
Resolution
800x400
800x480
1024x600
1920x1080
Colors
24-bit colors
16-bits colors
Brightness
LED
LED
Backlight
50,000 hours
50,000 hours
Storage
128M Flash+128m DDR3
256M Flash+513M DDR3
SD card
N/A
N/A
support
N/A
support
TF card
USB
USB Host2.0x1; USB Device 2.0x1
USB host2.0x1; USB device 2.0x1
Ethernet
N/A
N/A
1x10/100M
N/A
1x10/100M
2x10/10M
Serial Port
COM1:RS232/485/422
COM3:RS232
COM1/COM3:RS232/485/422
COM2:RS485
COM1:RS232/485/422
COM3:RS232
COM1/COM3:RS232/485/422
COM2:RS485
COM1:RS232/RS485/RS422; COM2:RS485
COM3:RS232
Working Power
DC24V, supporting working range: DC9V~28V
DC24V, DC18V~28V
Power Consumption
<5W
<10W
<18W
Power Down Allowed
<5mS
<5mS
Working Temperate
0~50℃
0~50℃
Storage Temperate
-20~60℃
-20~60℃
Operating Humidity
10~90% RH( No condensation)
10~90% RH(No condensation)
Vibration Endurance
10~25Hz( X/Y/Z 2G/30Min)
10~25Hz(X/Y/Z 2G/30Min)
Portection Level
Front IP65( with NEMA panel), Back IP20
Front IP65, Back IP20
Cooling
Natural air cooling
Natural air cooling
Material
ABS
Aluminum alloy
Panel cutout(mm)
120x93
192x138
261x180
380x245mm or VESA install
Dimension(mm)
128x102x32
204x145x33.8
274x193x36.2
394x256x36mm
Weight(g)
500g
560g
890g
920g
2250g

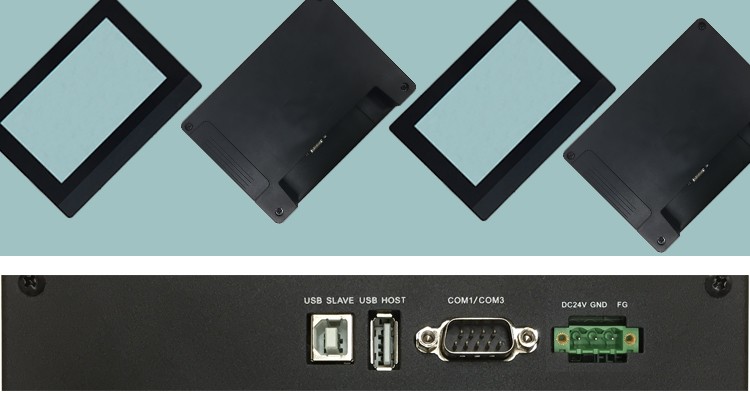

Terminal of MC6070C: with COM1:RS232/RS485/RS422 and COM3:RS232

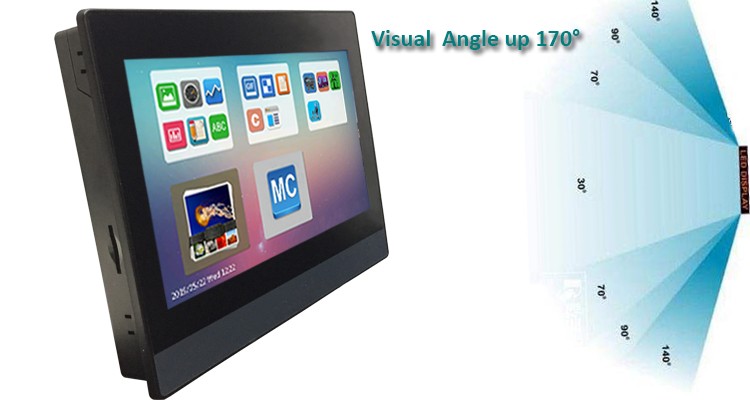

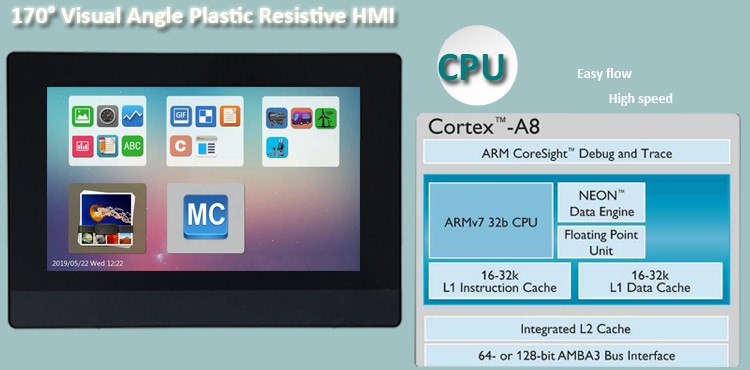

Visual Angle:  wide angle with 50'/70'/70'/70', up to 170°

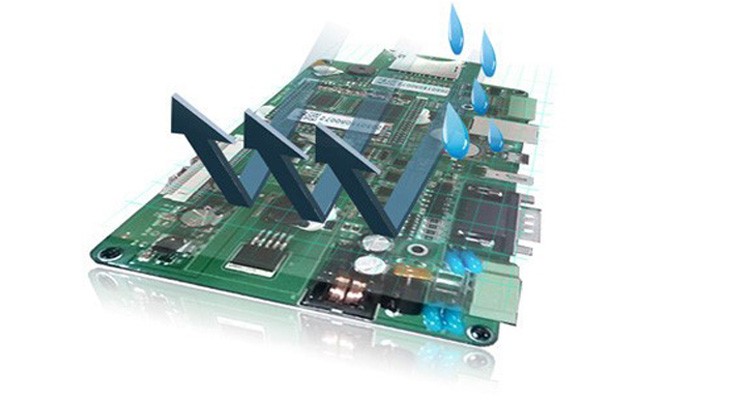

PCB Coating Protection: ehance the strengh of damp proof, corrision resistance in harsh environment, including three anti-panit, and isolated power supply.

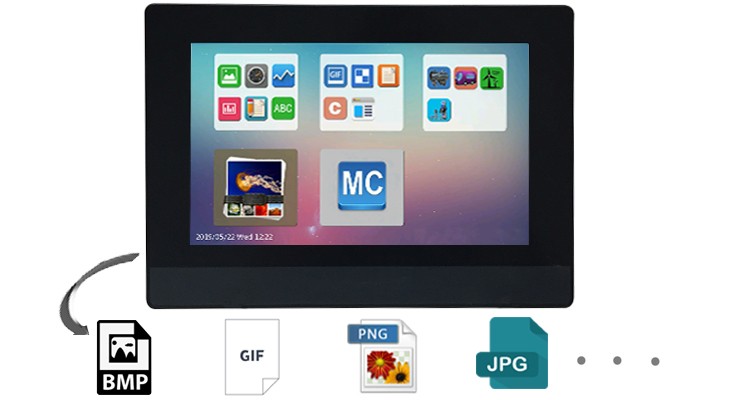

Multi-format picture: supporting to output BMP, GIP, PNG, JPG...etc multi format.

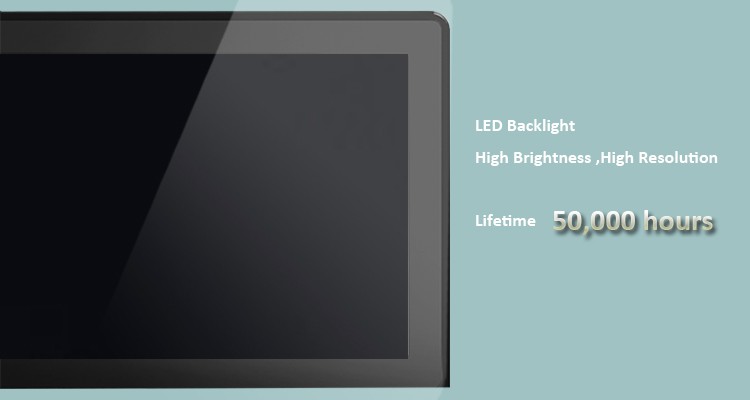

LCD lifetime: led backlight, high brightness, high resolution, LCD have more than 50,000hours lifetime.

What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business  since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.


Mochuan  Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.


Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.


"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."

Related Products

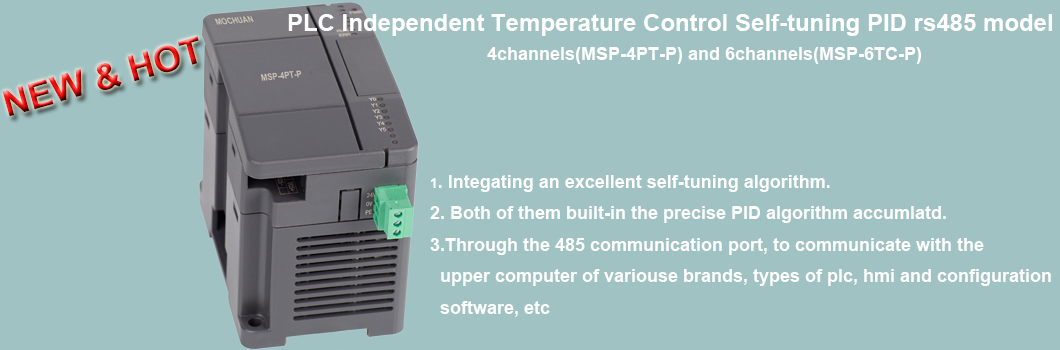

PLC Independent Temperature Control Self-tuning PID RS485 Model
1. There are two models, one is MSP-4PT-P with 4channels, the other is MSP-6TC-P with 6channels.
2. Built-in the prescise PID algorithm accumlated, it has high temperature control accuracy and overshoort suppression, strong characterics.
3. Both of them integrated an excellent self-tuning algorithm, and user can auto-tune with one button to accurately obtain PID parameters according to need.
4. Through rs485 communication port, the module can communicate with the upper computer of variouse brands, types of plc, hmi and configuration software, etc to complete more complex logic temperature control.

 Capacitive Multi-touch HMI Panel

Mochuan multi-touch capacitive hmi panel, with 7inch, 9.7inch, 17'', 22'' and 32'' available size.

1. Offering free software and available solution.

2. Supporting sample purchase and 7days refund.

3. Offering DEMO per your requirement.


Welcome contact us for more details.

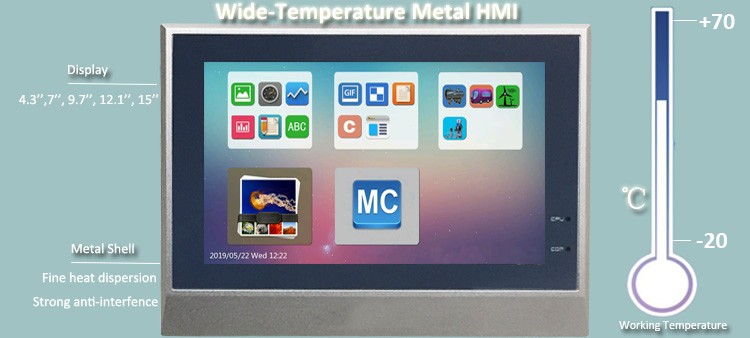

 Metal Shell resistive HMI Panel

Mochuan wide-temperature metal resistive HMI panel.

1. Available sizie 4.'', 7'', 9.7'', 12.1'' and 15''.

2. Working temperature supports from -20~70℃.

3. Supporting sample purchase and 7days refund.

4. Offering DEMO per your requirement.


Welcome contact us for its catagloue and price.

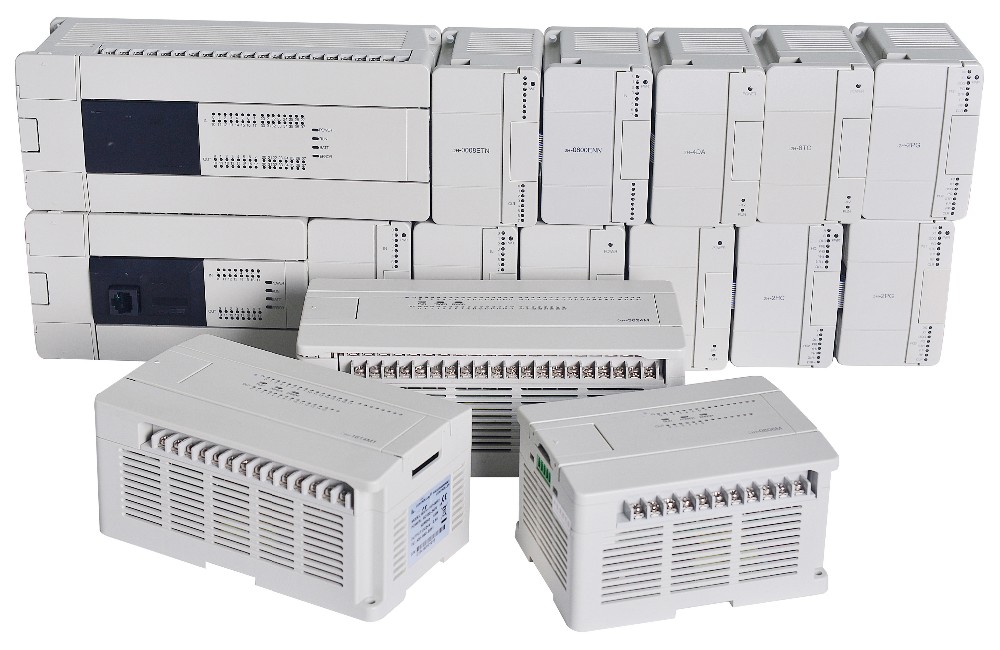

1. There are MU2V, MU2H and MU1H series.

2. Built-in 8x200KHz, 4x200KHz, 3x100KHz and 2x100KHz.

3. Multi-I/O

08/06, 12/08, 14/10, 16/14, 24/16, 36/24, 16/16, 32/32...

4. Free software and communication cable.

Supporting sample purchase and 7days refund
Welcome contact us for catagloue, software and price.

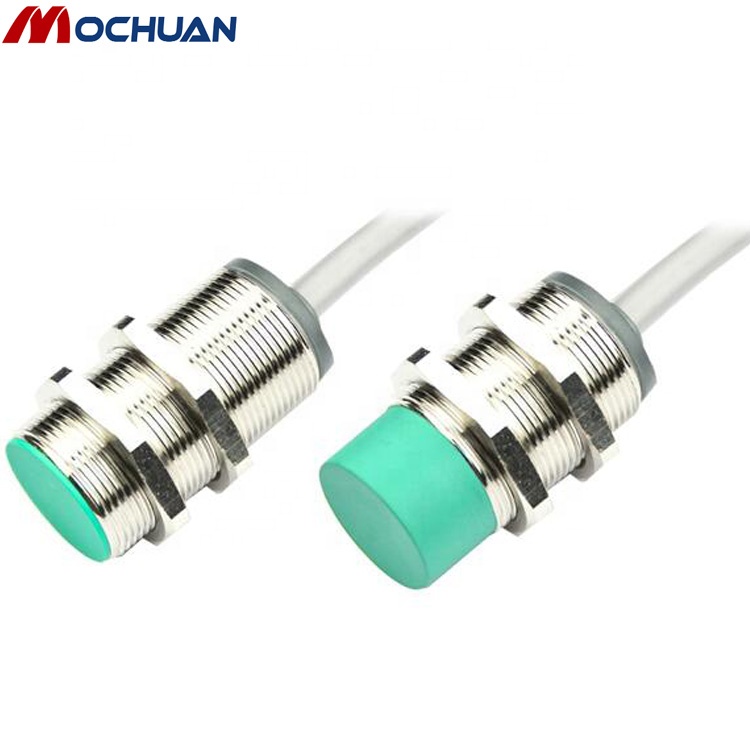

Mochuan Position Sensor Switch

More than 30,000 designs of position sensor switch.
1. Inductive, capacitive and photoelectric sensor switch type.
2. Supporing OEM & ODM.
3. NO MOQ, and offer 7days refund in caes of bad quality.

Welcome contact us for catagloue and price.
