MC-H070 Parameters
/ 7'' Resistive rs485 HMI Monitor




ModelMC-H070
Touch Screen Type4wire resistive touch screen
Color of ShellBlack
CPU600MHz ARM Cortex-A8






Display

LCD Visual Angle50'/70'/70'/70'
Screen Size7'' 16:9 tft lcd screen
Resolution800x480
Colors16 bits
Brightness350cd/m²
BackLightLED
BackLife50000 Hours


Storage

Memory128M Flash+128M DDR3
SD CardN/A
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422;  COM3:RS232
EthernetN/A
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialEngineering Plastic
Dimension(mm)204mm x 145mm x33.8mm
Panel Cutout(mm)192mm x 138mm
Weight(g)310g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate0°C~50°C
Temperature Storage-20°C~60°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU,)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC-H070 7Inch Clearness, High Brightness, High advantage competitive

Mochuan 7inch MC-H070, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.


More Features
/ 7'' MC-H070 RS485 HMI





Supporting Animation Formats
7inch Mochuan HMI support to output BMP, PNG, JPG and GIF animation leading and playing..etc various format. Cortex-A8 600MHz process, high speed and easy folw. 16bits colors, IPS TFT LCD, high quality image showing, true color.  GIF format can store multiple color images, if the multiple image data stored in a file is read out one by one and displayed on the screen, it can constitute a kind of the simplest animation. mall size, ideal for use in web pages, can create animations.



Full View HD, High Brightness
7inch MC-H070 adpots high-definition, high-brightness display LCD, 7-inch support 1024x600 resolution, the maximum viewing angle of 170°,to bring customers a better sensory experience. The liquid crystal viewing angle is 50'/70'/70'/70' to bring a good visual experience to user.


Strong Environmental Adaptability
HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, no matter it is a wet underground mine, high temperature gobi or factory environment with corrosive gas, oil mist or dust, it can easily cope with its ease, to various harsh environment. The three-proof varnish is applied to printed circuit boards and components when they may be affected by adverse operating environments. It can reduce or eliminate the degradation of electronic operation when it may be affected by adverse operating environment. The purpose of the coating is considered to be achieved if the coating can be maintained for a satisfactory period of time, such as longer than the product's service life. Even if the coating layer is very thin, it can withstand mechanical vibration and oscillation, thermal shock, and operation at high temperatures to a certain extent. and operation under high temperature.
Strong Anti-Interference
The design has fully considered the complex electromagnetic compatibility environment of industrial sites, in line with IEC standards, while the wide voltage input design, power fluctuations can still be used safely. 2 serial port support rs485, rs232 and rs422.

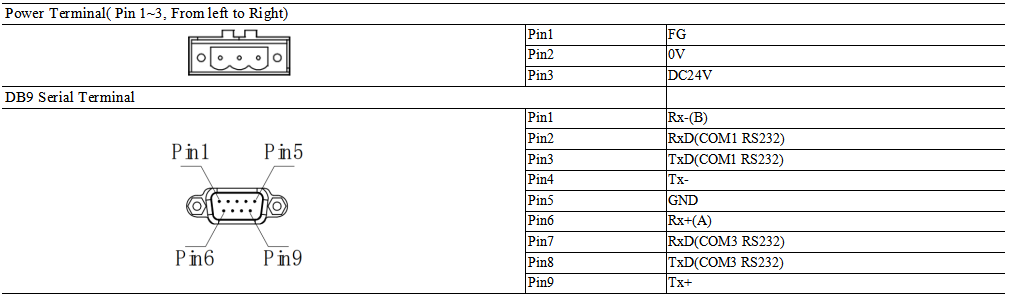

MC-H070 Ports Description
/ MC-H070 HMI





si
