| Warranty: | 3months-1year | Place of Origin: | JIANGSU |
| Brand Name: | MOCHUAN | Model Number: | MC-CRJM-80 |
| Usage: | For robots | Type: | SERVO MOTOR |
| Torque: | 1.59Nm, 1.59Nm | Construction: | Permanent Magnet |
| Protect Feature: | Drip-proof | Speed(RPM): | 3000RPM |
| Continuous Current(A): | 13.28A | Efficiency: | IE4 |
| Motor Type: | collaborative robot joint motor split torque motor | Diameter: | 80mm |
| Drive voltage: | 48VDC | MOQ: | NO MOQ, 1pcs is ok |
| Service: | Supporting OEM diameter, color, shape, parameter...etc | Application: | for robot |

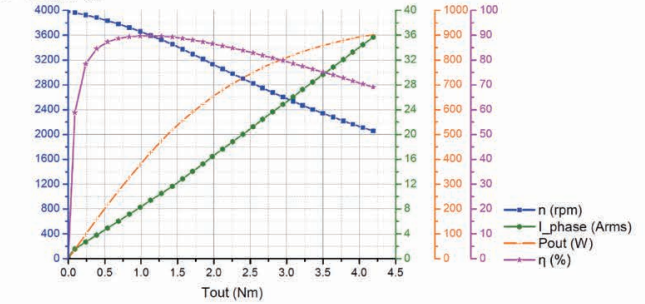

Parameter | Unit | Value |
Driver supply voltage Udc | V | 48 |
Rated Power Pn | W | 499 |
Rated Speed Nn | rpm | 3000 |
Rated Frequency fn | Hz | 250 |
Rated Torque Tn | Nm | 1.59 |
Rated Current In | Arms | 13.28 |
No-load Speed no | rpm | 4011 |
Instantaneous maximum torque T | Nm | 4.77 |
Instantaneous maximum Current In | Arms | 39.85 |
Line Back EMF Coefficient | Vrms/krpm | supporting cusomized±10% |
Torque factor KT | Nm/Arms | 0.12±10% |
Line resistance RI | Ω@20°C | 0.170±10% |
Line inductance LI | mH@1KHz | 0.68±20% |
Insulation class | B | |
position feedback device | N/A |
