    MOCHUAN | Wholesale ac torque motor manufacturers

    Our ac torque motor are widely recognized and trusted by users and can meet continuously developing economic and social needs.
    SEND INQUIRY NOW
    Products Details

    Relying on advanced technology, excellent production capabilities, and perfect service, MOCHUAN takes the lead in the industry now and spreads our MOCHUAN all over the world. Together with our products, our services are also supplied to be the highest-level. ac torque motor We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product ac torque motor or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.MOCHUAN is carefully designed by our professionals.



    Technical Parameter/ 80Flange 750W


    Parameter
    Unit
    Value
    		Mark
    Driver supply voltage U
    VDC
    48

    Rated Power Pn
    W
    750

    Rated Speed nn
    rpm
    3000

    Rated Torque Tn
    Nm
    2.38

    Rated Current In
    A rms
    27.17
    		Calculation of theoretical values
    No-load speed n0
    rpm
    5410
    		pwm 100% fully open sine wave drive method
    Line counter potential factor Ke
    Vrms/krpm
    5.95
    		±10%
    Torque factor Kt
    Nm/Arms
    0.088
    		±10%, For line current RMS
    Line resistance RI
    mΩ@20°C
    43
    		 ±10%, With lead wire resistance
    Line inductance LI
    mH@1KHz
    0.18
    		 ±20%, Average
    Insulation class
    B
    		155 degree enamelled wire
    Position feedback device
    2500wire magnetic encoder

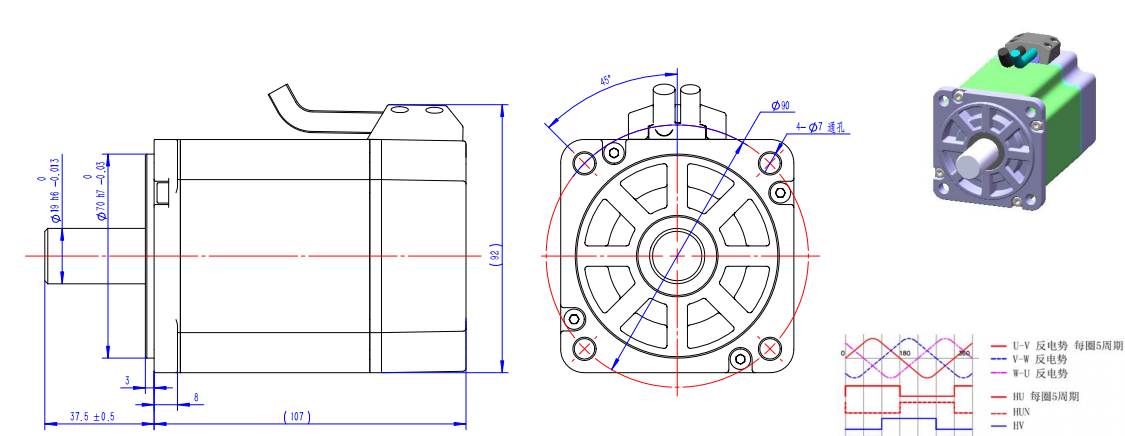

    Drawings
    / SUBTITLE




    FAQ

    1. who are we?
    Mochuan Drives is one manufacturer and engineering company in HMI touchscreen panel, plc controller and customized all kinds of permanent magnet motor, including ac&dc power, standard and non-standard.

    2. how can we guarantee quality?
    Offering 36months warranty. Supporting 7days refund in any quality problem.

    3.what can you buy from us?
    HMI touchscreen panel, plc programmable logic controller and standard, non-standard permanent magnet motor; supporting OEM&ODM.

    4. why should you buy from us not from other suppliers?
    At first, Mochuan supports technical one-to-one service, which, creating a technical supporting group only for you to fast solve the problem per your time.
    Second, supporting 7days refund in case of bad quality.
    Finaly, Sign international contract, with us your PAYMENT and Business are in safe.

    5. what services can we provide?
    One-to-one Technical supporting, OEM&ODM and 7days refund. That is service do you wanna?
