To achieve the stable performance of the MOCHUAN, high-quality reliable raw materials are used. China free software resistive 7" modbus hmi human machine interface panel Plastic Shell Economic Resistive HMI Panel has all the superior performance of those raw materials such as durability and stability. In summary, hmi human machiine interface, plc programmable logic controller, standard and non-standard customized permanent magnet motor has the excellent characteristics. Once it is applied in the industries, its great role will be fully played out.
After months of furious yet meaningful development work, Wuxi Mochuan Drives Technology Co.,Ltd has made it a great success to work out China free software resistive 7" modbus hmi human macnine interface panel. The product is supplied with multiple features and a broad range of applications. High-end technologies are adopted to manufacture the product.When the product is manufactured and used in the field(s) of Human Machine Interfaces & Industrial PCs, its stability and advantages can be fully played out. Influenced by the market trends and customers' requirements, the design of hmi human machiine interface, plc programmable logic controller, standard and non-standard customized permanent magnet motor is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.
| Place of Origin: | Jiangsu, China | Brand Name: | MOCHUAN |
| Model Number: | 7 Inch HMI MC-H070S | Network: | ethernet |
| Size: | 7, 7'' 16:9 tft lcd screen | Brightness: | 350cd/m2 |
| Resolution: | 1024*600 | Warranty: | 36months |
| communication port: | COM1:RS232,RS485,RS422/COM3:RS232/ Ethernet | Software: | free |
| Ethernet: | support | communication method: | Modbus/modbus tcp |
Test Report No. | SHEM150900340401TXC |
Origanization | SGS |
Type | |
Date & Time | 10/25/2015 |
Test Standard | EN61000-6-4:2007+A1:2001 EN61000-6-2:2005 |
Certificate for | EMC |
MC4043C | MC-H070 | MC-H070S | MC-H100 | MC-H100E | MC-H156E | |||||
Programming software | Mochuanstudio | Mochuanstudio | ||||||||
Compatible Labtop OS | Win7/ Win10/ Win XP | Win7/10/XP | ||||||||
CPU | 600MH ARM Cortex-A8 | 1G ARM Cortex-A8 | ||||||||
Touch scree | 4 wire resistive touch screen | 4wire resistive touch screen | ||||||||
Screen Size | 4.3'' tft lcd | 7'' 16:9 tft lcd | 10.1'' 16:9 tft lcd | 15.6'' 16:9 tft lcd | ||||||
Resolution | 480x272 | 800x480 | 1024x600 | 1920x1080 | ||||||
Colors | 24-bit colors | 16-bits colors | ||||||||
Brightness | LED | LED | ||||||||
Backlight | 50,000 hours | 50,000 hours | ||||||||
Storage | 128M Flash+128m DDR3 | 256M Flash+513M DDR3 | ||||||||
SD card | N/A | N/A | support | N/A | support | TF card | ||||
USB | USB Host2.0x1; USB Device 2.0x1 | USB host2.0x1; USB device 2.0x1 | ||||||||
Ethernet | N/A | N/A | 1x10/100M | N/A | 1x10/100M | 2x10/10M | ||||
Serial Port | COM1:RS232/485/422 COM3:RS232 | COM1/COM3:RS232/485/422 COM2:RS485 | COM1:RS232/485/422 COM3:RS232 | COM1/COM3:RS232/485/422 COM2:RS485 | COM1:RS232/RS485/RS422; COM2:RS485 COM3:RS232 | |||||
Working Power | DC24V, supporting working range: DC9V~28V | DC24V, DC18V~28V | ||||||||
Power Consumption | <5W | <10W | <18W | |||||||
Power Down Allowed | <5mS | <5mS | ||||||||
Working Temperate | 0~50℃ | 0~50℃ | ||||||||
Storage Temperate | -20~60℃ | -20~60℃ | ||||||||
Operating Humidity | 10~90% RH( No condensation) | 10~90% RH(No condensation) | ||||||||
Vibration Endurance | 10~25Hz( X/Y/Z 2G/30Min) | 10~25Hz(X/Y/Z 2G/30Min) | ||||||||
Portection Level | Front IP65( with NEMA panel), Back IP20 | Front IP65, Back IP20 | ||||||||
Cooling | Natural air cooling | Natural air cooling | ||||||||
Material | ABS | Aluminum alloy | ||||||||
Panel cutout(mm) | 120x93 | 192x138 | 261x180 | 380x245mm or VESA install | ||||||
Dimension(mm) | 128x102x32 | 204x145x33.8 | 274x193x36.2 | 394x256x36mm | ||||||
Weight(g) | 500g | 560g | 890g | 920g | 2250g | |||||

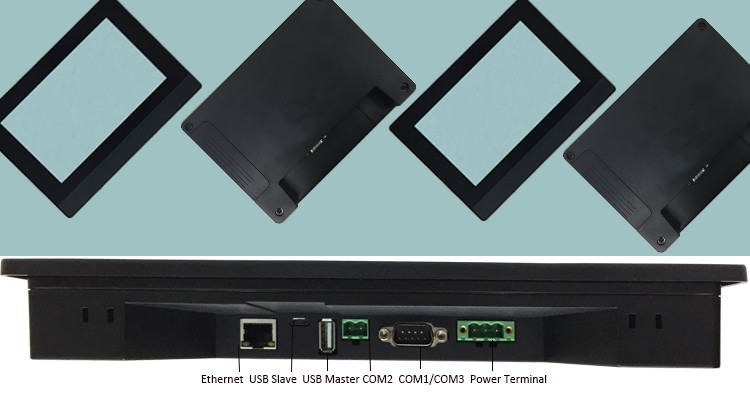

Terminal of New Black tft lcd Panel MC-H070S: with COM1:RS232/RS485/RS422, COM2:RS485; COM3:RS232
Visual Angle: wide angle with 50'/70'/70'/70', up to 170°
PCB Coating Protection: ehance the strengh of damp proof, corrision resistance in harsh environment, including three anti-panit, and isolated power supply.
Multi-format picture: supporting to output BMP, GIP, PNG, JPG...etc multi format.
LCD lifetime: led backlight, high brightness, high resolution, LCD have more than 50,000hours lifetime.
With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
Mochuan lcd touch screen, lcd display panel, industrial monitor panel multi-touch capacitive hmi panel, with 7inch, 9.7inch, 17'', 22'' and 32'' available size.
1. Offering free software and available solution.
2. Supporting sample purchase and 7days refund.
3. Offering DEMO per your requirement.
Welcome contact us for more details.
Mochuan wide-temperature metal resistive HMI panel.
1. Available sizie 4.'', 7'', 9.7'', 12.1'' and 15''.
2. Working temperature supports from -20~70℃.
3. Supporting sample purchase and 7days refund.
4. Offering DEMO per your requirement.
Welcome contact us for its catagloue and price.
1. There are MU2V, MU2H and MU1H series.
2. Built-in 8x200KHz, 4x200KHz, 3x100KHz and 2x100KHz.
3. Multi-I/O
08/06, 12/08, 14/10, 16/14, 24/16, 36/24, 16/16, 32/32...
4. Free software and communication cable.
Supporting sample purchase and 7days refund
Welcome contact us for catagloue, software and price.
More than 30,000 designs of position sensor switch.
1. Inductive, capacitive and photoelectric sensor switch type.
2. Supporing OEM & ODM.
3. NO MOQ, and offer 7days refund in caes of bad quality.
Welcome contact us for catagloue and price.
