WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC-H070SW Parameters
/ 7'' Resistive rs485 ethernet HMI Monitor




ModelMC-H070SW
Touch Screen Type4wire resistive touch screen
Color of ShellWhite
CPU600MHz ARM Cortex-A8






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size7'' 16:9 tft lcd screen
Resolution1024x600
Colors24bits
Brightness350cd/m²
BackLightLED
BackLife50000 Hours


Storage

Memory128M Flash+128M DDR3
SD CardN/A
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422;  COM2:RS485; COM3:RS232
Ethernet1X10M/100M Self-adaption
Download ProjectUSB Disk/ USB Device/Ethernet





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialEngineering Plastic
Dimension(mm)204mm x 145mm x33.8mm
Panel Cutout(mm)192mm x 138mm
Weight(g)310g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate0°C~50°C
Temperature Storage-20°C~60°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU,)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

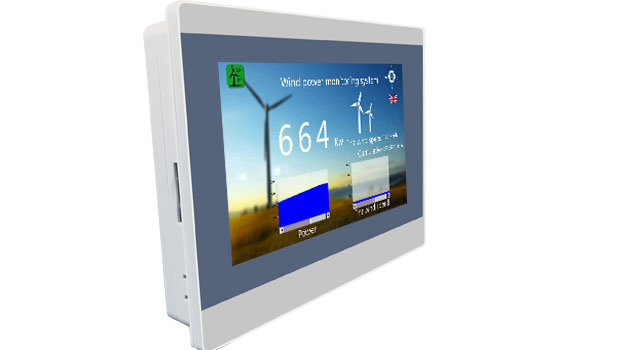

MC-H070SW 7Inch Clearness, High Brightness, High advantage competitive

Mochuan 7inch MC-H070, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.


More Features
/ 7'' MC-H070SW RS485 HMI





Supporting Animation Formats
7inch Mochuan HMI support to output BMP, PNG, JPG and GIF animation leading and playing..etc various format. Cortex-A8 600MHz process, high speed and easy folw. 16bits colors, IPS TFT LCD, high quality image showing, true color.



Full View HD, High Brightness
7inch MC-H070SW adpots high-definition, high-brightness display LCD, 7-inch support 1024x600 resolution, the maximum viewing angle of 170°,to bring customers a better sensory experience. The liquid crystal viewing angle is 50'/70'/70'/70' to bring a good visual experience to user.


Strong Environmental Adaptability
HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, no matter it is a wet underground mine, high temperature gobi or factory environment with corrosive gas, oil mist or dust, it can easily cope with its ease, to various harsh environment.
Strong Anti-Interference
The design has fully considered the complex electromagnetic compatibility environment of industrial sites, in line with IEC standards, while the wide voltage input design, power fluctuations can still be used safely. 2 serial port support rs485, rs232 and rs422.

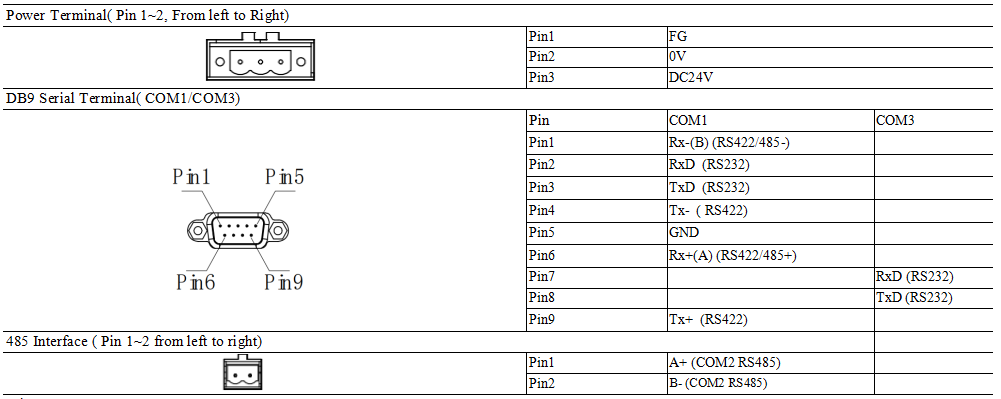

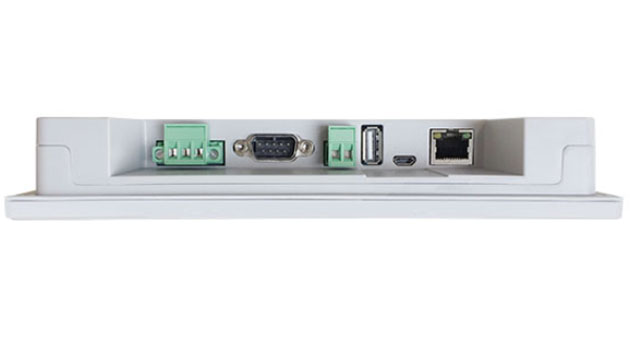

MC-H070SW Ports Description
/ MC-H070SW HMI





si
Related Products
/ Mochuan HMI




Capacitive Multi-Touch HMI

7inch M007

9.7inch M010

9.7inch MC5097X

17inch MC5170

22inch MC5220


Plastic Economic Resistive HMI

4.3inch MC-H043S

7inch MC-H070/ MC-H070W

7inch MC-H070S/MC-H070SW

10.1inch MC-H100/MC-H100W/MC-H100D

10.1inch MC-H100E/MC-H100EW/MC-H100DE

15.6inch MC-H156E

Metal Shell Wide-Temperature Resistive HMI

4.3inch MC4043E

7inch MC4070M

7inch MC4070E

9.7inch MC4097X

12.1inch MC4121X

15inch MC4150X




Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;


Feature:

New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;


Material of Shell: ABS


Feature:

7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;




Material of Shell:  Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.


Feature:

Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;

FAQ
/ MOCHUAN HMI



1. Is the HMI software free or to charge?
Mochuan HMI Software Mochuanstudio is free for the user.  You can take from"download-software" if you need.


2. What is guarantee do you offer?

7days refund in case any bad quality; And 36months warranty.


3. What technical support do you offer?

Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.


4. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.


5. Is there any service, if swtich another brand hmi to be Mochuan's?

Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.


6. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
