|Touch Screen Type||4wire resistive touch screen |
|Color of Shell||White|
|CPU||600MHz ARM Cortex-A8|
|LCD Visual Angle||85'/85'/85'/85'|
|Screen Size||10.1'' 16:9 tft lcd screen|
|Memory||128M Flash+128M DDR3|

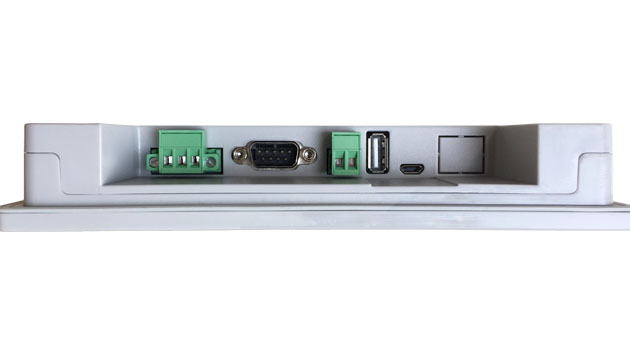

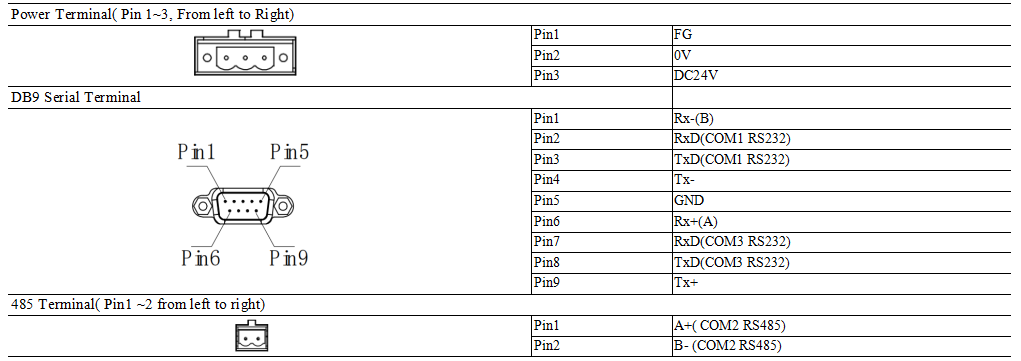

|Serial Port||COM1:RS232/RS485/RS422; COM3:RS232|
|Download Project||USB Disk/ USB Device|
|Power Supply||DC24V, Working Range: DC9V~DC28V|
|Power Protection||Protected From Thunder Strike And Surging|
|Operating Humidity||10~90% RH( No Condensation)|
|Vibration Endurance||10~25HZ (X,Y,Z 2G/30Min)|
|Shell Material||Engineering Plastic|
|Dimension(mm)||273mm x 231mm x36mm|
|Panel Cutout(mm)||260mm x 202mm|
|Protection||Front IP65( with NEMA panel), Back IP20|
|Communication Protocol||Standard Modbus( RTU,)|
|Programming Software||Free Mochuanstudio 2.8.11490.0|
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
MC-H100W 10.1Inch 1024x600 Clearness, High Brightness, High advantage competitive
Mochuan 10.1inch MC-H100W, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.

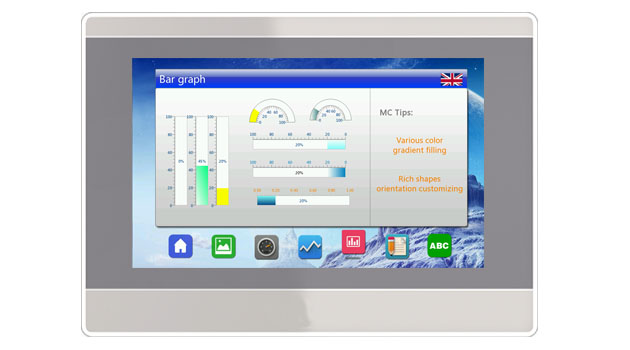

Supporting Animation Formats
10.1inch Mochuan HMI support to output BMP, PNG, JPG and GIF animation leading and playing..etc various format. Cortex-A8 600MHz process, high speed and easy folw. 16bits colors, IPS TFT LCD, high quality image showing, true color.
Full View HD, High Brightness
7inch MC-H070W white color shell adpots high-definition, high-brightness display LCD, 7-inch support 1024x600 resolution, the maximum viewing angle of 170°，to bring customers a better sensory experience. The liquid crystal viewing angle is 85'/85'/85'/85' to bring a good visual experience to user. Compared with ordinary LCD monitors, widescreen LCD has a better visual effect, you can experience a wider visual realm, 16:9 or 16:10 picture ratio. Widescreen can play two pages side by side, eliminating the trouble of window switching
Strong Environmental Adaptability
HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, no matter it is a wet underground mine, high temperature gobi or factory environment with corrosive gas, oil mist or dust, it can easily cope with its ease, to various harsh environment.
The design has fully considered the complex electromagnetic compatibility environment of industrial sites, in line with IEC standards, while the wide voltage input design, power fluctuations can still be used safely. 2 serial port support rs485, rs232 and rs422.
Capacitive Multi-Touch HMI
Plastic Economic Resistive HMI
7inch MC-H070/ MC-H070W
Metal Shell Wide-Temperature Resistive HMI
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Material of Shell: ABS
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Material of Shell: Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charge?
Mochuan HMI software Mochuanstuido is free for the user. You can take from" download-software" if you need.
2. What is guarantee of resistive HMI panel do you offer?
7days refund in case of any bad quality, and 36months warranty.
3. What technical of HMI do you support?
Offering demo, pdf description file, video and technicla supporting one to one online, through creating only online group for you, to fast solve the technical, if work with us.
4. Is there any suggestion on selecting model of HMI panel?
Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model hmifor the project", trusting it will be some helpful on selecting hmi model and type.
5. Is there any service, if switch another brand to be Mochuan's?
Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.
6. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
