HMI Panel Machine Interface 4.3 Inch HMI Touch Screen Monitor MC-H043S

4.3 Inch HMI Touch Screen RS485 Lcd HMI Display Monitor MC-H043S

Best 4.3 Inch Industrial HMI Panel Modbus HMI Touch Display MC-H043S

MOCHUAN - 17" waterproof industrial capacitive touch screen panel, touch screen monitor Ungrouped

MOCHUAN - ip65 modbus rs485 cheap low cost 4.3'' plc hmi price Modbus RTU RS485

MOCHUAN - ip65 modbus rs485 cheap low cost 4.3'' plc hmi price Modbus RTU RS485

Name: MOCHUAN - ip65 modbus rs485 cheap low cost 4.3'' plc hmi price Modbus RTU RS485
Uploaded: 2022-08-19T18:14:41+08:00
Duration: 22 s
Description: ip65 modbus rs485 cheap low cost 4.3'' plc hmi price can be produced in varied specifications to cater to different needs of customers,which has a vast variety of application.Besides,it adheres to concise structure and high quality is the design principle.

ip65 modbus rs485 cheap low cost 4.3'' plc hmi price can be produced in varied specifications to cater to different needs of customers,which has a vast variety of application.Besides,it adheres to concise structure and high quality is the design principle.

SEND INQUIRY NOW

Type:: LCD

shipping:: Express Sea freight · Land freight · Air freight

Model Number:: MC-H043S

Screen Size:: 4.3''

Ethernet:: N/A

samples:: NO MOQ, 1PCS IS OK

Screen Type:: Resistive

Brightness:: 800X480

Voltage(V):: 24VDC

CPU:: 600MHz ARM

Color:: White

COM Port:: COM1, COM3,RS232,RS485, RS422

SEND INQUIRY NOW

Product Details

WHY MOCHUAN HMI

1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;

MARKET BRAND HMI

1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.

MC-H043S Parameter

/ 4.3'' Resistive HMI Monitor

Model	4.3Inch MC-H043S Plastic Enconomic Resistive HMI
Touch Screen Type	4wire resistive touch screen
CPU	600MHZ ARM9
Display	LCD Visual Angle	80'/80'/80'/80'
	Screen Size	4.3inch 16:9 tft lcd screen
	Resolution	800x480
	Colors	16 bits
	Brightness	250cd/m2, Max adjust 275cd/m2
	BackLight	LED
	BackLife	50000 Hours
Storage	Flash/ARM	64MHz+ 128MB Flash
	SD Card	N/A
	RTC	Built-in
Ports	Serial Port	COM1:RS232/RS485/RS422; COM3:RS232
	Ethernet	N/A
	Download Project	USB Disk/ USB Device
Power	Power Supply	DC24V, Working Range: DC9V~DC28V
	Rated Power	＜2.5W
	Power Protection	Protected From Thunder Strike And Surging
	Power Down	＜5mS
	Operating Humidity	10~90% RH( No Condensation)
	Vibration Endurance	10~25HZ (X,Y,Z 2G/30Min)
Dimension	Shell Material	Engineering Plastic
	Dimension(mm)	138mm x 86mm x 32mm
	Panel Cutout(mm)	132mm x 80mm
	Weight(g)	310g
Environment	Protection	Front IP65( with NEMA panel), Back IP20
	Temperature Operate	0°C~50°C
	Temperature Storage	-20°C~60°C
The others	Certificate	CE
	Communication Protocol	Standard Modbus( RTU, TCP/IP)
	Programming Software	Free Mochuanstudio

Deserve To Know

/ Service from Mochuan

1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

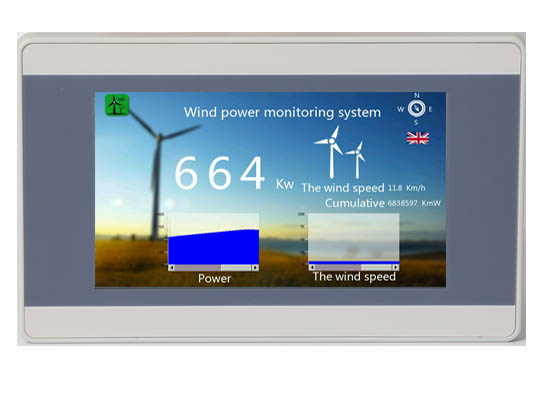

MC-H043S 4.3Inch Clearness, High Brightness, Transparen

Mochuan 4.3inch MC-H043S hmi, Light and thin, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.

More Features

/ 4.3'' MC-H043S HMI

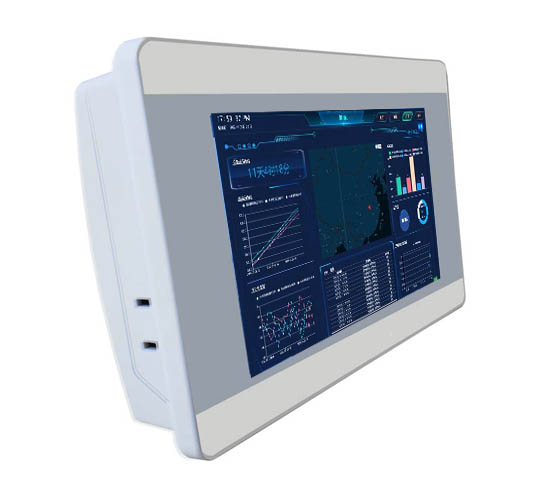

Full View HD, High Brightness

4.3inch MC-H043S adpots high-definition, high-brightness display LCD, 7-inch support 1024x600 resolution, the maximum viewing angle of 170°，to bring customers a better sensory experience. The liquid crystal viewing angle is 80'/80'/80'/80' to bring a good visual experience to user.

Mochuan HMI Supporting Animation Formats

Mochuan HMI support to output BMP, PNG, JPG and GIF animation leading and playing..etc various format. ARM9 600MHz process, high speed and easy folw. 16bits colors, IPS TFT LCD, high quality image showing, true color.

Strong Environmental Adaptability

HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, no matter it is a wet underground mine, high temperature gobi or factory environment with corrosive gas, oil mist or dust, it can easily cope with its ease, to various harsh environment.

Strong Anti-Interference

The design has fully considered the complex electromagnetic compatibility environment of industrial sites, in line with IEC standards, while the wide voltage input design, power fluctuations can still be used safely. 2 serial port support rs485, rs232 and rs422.

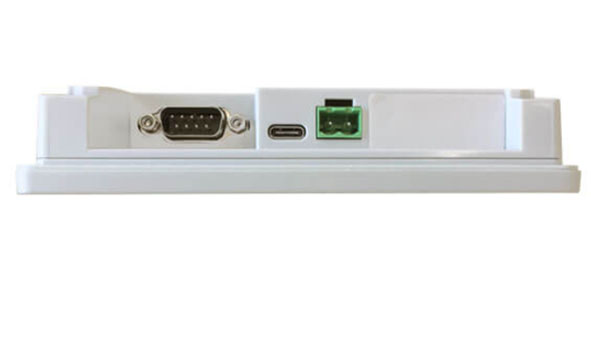

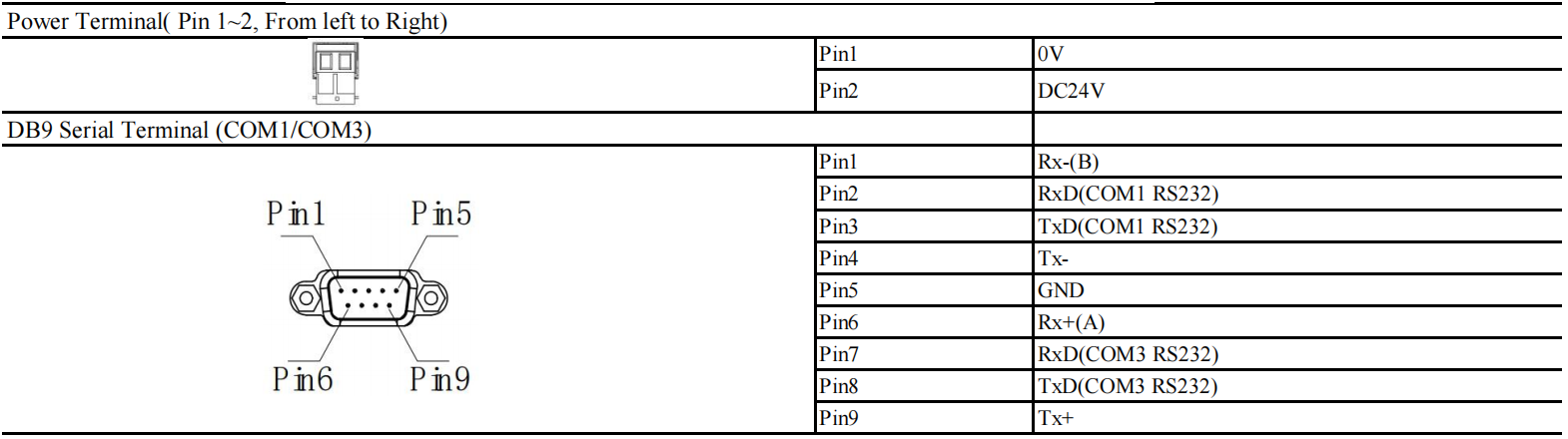

MC-H043S Ports Description

/ 4.3'' MC-H043S HMI

FAQ

/ MOCHUAN HMI

1. Is the HMI software free or to charge?
Mochuan HMI Software Mochuanstudio is free for the user. You can take from"download-software" if you need.

2. What is guarantee do you offer?

7days refund in case any bad quality; And 36months warranty.

3. What technical support do you offer?

Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.

4. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.

5. Is there any service, if swtich another brand hmi to be Mochuan's?

Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.

6. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

HMI Panel Machine Interface 4.3 Inch HMI Touch Screen Monitor MC-H043S

MOCHUAN - HMI panel human machine interface 4.3 lcd iot plchmi touch screen module monitor 4.3inch compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN - panel human machine interface 43 lcd iot plchmi touch screen module monitor 4.3inch can be customized according to your needs.The application of the technology to the product manufacturing process contributes to the stable quality guarantee of 43 lcd iot plchmi touch screen module monitor panel human machine interface.In order to add values of the product, our R&D engineers constantly upgrade and improve the product so as to expand its application ranges. At present, it can be widely seen in the field(s) of Touch Screen Monitors.
4.3 Inch HMI Touch Screen RS485 Lcd HMI Display Monitor MC-H043S

Mochuan rs485 Lcd HMI Touch Screen HMI Display Monitor 4.3 Inch MC-H043S IP65 tft compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of Mochuan rs485 Lcd HMI Touch Screen HMI Display Monitor 4.3 Inch MC-H043S IP65 tft can be customized according to your needs.MOCHUAN is so unique and high-quality that it can reflect that we strictly follow the international rules and manufacturing standards.ethernet lcd touch screen 4inch hmi 4 panel monitor touch panelhas the features that those normal similar-like products don't have. With those superiorities, it will surely stand out in the market.
Best 4.3 Inch Industrial HMI Panel Modbus HMI Touch Display MC-H043S

Mochuan 4.3 inch Industrial HMI Panel MC-H043S is a resistive HMI panel, with very beautiful on price, very high advantage competitive, but without ethernet, if rs485 rs232 rs422 is enough on communication of the project, to require small size HMI panel, highly recommend this type. It will meet the marketing of needing from the design and parameter. It is white color with engineering plastic on shell. And the software of Mochuanstudio studio is free. You can take it from "download-software"; High resolution, high brightness, 2 serial ports support rs232/rs485/rs422; 1xUSB support U disk data stroage and download; USB power supply to download programs; Plastic shell, low cost, high reliability; Professional appearance design, high value, practical downward wire out way, Mochuanstudio software, rich library, powerful functions. Supporting power free download.
MOCHUAN - 17" waterproof industrial capacitive touch screen panel, touch screen monitor Ungrouped

17" waterproof industrial capacitive touch screen panel, touch screen monitor has accumulated a lot of praise from customers, received good feedback from the market, and solved customer pain points.
