Over the years, MOCHUAN has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. hmi panel We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product hmi panel or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.Wuxi Mochuan Drives Technology Co.,Ltd has professional management and international quality control system.
| Model | 7Inch M007 Multi-Touch Capacitive HMI Panel
|
|---|
| Touch Screen Type | Glass+Glass Projective Multi-Touch |
| CPU | 600MHZ ARM Cortex-A8 + 128M Flash+128MB DDR3 |
Display | LCD Visual Angle | 70'/70'/75'/75' |
| Screen Size | 7inch 16:9 tft lcd screen |
| Resolution | 1024x600 |
| Colors | 24 |
| Brightness | 350cd/m2 |
| BackLight | LED |
| BackLife | 50000 Hours |
Storage | Flash/ARM | 128MB Flash+ 128MB DDR3 |
| SD Card | Support |
| RTC | Built-in |
Ports | Serial Port | COM1:RS232/RS485/RS422; COM2/COM4:RS485; COM3:RS232 |
| Ethernet | 1x 10M/100M Self-Adaption |
| Download Project | USB Disk/ USB Device/ Ethernet |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
| Rated Power | ＜6W |
| Power Protection | Protected From Thunder Strike And Surging |
| Power Down | ＜5mS |
| Operating Humidity | 10~90% RH( No Condensation) |
| Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) |
Dimension | Shell Material | Aluminium Alloy + Engineering Plastic |
| Dimension(mm) | 185.1mm x 131.1mm x 30mm |
| Panel Cutout(mm) | 178mm x 135mm |
| Weight(g) | 650g |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
| Temperature Operate | -10°C~60°C |
| Temperature Storage | -20°C~70°C |
The others | Certificate | CE |
| Communication Protocol | Standard Modbus( RTU, TCP/IP) |
| Programming Software | Free Mochuanstudio
|
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
HMI M007 7Inch Clearness, High Brightness, Transparent
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent, like the apple mobile, will bring the user different experience. Multi-touch definition from the application, multi-touch screen's biggest feature is that you can two or three hands, multiple fingers, or even multiple people, while operating the contents of the screen, more convenient and humane, multi-touch technology is also called multi-touch technology, such as IPHONOE's use of two fingers on the screen to zoom in and out of the picture.
Mochuan HMI M007 7Inch is IPS, and perfect wide viewWe generally call the ratio of screen width and height as aspect ratio (ASPECT RATIO, also known as aspect ratio or screen ratio). The feature of widescreen is that the width of the screen obviously exceeds the height. The current standard screen ratio is generally 4:3 And 16:9. At present, more and more LCD industrial hmi monitors use a wide-screen ratio, which is closer to the golden ratio, and is more suitable for human eyes, improving the experience. In addition, for industrial applications, wide-screen products can display two on one screen. A complete web page or tiling more windows can effectively improve the efficiency of industrial automation operators.
M007 7inch M007 is strong Anti-Interference
HMI adopts industrial-grade high-quality components, high-level protection design, and comprehensive three-proof spraying. It can easily cope with wet underground mines, high-temperature Gobi or factory environments with corrosive gases, oil mist or dust.
M007 7inch Multi Touch Hmi Panel Ineer Package
Stong packing guarantees against all possible breakage in transit

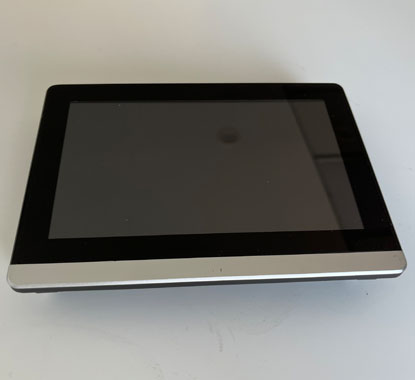

M007 7inich Front Show
Glass+Glass show, our Mochuan LOGO or netural is in optional.

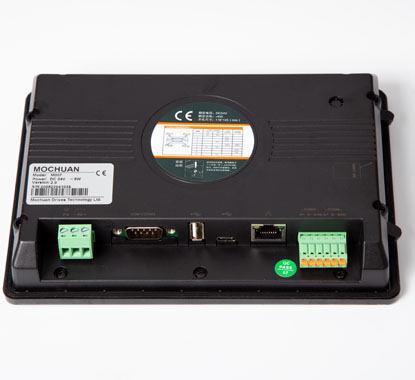

M007 7inch Multi Touch HMI Panel Back Show
我Multi COM Port COM1 COM2 COM3,RS485, RS232,RS422 and etherenet to meet different rquirement of project.
Capacitive Multi-Touch HMI
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
Plastic Economic Resistive HMI
4.3inch MC-H043S
7inch MC-H070/ MC-H070W
7inch MC-H070S/MC-H070SW
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
Metal Shell Wide-Temperature Resistive HMI
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Material of Shell: ABS
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
With very strong CPU 1GHz CortexTM-A7 and 4GB Flash+128MB DDR3.
Material of Shell: Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charge?
Mochuan HMI Software Mochuanstudio is free for the user. You can take from"download-software" if you need.
2. What technical support do you offer?
Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.
3. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.
4. Is there any service, if swtich another brand hmi to be Mochuan's?
Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.
