Motion control
Built-in 8x200KHz, 4x200KHz pulse in optional.
Supporting extend 8pcs special function module.
16/16, 28/28
In order to better adapt to the diversified needs of customers,Wuxi Mochuan Drives Technology Co.,Ltd has been working hard to develop products. Input and Output(IO) Our featured high speed low cost 64 I/O analog control industrial automation PLC, programmable logic controller providers ensure top quality product that will be ideal for all kinds of applications.
Place of Origin: | Jiangsu, China | Brand Name: | Mochuan |
Model Number: | MU2H-3232MT | Input/Ouput: | 32/32 |
Built-in pulse: | 3*100KHz pulse | Program Capacitor: | 24K |
Voltage: | DC or AC in optional | Software&Cable: | in Free with multi choose cable |
Terminal attributes: | detachable | Program properties: | linear interpolation |
Extended attributes: | support | Ethernet: | 100M |
Certificate Number | 1105217 |
Origanization | EC DECLARATION OF CONFORMITY |
Declare the product | |
Date & Time | 02/06/2011 |
Test Standard | EN60950-1:2006+A11:2009 |
Certificate for | EC Low Voltage |
MU2V | MU2H | MU1H | ||||
I/O Point | 16/16, 28/28 | 16/16, 32/32 | 08/06, 12/08, 16/10, 16/14, 36/24 | |||
Max Logical I/O | 512 | 512 | 512 | |||
Max Special Function Module | 8 | 8 | 2 I/O and analog module | |||
Program Capacity | 32K | 24K | 12K | |||
Pulse output | 8x200KHz 4differential output | 3x100KHz( transistor output) | 2x100KHz( transistor output, relay input) | |||
One-phase Counting Channel | 8x200KHz | 2*50KHz, 4x10KHz | ||||
Two-phase Counting Channel | 4x200KHz | 1x25KHz, 2x5KHz | 1x20KHz, 2x10KHz | |||
Sum of Counter Frequency | 800KHz | 100KHz | 80KHz | |||
PLC N:N | support | |||||
RTC | support(power down keeping at least 3years) | |||||
Constant Sanning Mode | support | |||||
Digital Filter | 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable | |||||
Feature | Description | |||||
Programming Software | Free MCprogrammer | |||||
Program Security | download, upload, program password | |||||
Programming Language | ladder, instruction, SFC | |||||
Communication Protocol | programming protocol, Modbus, CAN and free port, MXLink | |||||
Expansion Module | I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et | |||||
For more data of three series, please contact us. |
MU2H Main Models: | ||||||||||||
Model | I/O | Input Point | Ouput Point | Type | CAN Card | Dimension | ||||||
MU2H-1616MR/MR-CAN | 32 | 16 | 16 | relay | support | 158*90*83 | ||||||
MU2H-1616MT | 32 | 16 | 16 | transistor | - | |||||||
MU2H-3232MR/MR-CAN | 64 | 32 | 32 | relay | support | 226*90*83 | ||||||
MU2H-3232MT | 64 | 32 | 32 | transistor | - | |||||||
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module. |
Multi Axis Control: MU2H series PLC supports Max 8pcs MU2H-PG(applied to muti axis control) or MU2H-2HC( applied to strong interference working envrionment) module. And main module( transistor) support 3road indepedent Max 100KHz pulse with PT0 and PWM modes.
Digital Filer Function: all input terminals of main model and extended module support digital filter function. Filterring time could be configured through software supporting 0.8ms, 1.6ms, 3.2ms, 6.4ms, 12.7ms, 51.2ms.
Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.
Super Extension System: MU2H series PLC Max extend up to 512points and 8pieces of special function module.
Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

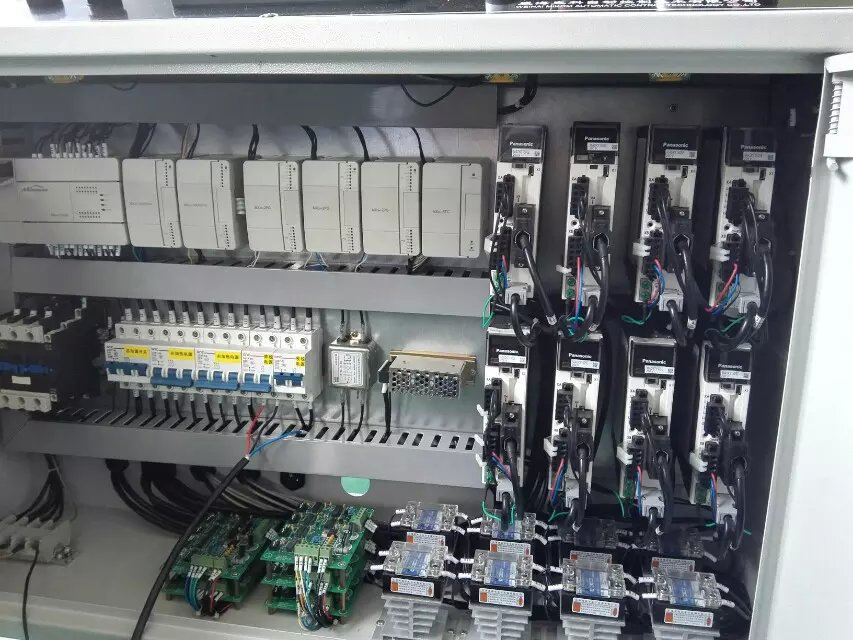

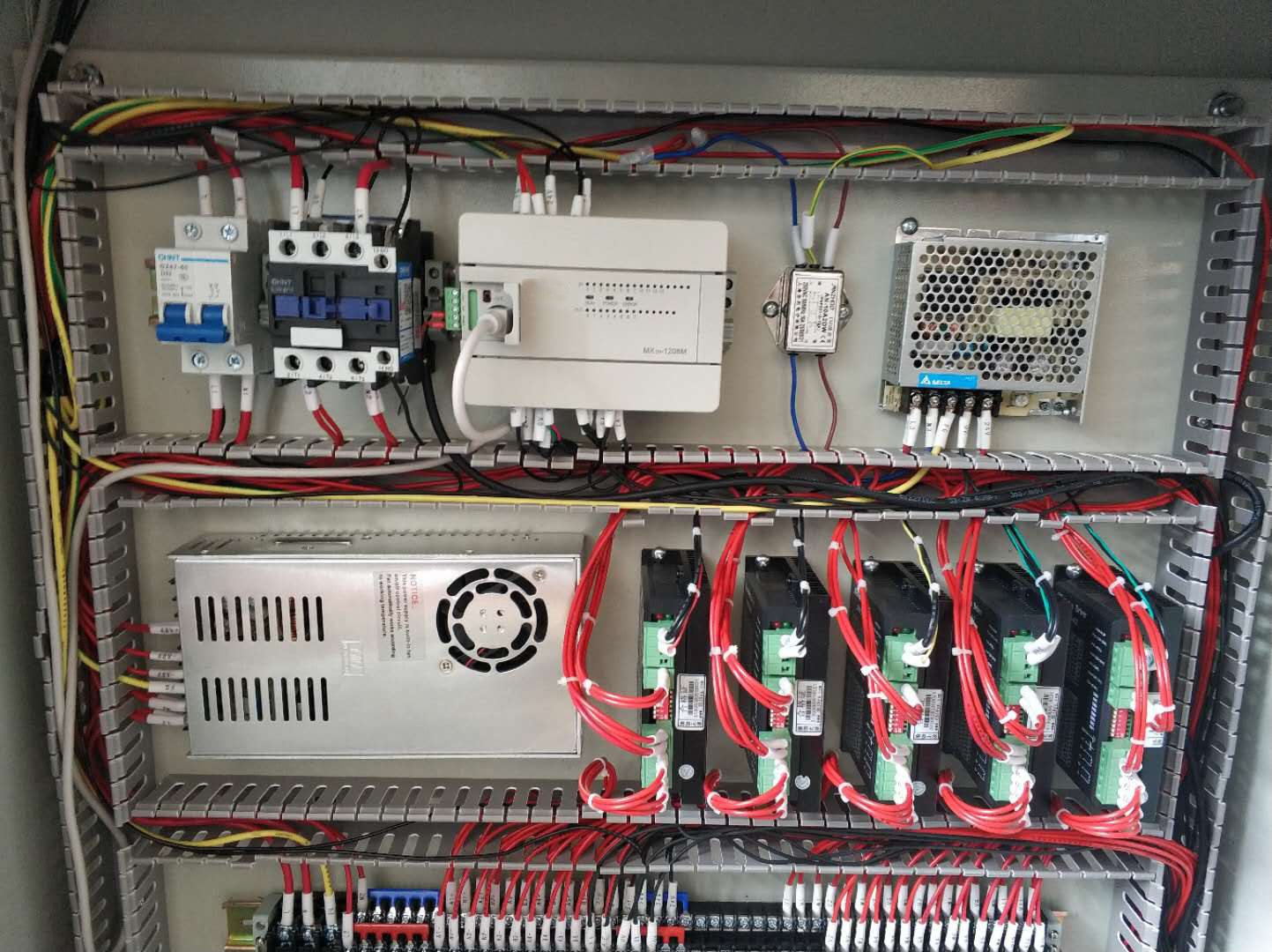

Application
