Wuxi Mochuan Drives Technology Co.,Ltd relying on strong innovation ability and firm R&D perseverance, successfully developed modbus rs485 mini low cost small easy cheap micro analog plc controller. modbus rs485 mini low cost small easy cheap micro analog plc controller attaches great importance to technological innovation in the research and development process. In the future, Wuxi Mochuan Drives Technology Co.,Ltd will always adhere to the business philosophy of "people-oriented, innovative development", based on excellent quality, driven by technological innovation, committed to high-quality products, high-level technology and high-efficiency operations, and promotes the company The economy develops soundly and rapidly.
Place of Origin: | Jiangsu, China | Brand Name: | Mochuan |
Model Number: | MU2H-3232MT | Input/Output: | 32/32 |
Max I/O: | 512 | Built-in: | 3x100KHz |

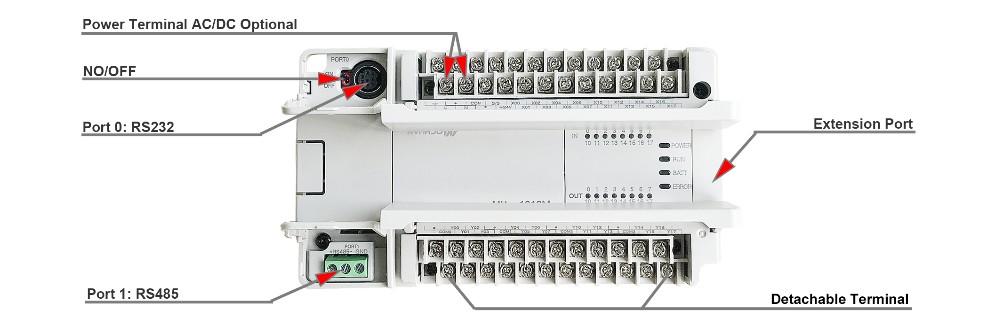

Interface Type: | RS485/CAN/RS232 | Cable: | RS232 |
Software: | free software | Ethernet: | support |

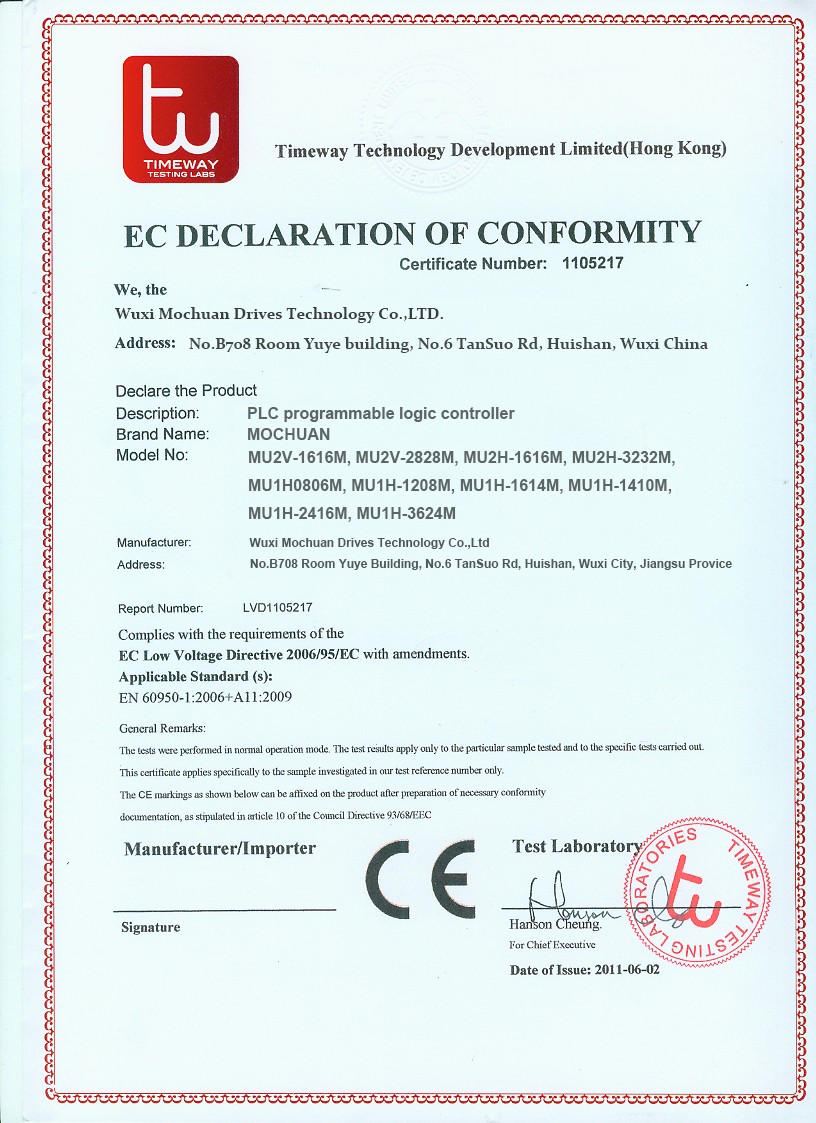

Certificate Number | 1105217 |
Origanization | EC DECLARATION OF CONFORMITY |
Declare the product | |
Date & Time | 02/06/2011 |
Test Standard | EN60950-1:2006+A11:2009 |
Certificate for | EC Low Voltage |
MU2V | MU2H | MU1H | ||||
I/O Point | 16/16, 28/28 | 16/16, 32/32 | 08/06, 12/08, 16/10, 16/14, 36/24 | |||
Max Logical I/O | 512 | 512 | 512 | |||
Max Special Function Module | 8 | 8 | 2 I/O and analog module | |||
Program Capacity | 32K | 24K | 12K | |||
Pulse output | 8x200KHz 4differential output | 3x100KHz( transistor output) | 2x100KHz( transistor output, relay input) | |||
One-phase Counting Channel | 8x200KHz | 2*50KHz, 4x10KHz | ||||
Two-phase Counting Channel | 4x200KHz | 1x25KHz, 2x5KHz | 1x20KHz, 2x10KHz | |||
Sum of Counter Frequency | 800KHz | 100KHz | 80KHz | |||
PLC N:N | support | |||||
RTC | support(power down keeping at least 3years) | |||||
Constant Sanning Mode | support | |||||
Digital Filter | 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable | |||||
Feature | Description | |||||
Programming Software | Free MCprogrammer | |||||
Program Security | download, upload, program password | |||||
Programming Language | ladder, instruction, SFC | |||||
Communication Protocol | programming protocol, Modbus, CAN and free port, MXLink | |||||
Expansion Module | I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et | |||||
For more data of three series, please contact us. |

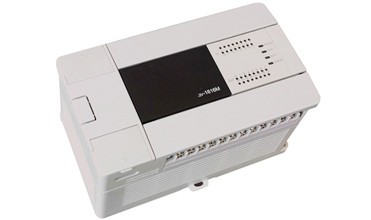

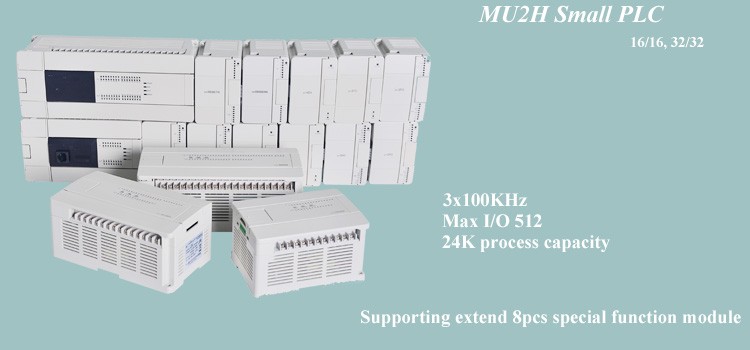

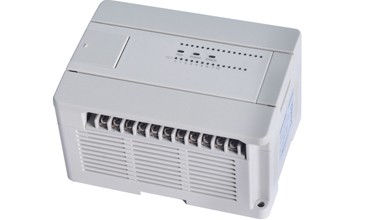

MU2H Main Models: | ||||||||||||
Model | I/O | Input Point | Ouput Point | Type | CAN Card | Dimension | ||||||
MU2H-1616MR/MR-CAN | 32 | 16 | 16 | relay | support | 158*90*83 | ||||||
MU2H-1616MT | 32 | 16 | 16 | transistor | - | |||||||
MU2H-3232MR/MR-CAN | 64 | 32 | 32 | relay | support | 226*90*83 | ||||||
MU2H-3232MT | 64 | 32 | 32 | transistor | - | |||||||
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module. |

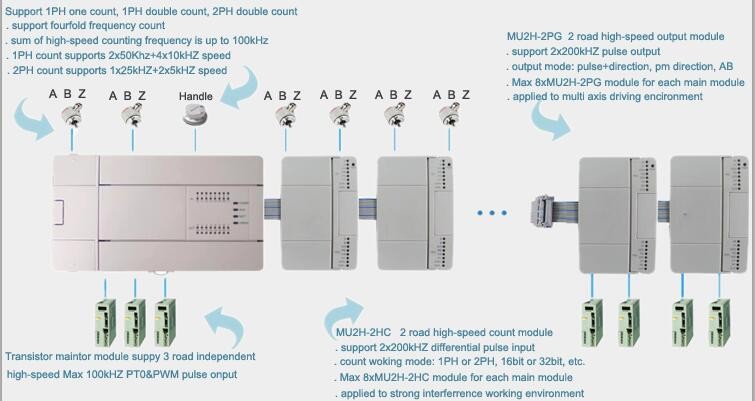

Multi Axis Control: MU2H series PLC supports Max 8pcs MU2H-PG(applied to muti axis control) or MU2H-2HC( applied to strong interference working envrionment) module. And main module( transistor) support 3road indepedent Max 100KHz pulse with PT0 and PWM modes.

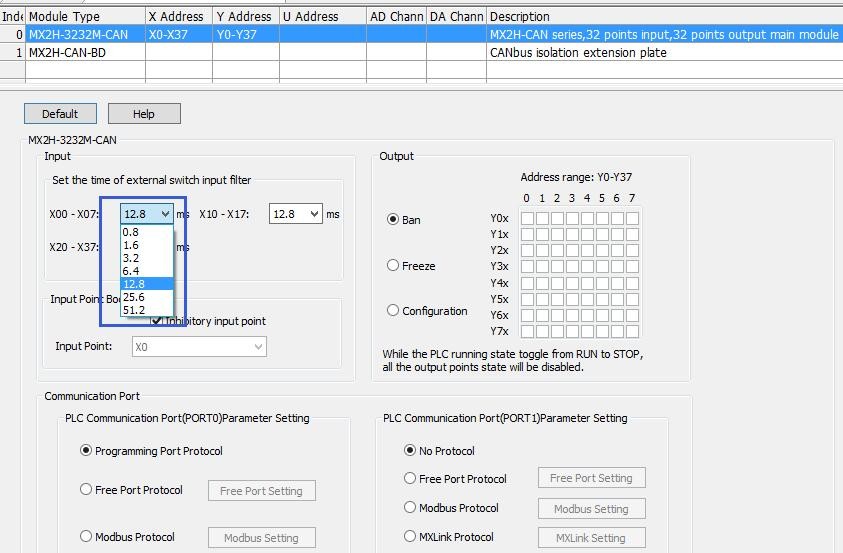

Digital Filer Function: all input terminals of main model and extended module support digital filter function. Filterring time could be configured through software supporting 0.8ms, 1.6ms, 3.2ms, 6.4ms, 12.7ms, 51.2ms.

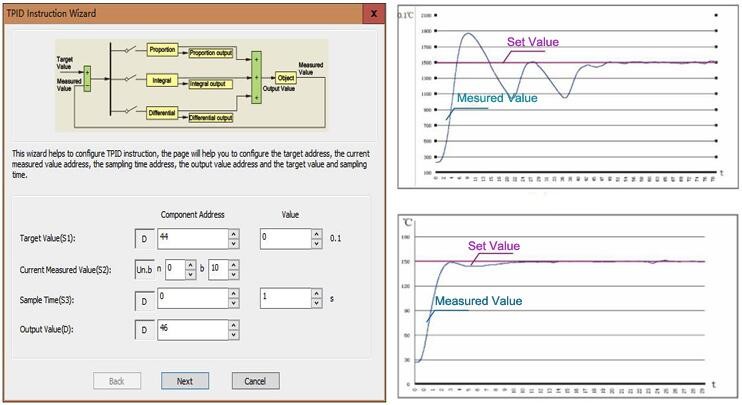

Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.

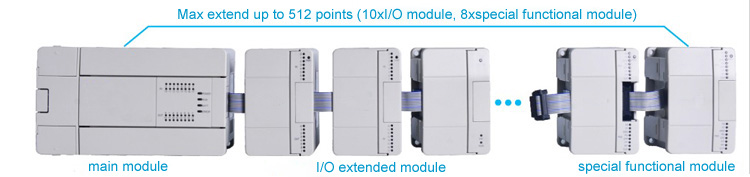

Super Extension System: MU2H series PLC Max extend up to 512points and 8pieces of special function module.

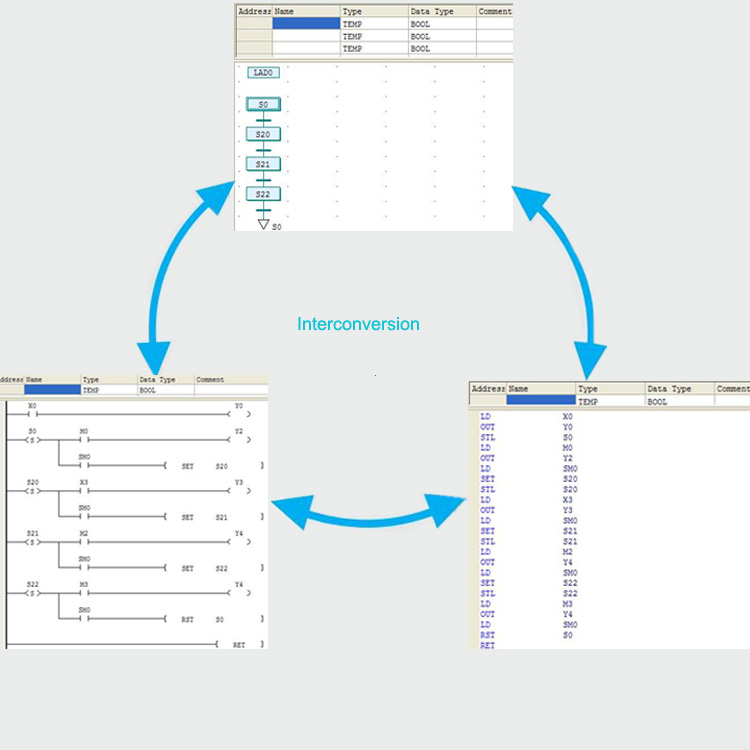

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

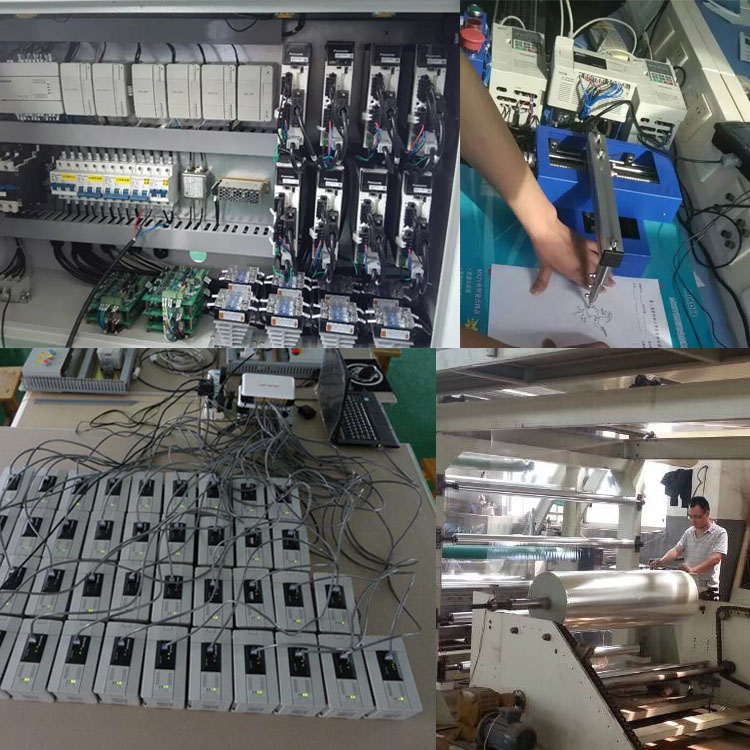

Application
With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
Motion control
Built-in 8x200KHz, 4x200KHz pulse in optional.
Supporting extend 8pcs special function module.
16/16, 28/28
Integrated analog input output.
Built-in 2x100KHz pulse input output.
Supporing extend 2pcs i/o and special function module.
7'', 9.7'', 15'', 17'' 22'', 23''
4.3'', 7'', 9.7''10.4'', 12.1'', 15''
4.3'', 7'', 9.7''
More than 30,000 designs of position sensor switch.

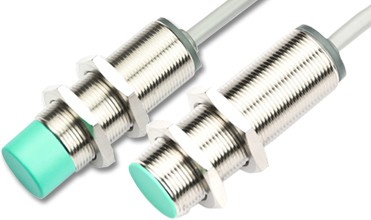

Inductive proximity switch, capacitive proximity switch
