32/32 PLC Controller
Home > Products > PLC Programmable Logic Controller > MV3U PLC Controller > 32/32 PLC Controller
VR
Recommended
Replay
Replay
Recommended
MOCHUAN - high speed low cost 64 I/O analog control industrial automation PLC, programmable logic controller 32/32
MOCHUAN - high speed low cost 64 I/O analog control industrial automation PLC, programmable logic controller 32/32
MOCHUAN - modbus rs485 mini low cost small easy cheap micro analog plc controller 32/32
MOCHUAN - modbus rs485 mini low cost small easy cheap micro analog plc controller 32/32
China Low Cost Touch Screen PLC Controller 64 I/O PLC Controller 32/32
China Low Cost Touch Screen PLC Controller 64 I/O PLC Controller 32/32
Mochuan Modbus Cheap PLC Controller Pulse Ethernet 32/32 PLC Controller
Mochuan Modbus Cheap PLC Controller Pulse Ethernet 32/32 PLC Controller
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 manufacturer
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 in Wuxi
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 factory
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 price
MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 company
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 manufacturer
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 in Wuxi
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 factory
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 price
  • MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32 company

MOCHUAN - plc hmi ethernet touch panel 7 inch programmable controller 32/32

can comprehensively improve the core competitiveness, popularity and market occupancy rate of the enterprise, and effectively promote the healthy and rapid development of the enterprise.What's more，The size and style can be tailored to fit the needs of diverse customers. finds a broad range of applications such as .
SEND INQUIRY NOW
shipping:
Express Sea freight · Land freight · Air freight
Customization:
Customized logo (Min. Order: 10 pieces) , Customized packaging (Min. Order: 10 pieces) , Graphic customization (Min. Order: 10 pieces)
SEND INQUIRY NOW
  • Products Details

Wuxi Mochuan Drives Technology Co.,Ltd through years of painstaking research, relying on mature R&D technology and precise market positioning, we have created plc hmi ethernet touch panel 7 inch programmable controller. plc hmi ethernet touch panel 7 inch programmable controller starting from the user experience and using strong research and development capabilities, it can effectively solving the pain points of the industry. In the future,Wuxi Mochuan Drives Technology Co.,Ltd will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.

Model Number:MU2H-3232MT-CANPlace of Origin:Jiangsu, China
Brand Name:MochuanInput/ Output:32/32
Built-in Pluse output:3x200kHzPower-Off Keeping Function:support
Extended CAN card:supportPower Supply:AC85-264V/DC24V
Processing Speed:0.084μsMOQ:1pcs is ok
Software:free

Pay Attention

Title goes here.

Mochuan Keeps Words,
1. Offering 24months warranty for all PLC. 2. Offering free software, demo and communication cable. 3. There are three differet series of plc. MU2V motion control series; MU2H small series; MU1H economic series. MU2V with 16/16, 28/28, integrated 8x200KHz, 4x200Khz in optional. MU2H with 16/16, 32/32, integrated 3x100KHz pulse; 24K. MU1H with 08/06, 12/08, 14/10, 16/14, 24/16, 36/24, integrated 2x100KHz and analog. Besides plc, we also support HMI and sensor switch. If you need, welcome contact us for price.
Certificate
Certificate Number
1105217
Origanization
EC DECLARATION OF CONFORMITY
Declare the product
PLC Programmable logic controller
Date & Time
02/06/2011
Test Standard
EN60950-1:2006+A11:2009
Certificate for
EC Low Voltage
Our Advantage
Product Description
MU2V
MU2H
MU1H
I/O Point
16/16, 28/28
16/16, 32/32
08/06, 12/08, 16/10, 16/14, 36/24
Max Logical I/O
512
512
512
Max Special Function Module
8
8
2 I/O and analog module
Program Capacity
32K
24K
12K
Pulse output
8x200KHz
4differential output
3x100KHz( transistor output)
2x100KHz( transistor output, relay input)
One-phase Counting Channel
8x200KHz
2*50KHz, 4x10KHz
Two-phase Counting Channel
4x200KHz
1x25KHz, 2x5KHz
1x20KHz, 2x10KHz
Sum of Counter Frequency
800KHz
100KHz
80KHz
PLC N:N
support
RTC
support(power down keeping at least 3years)
Constant Sanning Mode
support
Digital Filter
0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature
Description
Programming Software
Free MCprogrammer
Program Security
download, upload, program password
Programming Language
ladder, instruction, SFC
Communication Protocol
programming protocol, Modbus, CAN and free port, MXLink
Expansion Module
I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et
For more data of three series, please contact us.
MU2H Main Models:
Model
I/O
Input Point
Ouput Point
Type
CAN Card
Dimension
MU2H-1616MR/MR-CAN
32
16
16
relay
support
158*90*83
MU2H-1616MT
32
16
16
transistor
-
MU2H-3232MR/MR-CAN
64
32
32
relay
support
226*90*83
MU2H-3232MT
64
32
32
transistor
-
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module.
Feature

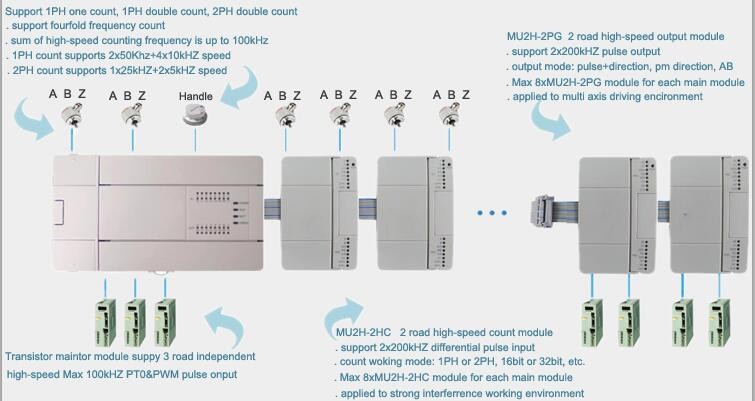

Multi Axis Control: MU2H series PLC supports Max 8pcs MU2H-PG(applied to muti axis control) or MU2H-2HC( applied to strong interference working envrionment) module. And main module( transistor) support 3road indepedent Max 100KHz pulse with PT0 and PWM modes.

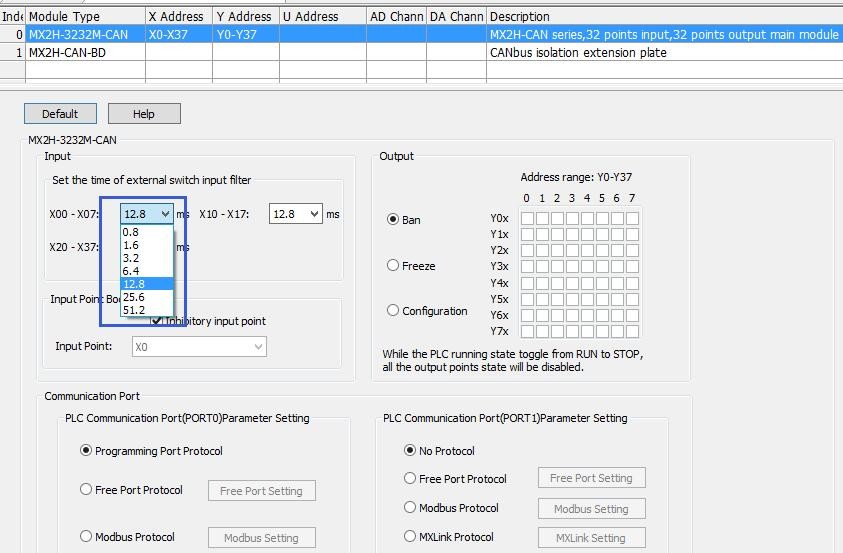

Digital Filer Function: all input terminals of main model and extended module support digital filter function. Filterring time could be configured through software supporting 0.8ms, 1.6ms, 3.2ms, 6.4ms, 12.7ms, 51.2ms.

Integrates PID function: MU2H series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.

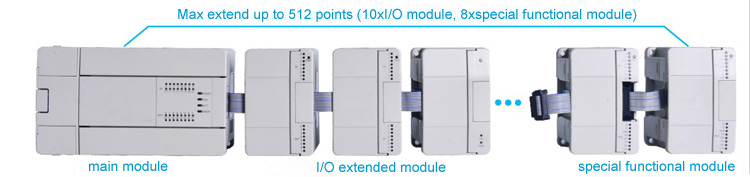

Super Extension System: MU2H series PLC Max extend up to 512points and 8pieces of special function module.

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

Application

What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business  since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.


Mochuan  Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.


Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.


"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."

Related Products

MU2V Series PLC

Motion control

Built-in 8x200KHz, 4x200KHz pulse in optional.

Supporting extend 8pcs special function module.

16/16, 28/28

MU1H Series PLC


Integrated analog input output.

Built-in 2x100KHz pulse input output.

Supporing extend 2pcs i/o and special function module.

Multi-touch Capacitive HMI

7'', 9.7'', 15'', 17'' 22'', 23''

Wide-temperature Resistive HMI

4.3'', 7'', 9.7''10.4'', 12.1'', 15''

Plastic Resistive HMI

4.3'', 7'', 9.7''

Mochuan Position Sensor Switch

More than 30,000 designs of position sensor switch.

Inductive proximity switch, capacitive proximity switch

Photoelectric sensor swtich


φ4, φ5, φ6, M5, M8, M12, M18, M30

Square, combined, cylinder type

Supporting sample purchase, OME&ODM

Hot Promotion
If you require plc, hmi and sensor for the project, welcome contact us for its catagloue and price list.
Hope there will be a chance to meet and serve you at 2020.
