Plastic Shell Economic Resistive HMI Panel
VR
  • Products Details

Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of 7'' usb modbus rs232 lcd display module touch screen plc control panel. The 7'' usb modbus rs232 lcd display module touch screen plc control panel has the significance of taking a leap forward and injects new impetus into the development of the industry. Influenced by the market trends and customers' requirements, the design of hmi human machiine interface, plc programmable logic controller, standard and non-standard customized permanent magnet motor is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Display Size:7''Place of Origin:china
Model Number:MC-H070Brand Name:Mochuan
Resolution:800*480Touch Panel:4 wire resistive touch screen
Protection Level:IP65Processor:600MHz ARM
Interface:USB/RS232/RS485/RS422MOQ:NO MOQ

Pay Attention
Certificate
Test Report No.
SHEM150900340401TXC
Origanization
SGS
Type
Date & Time
10/25/2015
Test Standard
EN61000-6-4:2007+A1:2001
EN61000-6-2:2005
Certificate for
EMC
Our Advantage
HMI & Feature
MC-R4043
MC-H070
MC-H070S
MC-H100
MC-H100E
Programming software
Mochuanstudio
Compatible Labtop OS
Win7/ Win10/ Win XP
CPU
600MH ARM Cortex-A8
Touch scree
4 wire resistive touch screen
Screen Size
4.3'' tft lcd
7'' 16:9 tft lcd
10.1'' 16:9 tft lcd
Resolution
480x272
800x480
1024x600
Colors
24-bit colors
Brightness
LED
Backlight
50,000 hours
Storage
128M Flash+128m DDR3
SD card
N/A
N/A
support
N/A
support
USB
USB Host2.0x1; USB Device 2.0x1
Ethernet
N/A
N/A
1x10/100M
N/A
1x10/100M
Serial Port
COM1:RS232/485/422
COM3:RS232
COM1/COM3:RS232/485/422
COM2:RS485
COM1:RS232/485/422
COM3:RS232
COM1/COM3:RS232/485/422
COM2:RS485
Working Power
DC24V, supporting working range: DC9V~28V
Power Consumption
<5W
<10W
Power Down Allowed
<5mS
Working Temperate
0~50℃
Storage Temperate
﹣20~60℃
Operating Humidity
10~90% RH( No condensation)
Vibration Endurance
10~25Hz( X/Y/Z 2G/30Min)
Portection Level
Front IP65( with NEMA panel), Back IP20
Cooling
Natural air cooling
Material
ABS
Panel cutout(mm)
120x93
192x138
260x202
Dimension(mm)
128x102x32
204x145x33.8
273x213x36
Weight(g)
500g
560g
890g
920g

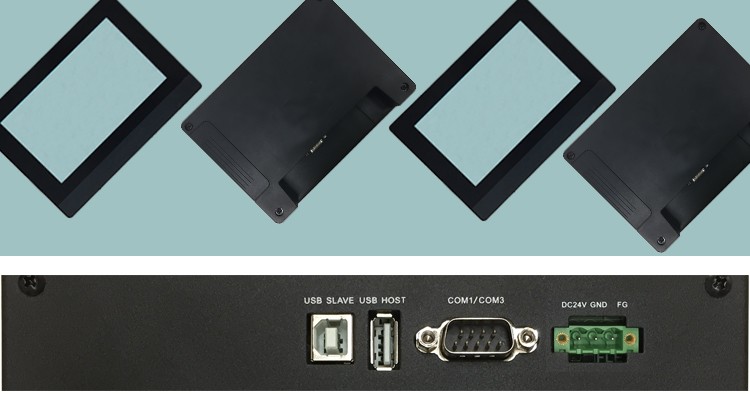

Terminal of MC6070C: with COM1:RS232/RS485/RS422 and COM3:RS232

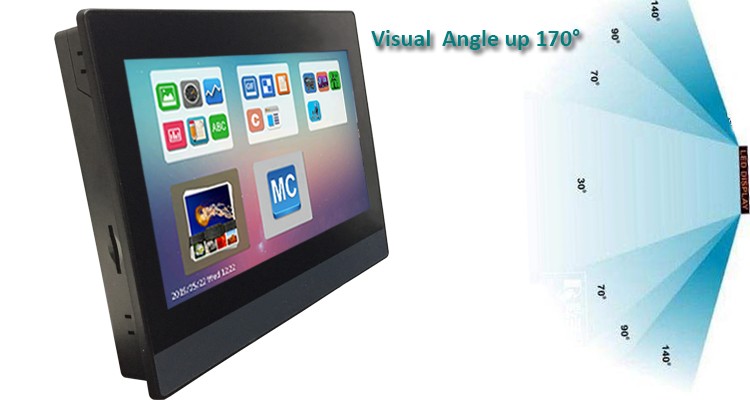

Visual Angle:  wide angle with 50'/70'/70'/70', up to 170°

PCB Coating Protection: ehance the strengh of damp proof, corrision resistance in harsh environment, including three anti-panit, and isolated power supply.

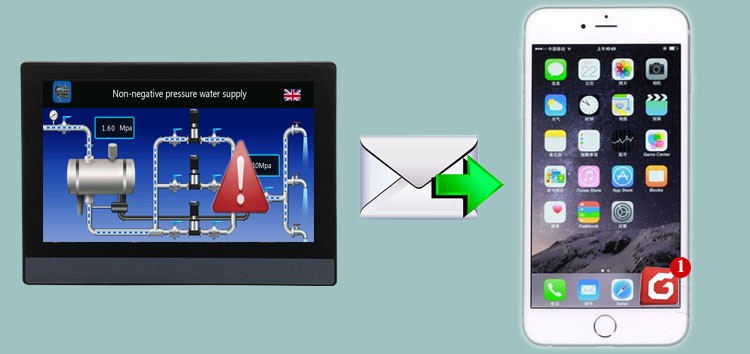

Email Alert Function: supporting any the run-time error to send through by gmail to provide users with real-time monitoring at all the time.

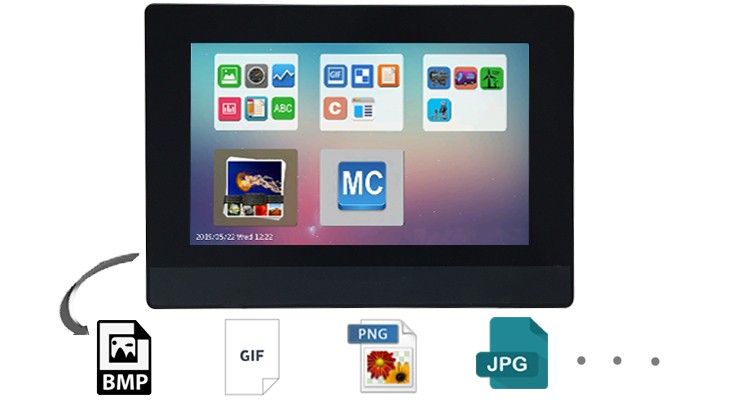

Multi-format picture: supporting to output BMP, GIP, PNG, JPG...etc multi format.

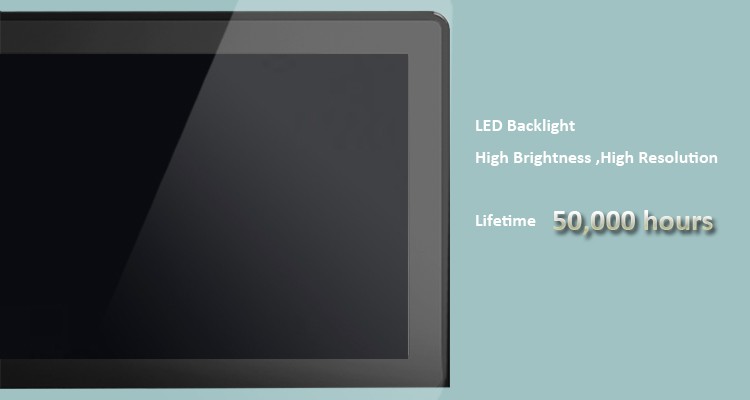

LCD lifetime: led backlight, high brightness, high resolution, LCD have more than 50,000hours lifetime.

What&How Mochuan is

With more than 15-years domestic market development since 2002 and around 3-years foreign business  since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.


Mochuan  Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.


Our value message is QUALITY IS OUR CULTURE.

90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.


"With us your MONEY in safe, your BUSINESS in safe".

WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.

WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."

Related Products

MC-C series Capacitive Multi-touch HMI

Mochuan multi-touch capacitive hmi panel, with 7inch, 9.7inch, 17'', 22'' and 32'' available size.

1. Offering free software and available solution.

2. Supporting sample purchase and 7days refund.

3. Offering DEMO per your requirement.


Welcome contact us for more details.

MC-M series metal resistive HMI

Mochuan wide-temperature metal resistive HMI panel.

1. Available sizie 4.'', 7'', 9.7'', 12.1'' and 15''.

2. Working temperature supports from -20~70℃.

3. Supporting sample purchase and 7days refund.

4. Offering DEMO per your requirement.


Welcome contact us for its catagloue and price.

1. There are MU2V, MU2H and MU1H series.

2. Built-in 8x200KHz, 4x200KHz, 3x100KHz and 2x100KHz.

3. Multi-I/O

08/06, 12/08, 14/10, 16/14, 24/16, 36/24, 16/16, 32/32...

4. Free software and communication cable.

Supporting sample purchase and 7days refund
Welcome contact us for catagloue, software and price.

Mochuan Position Sensor Switch

More than 30,000 designs of position sensor switch.
1. Inductive, capacitive and photoelectric sensor switch type.
2. Supporing OEM & ODM.
3. NO MOQ, and offer 7days refund in caes of bad quality.

Welcome contact us for catagloue and price.

Hot Promotion


Hot Promotion


1. Buy 20pcs GET 1pcs in FREE.
2. Try one sample to get 10$
3. Support 7Days refund without any CONDITIONS.
4. Refund all the items did not sold out within 6months.

If this type is not you ask, please contact us, We still have more type, whole catalogue and price wait YOU.
