There are different types and sizes of best and cheap home automation plc with pwm and high speed counter that buyers can buy from the MOCHUAN. Our company has been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As best and cheap home automation plc with pwm and high speed counter advantages are discovered continually, it has been widely used in the field(s) of PLC, PAC, & Dedicated Controllers. Wuxi Mochuan Drives Technology Co.,Ltd always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.
| Place of Origin: | Jiangsu, China | Brand Name: | Mochuan |
| Model Number: | MU2V-2828MR1 | Input/Output: | 28/28 |
| Pulse input output: | 8x200KHz, 4x200KHz in opiontal | Thermal Rating: | -5℃~55℃ temperature |
| Interface Type: | RS485/CAN/RS232 | MOQ: | NO MOQ |
Certificate Number | 1105217 |
Origanization | EC DECLARATION OF CONFORMITY |
Declare the product | |
Date & Time | 02/06/2011 |
Test Standard | EN60950-1:2006+A11:2009 |
Certificate for | EC Low Voltage |
.com suppliers platform show that:
1. We never got any complain.
2. More than 5000 customers contacted us.
3. Star supplier with more than 10000 points.
MU2V | MU2H | MU1H | |||
I/O Point | 16/16, 28/28 | 16/16, 32/32 | 08/06, 12/08, 16/10, 16/14, 36/24 | ||
Max Logical I/O | 512 | 512 | 512 | ||
Max Special Function Module | 8 | 8 | 2 I/O and analog module | ||
Program Capacity | 32K | 24K | 12K | ||
Pulse output | 8x200KHz 4differential output | 3x100KHz( transistor output) | 2x100KHz( transistor output, relay input) | ||
One-phase Counting Channel | 8x200KHz | 2*50KHz, 4x10KHz | |||
Two-phase Counting Channel | 4x200KHz | 1x25KHz, 2x5KHz | 1x20KHz, 2x10KHz | ||
Sum of Counter Frequency | 800KHz | 100KHz | 80KHz | ||
PLC N:N | support | ||||
RTC | support(power down keeping at least 3years) | ||||
Constant Sanning Mode | support | ||||
Digital Filter | 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable | ||||
Feature | Description | ||||
Programming Software | Free MCprogrammer | ||||
Program Security | download, upload, program password | ||||
Programming Language | ladder, instruction, SFC | ||||
Communication Protocol | programming protocol, Modbus, CAN and free port, MXLink | ||||
Expansion Module | I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et | ||||
MU2V Model: | ||||||||||||
Model | I/O | Input Point | Ouput Point | Type | CAN Card | Dimension | ||||||
MU2V-1616MT/MT1/MT1-CAN | 32 | 16 | 16 | transistor | optional | 158*90*83 | ||||||
MU2V-2828MT/MT-CAN | 56 | 28 | 28 | transistor | 226*90*83 | |||||||
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module. | ||||||||||||
Multi Axis Control: MU2V series plc controller programmable logic controller supports totally 8*200KHz pulse input and outptut, without any the other separate extended I/O module and speial function module.
Visual Panel and Oscilliscope: visual panel makes monitoring online Demo more vivid; oscilliscope makes fault easier found in debugging process.
Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.
Free Software: MCProgrammer meet IEC61131-3 internation standard.
With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."

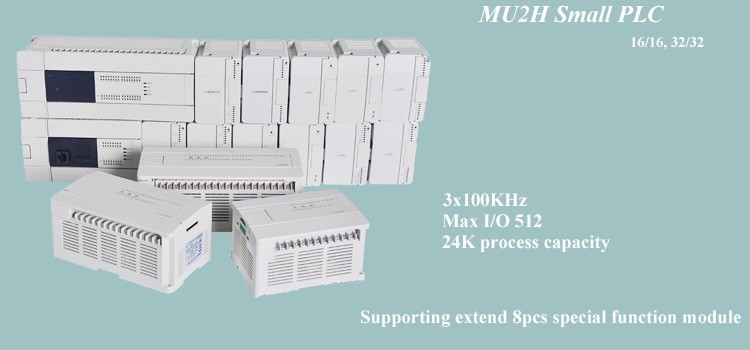

Built-in 3x100KHz pulse input output.
Supporting extend 8pcs special function module.
16/16, 32/32
Integrated analog input output.
Built-in 2x100KHz pulse input output.
Supporing extend 2pcs i/o and special function module.
7'', 9.7'', 15'', 17'' 22'', 23''
4.3'', 7'', 9.7''10.4'', 12.1'', 15''
4.3'', 7'', 9.7''
More than 30,000 designs of position sensor switch.
Inductive proximity switch, capacitive proximity switch
Photoelectric sensor swtich
φ4, φ5, φ6, M5, M8, M12, M18, M30
Square, combined, cylinder type
Supporting sample purchase, OME&ODM
