Built-in 3x100KHz pulse input output.
Supporting extend 8pcs special function module.
16/16, 32/32
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability,chinese best and cheap programmable logic plc motion controller automation is suitable for the field(s) of PLC, PAC, & Dedicated Controllers. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like PLC, PAC, & Dedicated Controllers requiring very high quality. Next,Wuxi Mochuan Drives Technology Co.,Ltd will introduce more outstanding talents, invest more research and development funds, and improve market competitiveness.
Place of Origin: | Jiangsu, China | Brand Name: | Mochuan |
Model Number: | MU2V-2828MT | Input/Output point: | 28/28 |
Built-in Pulse Output: | 8x200KHz, 4x200KHz optional | Program CPU: | 32K |
Processing Speed: | 0.050μs/step | Protocol: | Industry standard Modbus |
MOQ: | welcome small order | Free: | free |
Cable: | RS232 |

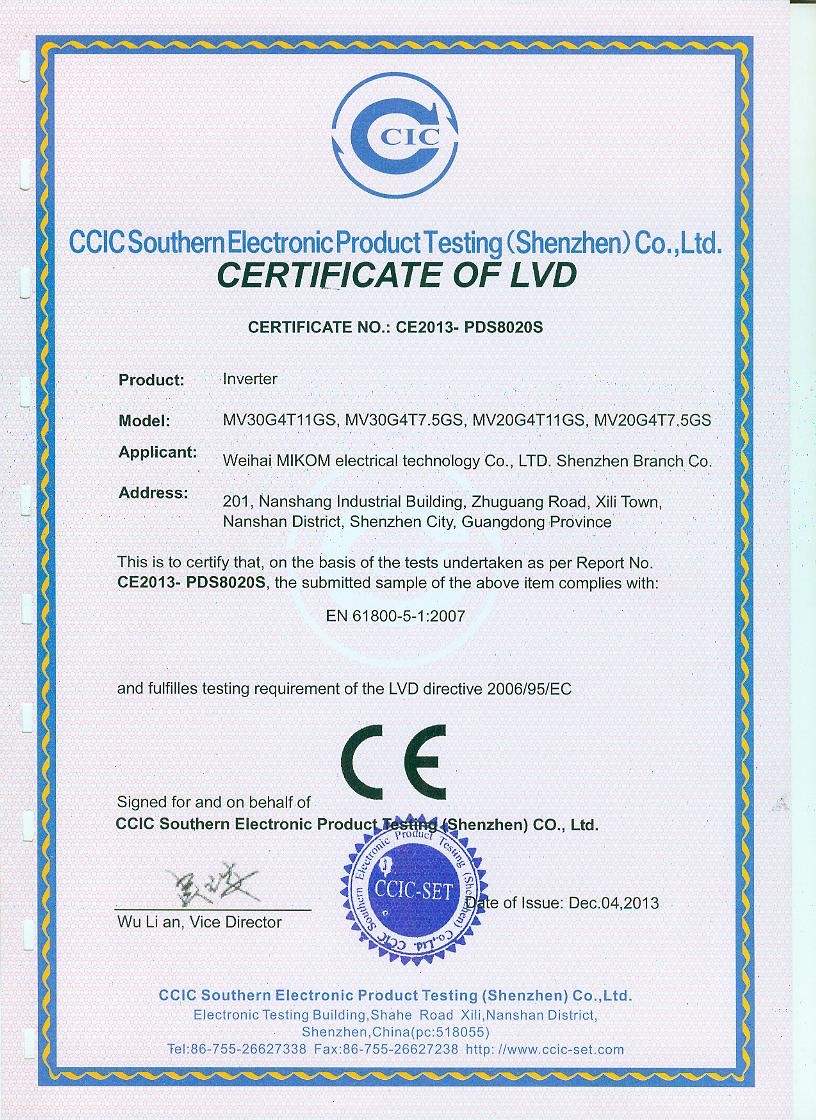

Certificate Number | CE2013-PDS8020S |
Origanization | CCIC Southern Electronic Product Testing |
Declare the product | inverter |
Date & Time | 04/12/2013 |
Test Standard | EN61800-5-1:2007 |
Certificate for | LVD directive 2006/95/EC |
MU2V | MU2H | MU1H | |||
I/O Point | 16/16, 28/28 | 16/16, 32/32 | 08/06, 12/08, 16/10, 16/14, 36/24 | ||
Max Logical I/O | 512 | 512 | 512 | ||
Max Special Function Module | 8 | 8 | 2 I/O and analog module | ||
Program Capacity | 32K | 24K | 12K | ||
Pulse output | 8x200KHz 4differential output | 3x100KHz( transistor output) | 2x100KHz( transistor output, relay input) | ||
One-phase Counting Channel | 8x200KHz | 2*50KHz, 4x10KHz | |||
Two-phase Counting Channel | 4x200KHz | 1x25KHz, 2x5KHz | 1x20KHz, 2x10KHz | ||
Sum of Counter Frequency | 800KHz | 100KHz | 80KHz | ||
PLC N:N | support | ||||
RTC | support(power down keeping at least 3years) | ||||
Constant Sanning Mode | support | ||||
Digital Filter | 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable | ||||
Feature | Description | ||||
Programming Software | Free MCprogrammer | ||||
Program Security | download, upload, program password | ||||
Programming Language | ladder, instruction, SFC | ||||
Communication Protocol | programming protocol, Modbus, CAN and free port, MXLink | ||||
Expansion Module | I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et |

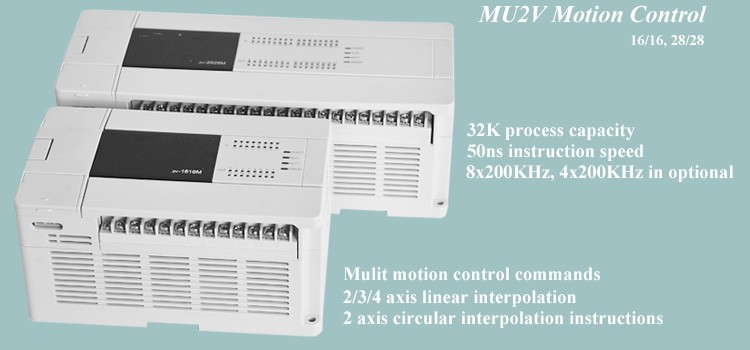

MU2V Model: | ||||||||||||
Model | I/O | Input Point | Ouput Point | Type | CAN Card | Dimension | ||||||
MU2V-1616MT/MT1/MT1-CAN | 32 | 16 | 16 | transistor | optional | 158*90*83 | ||||||
MU2V-2828MT/MT-CAN | 56 | 28 | 28 | transistor | 226*90*83 | |||||||
Supporting to expand analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight..module. |

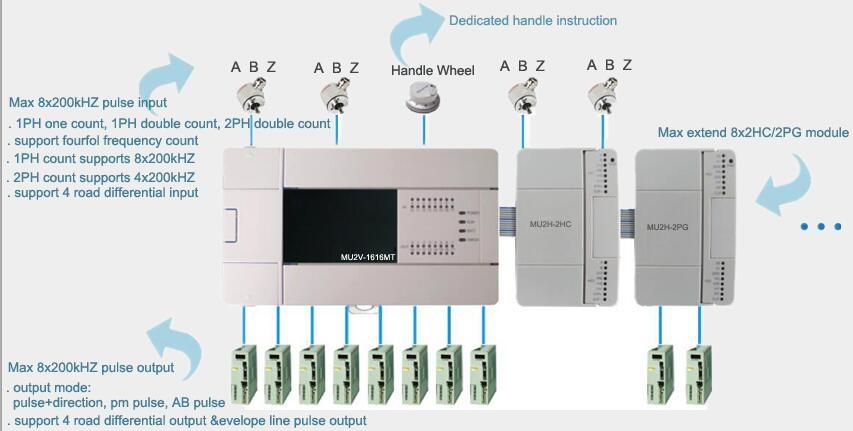

Multi Axis Control: MU2V series plc controller programmable logic controller supports totally 8*200KHz pulse input and outptut, without any the other separate extended I/O module and speial function module.

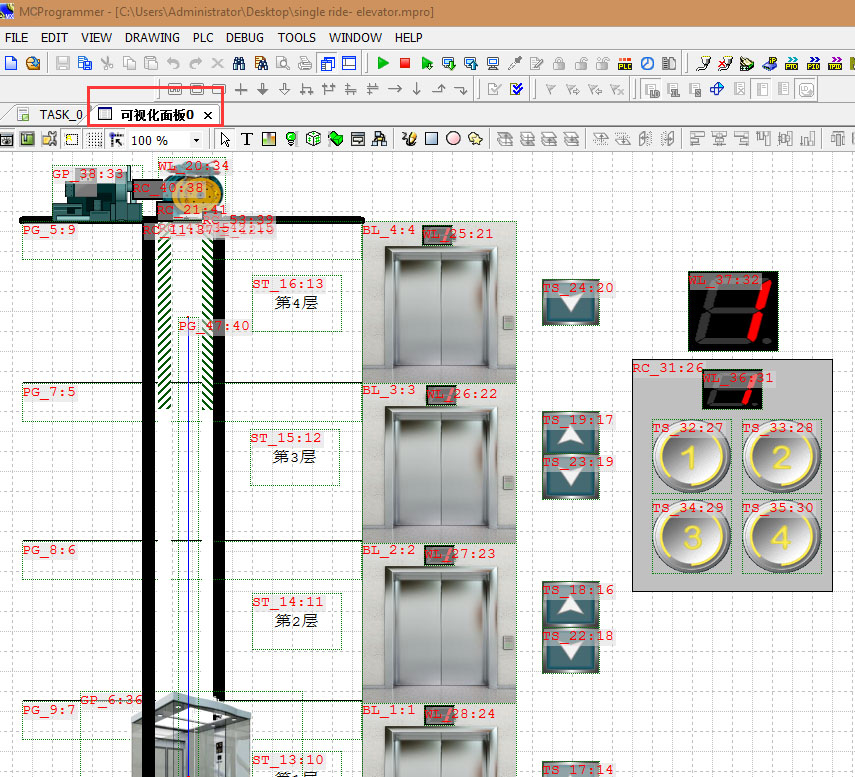

Visual Panel and Oscilliscope: visual panel makes monitoring online Demo more vivid; oscilliscope makes fault easier found in debugging process.
Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.

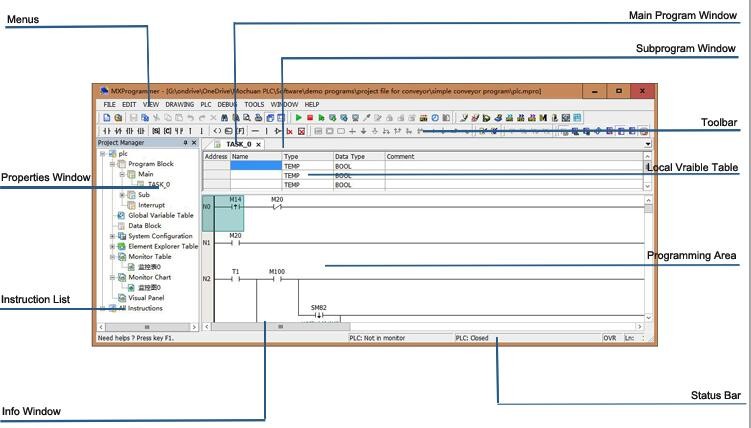

Free Software: MCProgrammer meet IEC61131-3 internation standard.
MU2V series also have many features, please contact us for more.
