Wuxi Mochuan Drives Technology Co.,Ltd relying on years of technical accumulation and industry experience, organically combining traditional craftsmanship with modern technology, successfully developed transistor Ethernet rs485 modbus plc relay module modbus i o module. Since launched, transistor Ethernet rs485 modbus plc relay module modbus i o module has been receiving mounting acclaim from customers. Wuxi Mochuan Drives Technology Co.,Ltd have the aspiration to become a leading enterprise in the market. To achieve this goal, we will continually follow the market rules strictly and make bold changes and innovations to cater to market trends.

Place of Origin:Jiangsu, ChinaBrand Name:Mochuan
Model Number:MU2V-2828MTInput/Output point:28/28
Program CPU:32k StepProcessing Speed:0.05μs/step
Pulse Output:8x200kHz (support 4 road differential output)Pulse Type:pulse+direction, plus/minus, AB phase
Single Phase Count:8x200kHz (support 4 road differential input)Software:free

Pay Attention

Mochuan Warranty

Mochuan Warranty
Mochuan Keeps Words,
1. Offering 24months warranty for all PLC.
2. Offering free software, demo and communication cable.
3. There are three differet series of plc. MU2V motion control series; MU2H small series; MU1H economic series.
MU2V with 16/16, 28/28, integrated 8x200KHz, 4x200Khz in optional.
MU2H with 16/16, 32/32, integrated 3x100KHz pulse; 24K.
MU1H with 08/06, 12/08, 14/10, 16/14, 24/16, 36/24, integrated 2x100KHz and analog.
Besides plc, we also support HMI and sensor switch. If you need, welcome contact us for price.
Certificate
Certificate Number
1105217
Origanization
EC DECLARATION OF CONFORMITY
Declare the product
Date & Time
02/06/2011
Test Standard
EN60950-1:2006+A11:2009
Certificate for
EC Low Voltage
Our Advantage
Product Description
transistor Ethernet rs485 modbus plc relay module modbus i o module
MU2V
MU2H
MU1H
I/O Point
16/16, 28/28
16/16, 32/32
08/06, 12/08, 16/10, 16/14, 36/24
Max Logical I/O
512
512
512
Max Special Function Module
8
8
2 xI/O and 2x analog module (except 08/06, 12/08)
Program Capacity
32K
24K
12K
Pulse output
8x200KHz
4differential output
3x100KHz( transistor output)
2x100KHz( transistor output)
One-phase Counting Channel
8x200KHz
2*50KHz, 4x10KHz
Two-phase Counting Channel
4x200KHz
1x25KHz, 2x5KHz
1x20KHz, 2x10KHz
Sum of Counter Frequency
800KHz
100KHz
80KHz
PLC N:N
support
RTC
support(power down keeping at least 3years)
Constant Sanning Mode
support
Digital Filter
0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable
Feature
Description
Programming Software
Free MCprogrammer
Program Security
download, upload, program password
Programming Language
ladder, instruction, SFC
Communication Protocol
programming protocol, Modbus, CAN and free port, MXLink
Expansion Module
I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et
For more details, kindly contact us.
MU2V Model:
Model
I/O
Serial Port
CAN
Output Type
Integrated
 Extended Ability
Size/mm
MU2V-1616MT
16/16
Port 0: RS232,

Port 1: RS485 (extendable)
-
transistor
8X200kHz pulse output (support 4xdifferential)
8xspecial function module, 10xI/O extended module
158x90x83
MU2V-1616MT-CAN
Y
MU2V-1616MT1
-
4X200kHz pulse output (support 4xdifferential)
MU2V-1616MT1-CAN
Y
MU2V-2828MT
28/28
-
8X200kHz pulse output (support 4xdifferential input, 4xdifferential output )
226x90x83
MU2V-2828MT-CAN
Y
Special function module (analog, thermal resistence, thermocouple, weight, high precision analog, etc) are available.
Feature

Multi Axis Control: MU2V series plc controller programmable logic controller supports totally 8*200KHz pulse input and outptut, without any the other separate extended I/O module and speial function module.

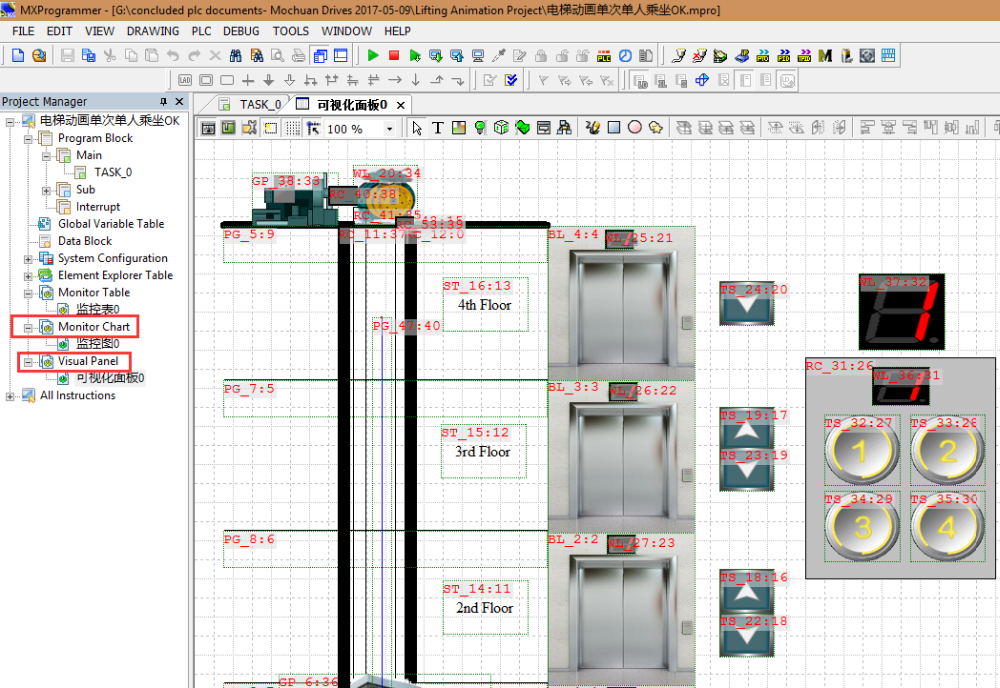

Visual Panel and Oscilliscope: visual panel makes monitoring online Demo more vivid; oscilliscope makes fault easier found in debugging process.

Integrates PID function: MU2H MU2V series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.

Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.
