Built-in 3x100KHz pulse input output.
Supporting extend 8pcs special function module.
16/16, 32/32
Wuxi Mochuan Drives Technology Co.,Ltd has gained a remarkable position in the concerned industry through years of efforts, and there is a great possibility that the company will achieve a greater advancement in the future. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of PLC, PAC, & Dedicated Controllers. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Wuxi Mochuan Drives Technology Co.,Ltd believe that we will stay ahead of other competitors in the future.
Place of Origin: | Jiangsu, China | Brand Name: | Mochuan |
Model Number: | MU2V-2828MT | Input/Output point: | 28/28 |
Program CPU: | 32K | Pulse Output: | 8x200KHz |
Processing Speed: | 0.005μs/step | Diffential input output: | 4x200kHz, 8X200Khz in optional |
Pulse Type: | pulse+direction, plus/minus, AB phase | Software: | free |
Certificate Number | 1105217 |
Origanization | EC DECLARATION OF CONFORMITY |
Declare the product | |
Date & Time | 02/06/2011 |
Test Standard | EN60950-1:2006+A11:2009 |
Certificate for | EC Low Voltage |
molding control rs485 modbus 56i/o programmable plc controller modbus tcp | ||||||
MU2V | MU2H | MU1H | ||||
I/O Point | 16/16, 28/28 | 16/16, 32/32 | 08/06, 12/08, 16/10, 16/14, 36/24 | |||
Max Logical I/O | 512 | 512 | 512 | |||
Max Special Function Module | 8 | 8 | 2 I/O and analog module | |||
Program Capacity | 32K | 24K | 12K | |||
Pulse output | 8x200KHz 4differential output | 3x100KHz( transistor output) | 2x100KHz( transistor output, relay input) | |||
One-phase Counting Channel | 8x200KHz | 2*50KHz, 4x10KHz | ||||
Two-phase Counting Channel | 4x200KHz | 1x25KHz, 2x5KHz | 1x20KHz, 2x10KHz | |||
Sum of Counter Frequency | 800KHz | 100KHz | 80KHz | |||
PLC N:N | support | |||||
RTC | support(power down keeping at least 3years) | |||||
Constant Sanning Mode | support | |||||
Digital Filter | 0.8, 1.6, 3.2, 6.4, 12.8, 25.6, 51.2, adjustable | |||||
Feature | Description | |||||
Programming Software | Free MCprogrammer | |||||
Program Security | download, upload, program password | |||||
Programming Language | ladder, instruction, SFC | |||||
Communication Protocol | programming protocol, Modbus, CAN and free port, MXLink | |||||
Expansion Module | I/O extension module, AD/DA, thermal resistance, thermal couple, pulse, weighting, et | |||||
For more details data sheet of them, just contact us. |
MU1H Models: | ||||||||||||
Model | I/O | Serial Port | CAN | Output Type | Integrated Pulse | Dimension /mm | ||||||
MU2V-1616MT | 16I/16O | port0: rs232 port1: rs485 (extendable) | - | transistor | 8x200kHz output | 158x90x83 | ||||||
MU2V-1616MT-CAN | Y | |||||||||||
MU2V-1616MT1 | - | 4x200kHz output | ||||||||||
MU2V-1616MT1-CAN | Y | |||||||||||
MU2V-2828MT | 28I/280 | - | 8x200kHz (4xdifferential input, 4xdifferential output) | 226x90x83 | ||||||||
MU2V-2828MT-CAN | Y | |||||||||||
Support special functional module: analog/thermocouple/ thermal resistance/ pulse/ high precision analog/ weight.. |
Multi Axis Control: MU2V series plc controller programmable logic controller supports totally 8*200KHz pulse input and outptut, without any the other separate extended I/O module and speial function module.

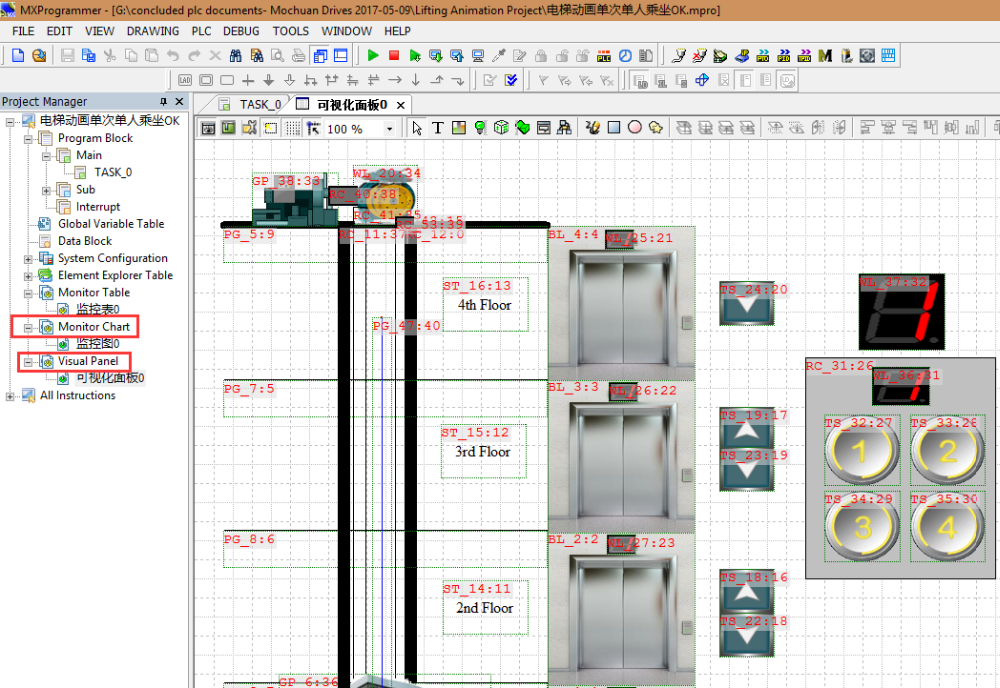

Visual Panel and Oscilliscope: visual panel makes monitoring online Demo more vivid; oscilliscope makes fault easier found in debugging process.
Integrates PID function: MU2H MU2V series main module integrates temperature control function, matched with MU2H series TC, PT module, Max 32road TPID could not made supporting the self-determining function of TPID parameter.
Three Programming Language: ladder, instruction list, SFC which could be interconverted. As for conversion between ladder and instruction list, annotation could be kept.
With more than 15-years domestic market development since 2002 and around 3-years foreign business since 2015 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, IE4 ac 3phase pmsm motor and position sensor. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
Built-in 3x100KHz pulse input output.
Supporting extend 8pcs special function module.
16/16, 32/32
Integrated analog input output.
Built-in 2x100KHz pulse input output.
Supporing extend 2pcs i/o and special function module.
7'', 9.7'', 15'', 17'' 22'', 23''
4.3'', 7'', 9.7''10.4'', 12.1'', 15''
4.3'', 7'', 9.7''
More than 30,000 designs of position sensor switch.
Inductive proximity switch, capacitive proximity switch
Photoelectric sensor swtich
φ4, φ5, φ6, M5, M8, M12, M18, M30
Square, combined, cylinder type
Supporting sample purchase, OME&ODM
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
