Mochuan HMI Touch Screen Panel Multi-Touch Capacitive HMI MC5097C

Name: Mochuan HMI Touch Screen Panel Multi-Touch Capacitive HMI MC5097C
Uploaded: 2022-08-19T18:11:15+08:00
Duration: 45 s
Description: Mochuan 9.7 inch HMI MC5097X is a multi-touch capacitive hmi, with 1024x768 resolution. And there are com1 com2 com3 com4 with rs485, rs232, rs422 and ethernet to communicate. The big different with 9.7inch M010 is resolution, serial communication and metal of the shell and different installation way.

Mochuan 9.7 inch HMI MC5097X is a multi-touch capacitive hmi, with 1024x768 resolution. And there are com1 com2 com3 com4 with rs485, rs232, rs422 and ethernet to communicate. The big different with 9.7inch M010 is resolution, serial communication and metal of the shell and different installation way.

SEND INQUIRY NOW

Type:: LCD

shipping:: Within 7days after confirmation

Model Number:: MC5097X

Screen Size:: 9.7"

Resolution:: 1024x768

Ethernet:: 10M/100M Self-adoption

samples:: NO MOQ, 1pcs Is OK

Screen Type:: Capacitive

Supplier Type:: Original manufacturer

Voltage(V):: 24VDC

CPU:: 600MHz ARM Cortex-A8

Color:: black

Bit Color:: 24bits color

COM Port:: COM1,COM2,COM3,COM4,RS485,RS232,RS422

SEND INQUIRY NOW

Product Details

WHY MOCHUAN HMI

1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;

MARKET BRAND HMI

1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.

MC5097X Parameter

/ 9.7'' Multi Touch Capacitive HMI

You May Interested In.

MOCHUAN DRIVES All 7'' HMI Model Parameters Comparison Diagram, Click Here To Learn More.

Model	9.7Inch MC5097 Multi-Touch Capacitive HMI Panel
Touch Screen Type	Glass+Glass Projective Multi-Touch
CPU	600MHZ ARM Cortex-A8 + 128M Flash+128MB DDR3
Display	LCD Visual Angle	85'/85'/85'/85'
	Screen Size	9.7inch 4:3 tft lcd screen
	Resolution	1024x768
	Colors	24-bits
	Brightness	350cd/m2
	BackLight	LED
	BackLife	50000 Hours
Storage	Flash/ARM	128MB Flash+ 128MB DDR3
	SD Card	Support
	RTC	Built-in
Ports	Serial Port	COM1/COM2:RS232/RS485/RS422; COM3/COM4:RS232
	Ethernet	1x 10M/100M Self-Adaption
	Download Project	USB Disk/ USB Device/ Ethernet
Power	Power Supply	DC24V, Working Range: DC9V~DC28V
	Rated Power	＜10W
	Power Protection	Protected From Thunder Strike And Surging
	Power Down	＜5mS
	Operating Humidity	10~90% RH( No Condensation)
	Vibration Endurance	10~25HZ (X,Y,Z 2G/30Min)
Dimension	Shell Material	Aluminium Alloy + Engineering Plastic
	Dimension(mm)	247mm x 197mm x 31.5mm
	Panel Cutout(mm)	232mm x 182mm
	Weight(g)	1250g
Environment	Protection	Front IP65( with NEMA panel), Back IP20
	Temperature Operate	-10°C~60°C
	Temperature Storage	-20°C~70°C
The others	Certificate	CE
	Communication Protocol	Standard Modbus( RTU, TCP/IP)
	Programming Software	Free Mochuanstudio

Deserve To Know

/ Service from Mochuan

1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

MC5097X 9.7 inch HMI Panel Clearness, High Brightness, Transparent

Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent, like the apple mobile, will bring the user different experience. For now the only bright spots in the indstury market, will be easy to win in your competitor. The display resolution is the number of pixels displayed on the screen.For example, the resolution of 1920x1080 means that the number of pixels in the horizontal direction is 1920 and the number of pixels in the vertical direction is 1080. When the HMI touch screen panel size is the same, the higher resolution, the better of the display effect, fine and delicate. With more brilliant colors, wider viewing angles, higher brightness and clearer resolution. The HMI touch screen monitor resolution is high, which improves the viewing experience and visual impact in advance. At the same time, it can realize 4K display, industrial-grade panel, stable and durable, support continuous booting, high brightness, no reflection phenomenon, suitable for long events, close viewing, high contrast ratio, Rich colors, with splicing function, support for cross-screen overlay, roaming overlay display, mature technology, low after-sales rate.

More Features

/ 9.7'' MC5097X HMI Panel

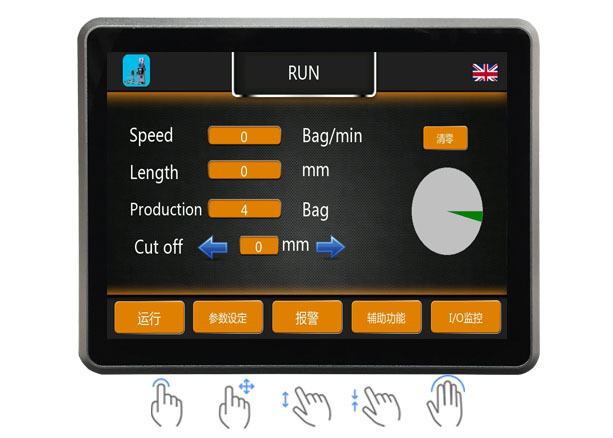

Multi-Touch Capacitive HMI Touch Screen Panel

Supporting multi-touch and gesture, specific page effect can be realized. To upgrade the latest advances in human computer interaction technilogy, easily completing complex tasks between point and click.

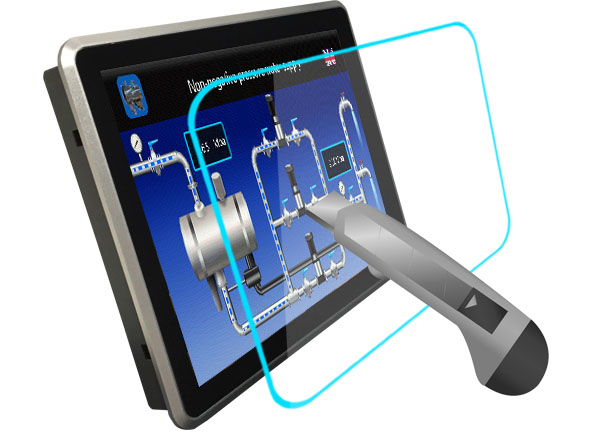

Scratch Resistant, Without Drift

Aapoting Glass+Glass touch screen, high hardness, scratch-resistitance, long-term use without scratchs and wear, No resistive type HMI touch drift problem, long time stability and reliablity.

Strong Environmental Adaptability

HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, no matter it is a wet underground mine, high temperature gobi or factory environment with corrosive gas, oil mist or dust, it can easily cope with its ease.

Strong Anti-Interference

The design has fully considered the complex electromagnetic compatibility environment of industrial sites, in line with IEC standards, while the wide voltage input design, power fluctuations can still be used safely.

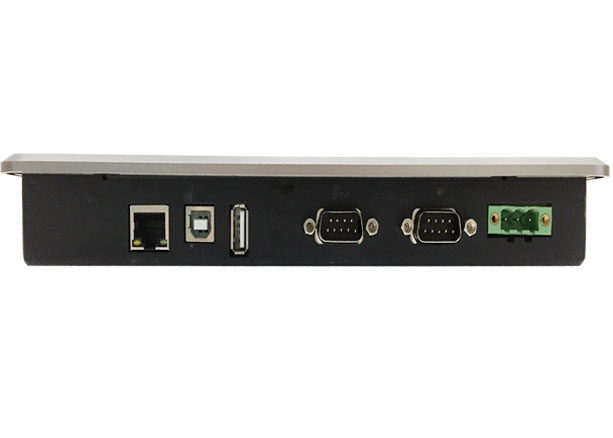

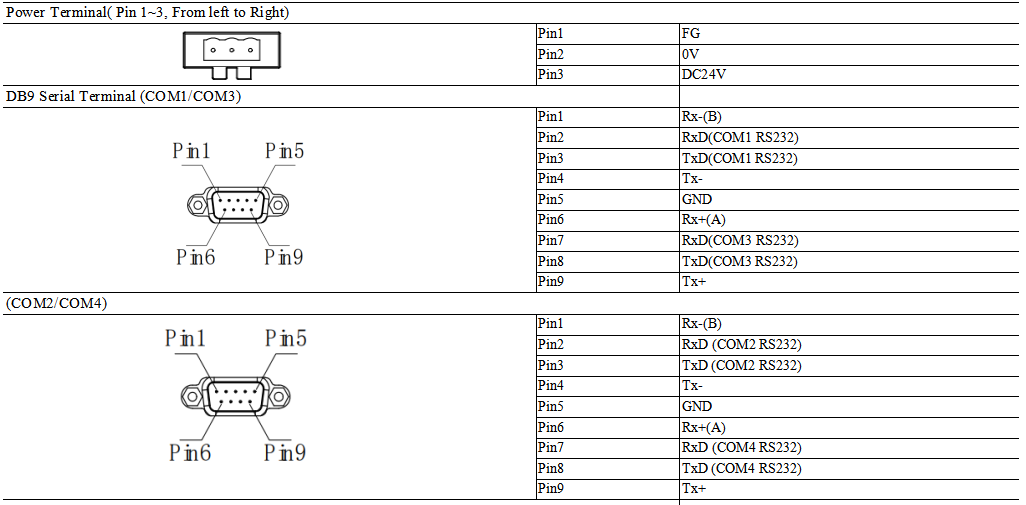

MC5097X Ports Description

/ MC5097X HMI

FAQ

/ MOCHUAN HMI

1. Is the MC5097X 9.7Inch HMI software free or to charge?

Mochuan HMI software Mochuanstudio is free for the user, you can take from" download-software" if you need.

2. What is guarantee of HMI MC5097X do you offer?

7days refund in case of bad quality; And 36months warranty.

3. What technical of HMI support do you offer?

Offering demo, pdf description file, video and technical supporting one-to-one online, through creating group only for you, to fast solve the technical, if you work with us.

4. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model HMI for the project", trusting it will be some helpful on selecting hmi model and type.

5. Is there any service, if change another brand HMI tobe Mochuan's?

Yes, providing translation engineering file services, if you wanna switch to be Mochuan HMI.

6. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
