|Model||7Inch M007 Multi-Touch Capacitive HMI Panel|
|Touch Screen Type||Glass+Glass Projective Multi-Touch|
|CPU||600MHZ ARM Cortex-A8 + 128M Flash+128MB DDR3|
|LCD Visual Angle||70'/70'/75'/75'|
|Screen Size||7inch 16:9 tft lcd screen|
|Flash/ARM||128MB Flash+ 128MB DDR3|
|Serial Port||COM1:RS232/RS485/RS422; COM2/COM4:RS485; COM3:RS232|
|Ethernet||1x 10M/100M Self-Adaption|
|Download Project||USB Disk/ USB Device/ Ethernet|
|Power Supply||DC24V, Working Range: DC9V~DC28V|
|Power Protection||Protected From Thunder Strike And Surging|
|Operating Humidity||10~90% RH( No Condensation)|
|Vibration Endurance||10~25HZ (X,Y,Z 2G/30Min)|
|Shell Material||Aluminium Alloy + Engineering Plastic|
|Dimension(mm)||185.1mm x 131.1mm x 30mm|
|Panel Cutout(mm)||178mm x 135mm|
|Protection||Front IP65( with NEMA panel), Back IP20|
|Communication Protocol||Standard Modbus( RTU, TCP/IP)|
|Programming Software||Free Mochuanstudio|
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

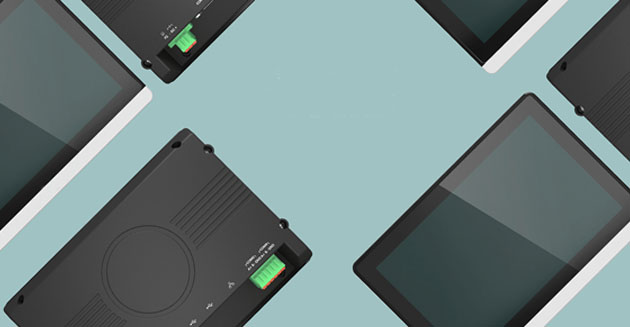

M007 7Inch Clearness, Transparent
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent, like the apple mobile, will bring the user different experience. The display resolution is the number of pixels displayed on the screen.For example, the resolution of 1920x1080 The display resolution is the number of pixels displayed on the screen.For example, the resolution of 1920x1080 means that the number of pixels in the horizontal direction is 1920 and the number of pixels in the vertical direction is 1080. When the HMI touch screen panel size is the same, the higher resolution, the better of the display effect, fine and delicate.
Mochuan M007 7inch Support Multi-Touch
Compared to resistive screens, capacitive screens do not need to be pressed vigorously can also be reflected, more sensitive; in addition, its principle, it is easy to support multi-touch; because it does not need to pass current, more power saving, not easy to heat up; longer life, more durable.
Mochuan HMI Very High Brigthness
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent, like the apple mobile, will bring the user different experience. For now the only bright spots in the indstury market, will be easy to win in your competitor, 7'' M007 with 1024x600 resolution.
Scratch Resistant, Without Drift
Aapoting Glass+Glass touch screen, high hardness, scratch-resistitance, long-term use without scratchs and wear, No resistive type HMI touch drift problem, long time stability and reliablity. No matter in wet underground mines, The high temperature next door is still corrosive gas, oil mist or dust in the factory environment or working conditions, which can be easily dealt with, and it can easily achieve moisture, high temperature, corrosion, oil
Wuxi Mochuan Drives Technology Co.,Ltd is an industrial product manufacturer and system solution integration company, we specialize in manufacturing HMI human machine interface
panel, plc programmable logic controller
, standard and customize pmsm motors, to provide csutomers with a complete set of electrical control solutions.
1. Domestic since 2009, to apply the different industries. To accumulate a rich field experience.
2. International since 2015, is very popular in European&American market.
OUR VALUE IS QUALITY IS OUR CULTURE.( 3factores+300workers+multi designs+OEM&ODM+NO MOQ,small order+quick shipping). 90% of our production equipment is imported from Japan and Germany to offer our customers that best competitive advantage PRODUCTS. Welcome to be ONE OF OUR TOP "VIP" CUSTSOMERS. We believe that" THE QUALITY IS THE SOUL OF AN ENTERPRISE". With us your Money in safe, Your Business in safe. Welcome to contact us.
mist and dust resistance.
Capacitive Multi-Touch HMI
Plastic Economic Resistive HMI
7inch MC-H070/ MC-H070W
Metal Shell Wide-Temperature Resistive HMI
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Material of Shell: ABS
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
With very strong CPU 1GHz CortexTM-A7 and 4GB Flash+128MB DDR3.
Material of Shell: Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charge?
Mochuan HMI Software Mochuanstudio is free for the user. You can take from"download-software" if you need.
2. What is guarantee do you offer?
7days refund in case any bad quality; And 36months warranty.
3. What technical support do you offer?
Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.
4. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.
5. Is there any service, if swtich another brand hmi to be Mochuan's?
Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.
6. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
