WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through publick service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through publick service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC4070E Parameter

/ 7'' Wide-temperature Metal RS485 Resistive HMI



Model7Inch MC4070E Metal Resistive HMI
Touch Screen Type4wire resistive touch screen
CPU600MHZ ARM9 Cortex-A8






Display

LCD Visual Angle50'/70'/70'/70'
Screen Size7inch  16:9 tft lcd screen
Resolution800x480
Colors24bits
Brightness360cd/m2
BackLightLED
BackLife50000 Hours


Storage

Flash/ARM128MB Flash+128ARM DDR3
SD CardSupport
RTCBuilt-in



Ports

Serial PortCOM1/COM2:RS232/RS485/RS422;  COM3/COM4:RS232
Ethernet1x10M/100M Self-Adaptin
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminum Alloy + Galvanized Sheet Powder Spraying
Dimension(mm)200mm x 146mm x 40mm
Panel Cutout(mm)192mm x 138mm
Weight(g)1080g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-20°C~70°C
Temperature Storage-30°C~80°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU, TCP/IP)
Programming SoftwareFree Mochuanstudio
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC4070E 7Inch Ethernet Metal Enclosure, Fine Heat Dispersion And Strong Anti-Interference

Mochuan 4.3Inc MC4043E is metal enclosure, fine heat dispersion and strong anti-interference. Metal enclosure, fine heat dispersion and strong anti-interference.In the high frequency electromagnetic field, the use of thin layer of metal as a shell or lining material can achieve good shielding effect,


More Features
/ 7'' MC4070E HMI




Mochuan 7inch MC4070E With Very Strong CPU


ARM CortexA8 processor, high speed and easy flow, supporting animation formats.The outstanding run rate and power efficiency of the Cortex-A8 processor is achieved through the new ARM Artisan® Advantage - CE library that supports and enables advanced leakage control. This processor is supported by a wide range of ARM technologies for fast system design.

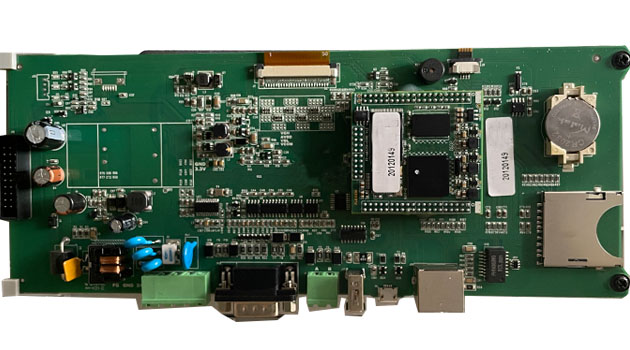

Adopting Industrial Isolated Power Module
MC4070E 7Inch HMI adopt Industrial isolated power module, the surface is with spray coating treatment and applicable to various harsh environment. In the application process of the product power isolation chip for power isolation design is very important, if the environmental requirements of power isolation is not taken into account will lead to system instability.

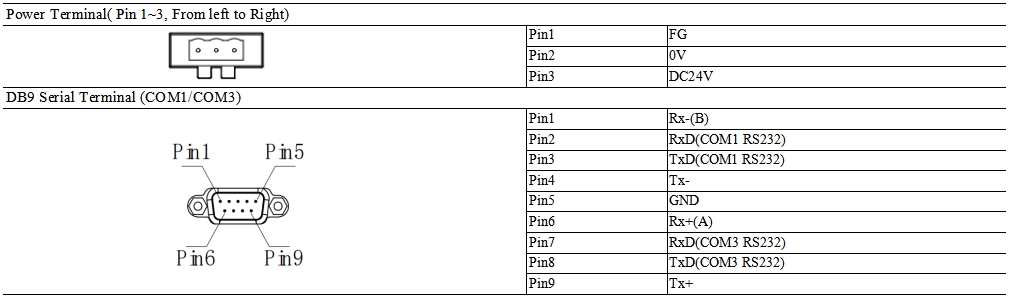

MC4070E Ports Description
/ 7'' MC4070E HMI





si
Related Products
/ Mochuan HMI




Capacitive Multi-Touch HMI

7inch M007

9.7inch M010

9.7inch MC5097X

17inch MC5170

22inch MC5220


Plastic Economic Resistive HMI

4.3inch MC-H043S

7inch MC-H070/ MC-H070W

7inch MC-H070S/MC-H070SW

10.1inch MC-H100/MC-H100W/MC-H100D

10.1inch MC-H100E/MC-H100EW/MC-H100DE

15.6inch MC-H156E

Metal Shell Wide-Temperature Resistive HMI

4.3inch MC4043E

7inch MC4070M

7inch MC4070E

9.7inch MC4097X

12.1inch MC4121X

15inch MC4150X




Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;


Feature:

New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;


Material of Shell: ABS


Feature:

7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;




Material of Shell:  Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.


Feature:

Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;

FAQ
/ MOCHUAN HMI



1. What technical support do you offer?

Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.


2. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.


3. Is there any service, if swtich another brand hmi to be Mochuan's?

Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.


4. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
