MOCHUAN smart hmi panel touch screen industrial Plastic ethernet rs485 ip65 tft lcd for plc compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN smart hmi panel touch screen industrial Plastic ethernet rs485 ip65 tft lcd for plc can be customized according to your needs.
Advanced technologies are applied to the product manufacturing process.In the field(s), such as Touch Screen Monitors, mini smart hmi panel touch screen industrial enjoys enhanced visibility and wide uses.
| Model | MC-H100ED | |
|---|---|---|
| Touch Screen Type | 4wire resistive touch screen | |
| Color of Shell | Black | |
| CPU | 1G ARM Cortex-A8 | |
Display | LCD Visual Angle | 85'/85'/85'/85' |
| Screen Size | 10.1'' 16:9 tft lcd screen | |
| Resolution | 1024x 600 | |
| Colors | 24 bits | |
| Brightness | 400cd/m² | |
| BackLight | LED | |
| BackLife | 50000 Hours | |
Storage | Memory | 128M Flash+128M DDR3 |
| SD Card | N/A | |
| RTC | Built-in | |

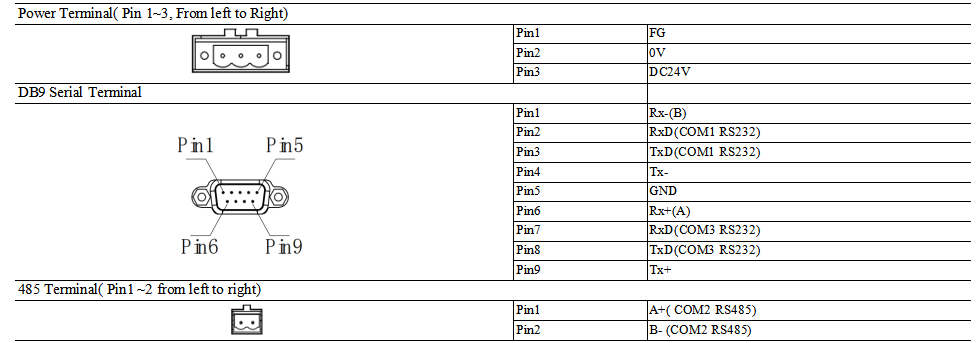

Ports | Serial Port | COM1:RS232/RS485/RS422; COM3:RS232 |
| Ethernet | N/A | |
| Download Project | USB Disk/ USB Device | |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
| Rated Power | ＜10W | |
| Power Protection | Protected From Thunder Strike And Surging | |
| Power Down | ＜5mS | |
| Operating Humidity | 10~90% RH( No Condensation) | |
| Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Engineering Plastic |
| Dimension(mm) | 274mm x 193mm x36.2mm | |
| Panel Cutout(mm) | 261mm x 180mm | |
| Weight(g) | 900g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
| Temperature Operate | 0°C~50°C | |
| Temperature Storage | -20°C~60°C | |
The others | Certificate | CE |
| Communication Protocol | Standard Modbus( RTU,) | |
| Programming Software | Free Mochuanstudio 2.8.11490.0 | |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Mochuan 10.1inch MC-H100ED, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.
Multi-choose of 10.1'' Ethernet HMI Panel
There are MC-H100E, MC-H100EW, MC-H100ED 10.1'' are supporting ethernet HMI. For more information, kindly have a look our catalog to learn more. The MC-H100ED with a small panel cutout 261mm x 180mm. And the other's model of 10.1'' panel cutout is 260mm x 202mm. To choose them per the project requirement.
Mochuan HMI Panel With Very Strong CPU
ARM CortexA8 processor, high speed and easy flow, supporting animation formats. The ARM Cortex-A8 processor is the 1st application processor based on the ARMv7 architecture and is the highest performance and most power efficient processor ever developed by ARM. with rates in the 600MHz to over 1GHz range, the Cortex-A8 processor is capable of meeting the requirements of mobile devices that need to operate at power-optimized rates below 300mW; and Meet the requirements of consumer applications that require the performance optimization of 2000 Dhrystone MIPS.
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
4.3inch MC-H043S
7inch MC-H070/ MC-H070W
7inch MC-H070S/MC-H070SW
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charge?
Mochuan HMI software is free for the user, You can take from "download-software" if you need.
2. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two munites to read this article" how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.
3. Is there any service, if change another brand HMI to be Mochuan?
Yes, Providing translation engineering files services, if you wanna switch to be Mochuan HMI brand.
4. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
