MC-H100D Parameters
/ 10.1'' Resistive rs485 RTU HMI Monitor




ModelMC-H100D
Touch Screen Type4wire resistive touch screen
Color of ShellBlack
CPU1G ARM Cortex-A8






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size10.1'' 16:9 tft lcd screen
Resolution1024x 600
Colors24 bits
Brightness400cd/m²
BackLightLED
BackLife50000 Hours


Storage

Memory128M Flash+128M DDR3
SD CardN/A
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422;  COM3:RS232
EthernetN/A
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialEngineering Plastic
Dimension(mm)274mm x 193mm x36.2mm
Panel Cutout(mm)261mm x 180mm
Weight(g)900g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate0°C~50°C
Temperature Storage-20°C~60°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU,)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC-H100ED 10.1Inch Clearness, High Brightness, High advantage competitive

Mochuan 10.1inch MC-H100ED, with ethernet rs485 and 261mm x 180mm panel cutout. the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.


More Features
/ 10.1'' MC-H100ED Ethernt tcp Resistive HMI




MOCHUAN 10.1'' HMI With A Very Strong CPU


ARM CortexA8 processor, high speed and easy flow, supporting animation formats.The outstanding run rate and power efficiency of the Cortex-A8 processor is achieved through the new ARM Artisan® Advantage - CE library that supports and enables advanced leakage control. This processor is supported by a wide range of ARM technologies for fast system design.





Strong Environmental Adaptability
HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, Industrial isolated power module, the surface is with spray coating treatment and applicable to various harsh environment. In the application process of the product power isolation chip for power isolation design is very important, if the environmental requirements of power isolation is not taken into account will lead to system instability.

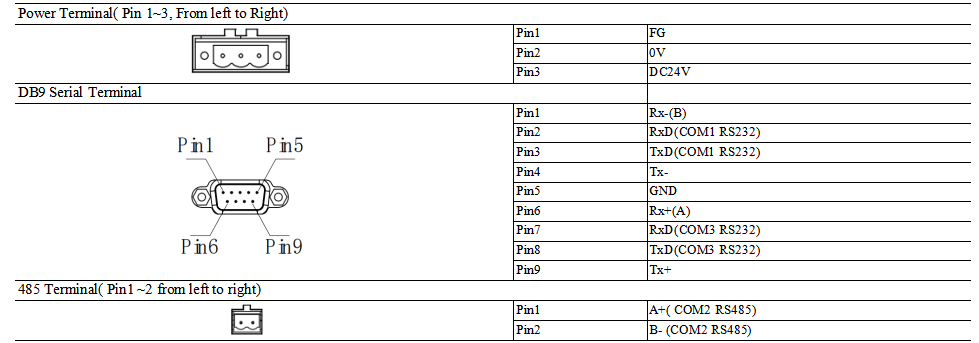

MC-H100ED Ports Description
/ 10.1'' Ethernet MC-H100D HMI
