WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC1010M Parameters

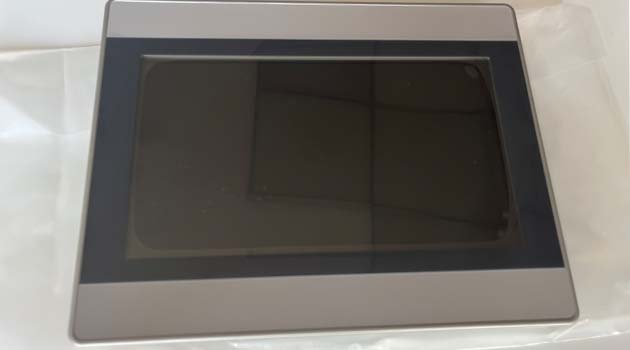

/ 10.1'' Resistive Ethernet HMI Monitor




ModelMC1010M
Touch Screen Type4wire resistive touch screen
Color of ShellWhite
CPU4core 1.2GHz ARM Cortex-A7






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size10.1'' 16:9 tft lcd screen
Resolution1024x600
Colors24 bits
Brightness400cd/m²
BackLightLED
BackLife50000 Hours


Storage

Memory4GB EMMC + 256MB DDR3
SD CardMicro SD (TF) card ( FAT32,  not over 32G)
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422;  COM2:RS422/RS485; COM3:RS232
Ethernet10M/100M Self-adaption
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC18V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminum Alloy + Galvanized sheet powder spraying
Dimension(mm)260mm x 202mm
Panel Cutout(mm)274mm x 214mm x 39mm, thickness 26mm
Weight(g)1480g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-10°C~60°C
Temperature Storage-20°C~70°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU,)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

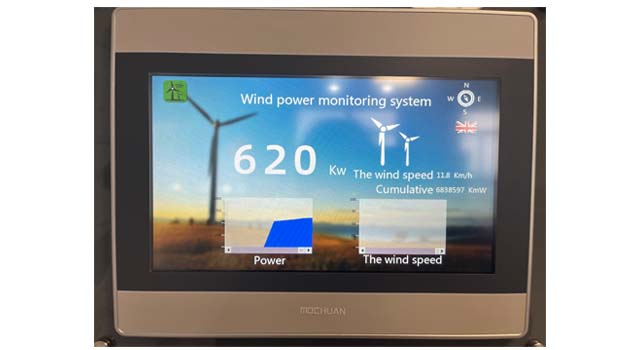

MC1010M 10.1Inch Clearness, High Brightness, High advantage competitive

Mochuan 10.1inch MC1010M, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. With 1024x600 reolution, and 600MHz ARM Cortex-A8 strong cpu.






MC1010M Ports Description
/ MC1010M ethernet 600MHz ARM Cortex-A8 HMI





si
FAQ
/ MOCHUAN HMI



1. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model HMI for the project"trusting it will be some helpful on selecting hmi model and type.


2. Is there any service, if switch another brand hmi to be Mochuan's?

Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.


3. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
