Mochuan HMI Panel Plc Modbus Programmable Tft waterproof ip65 modbus ethernet HMI Display Lcd 15 Inch MC4150X compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of Mochuan HMI Panel Plc Modbus Programmable Tft waterproof ip65 modbus ethernet HMI Display Lcd 15 Inch MC4150X can be customized according to your needs. 15 inch plc modbus programmable tft display lcd machine hmi controller has functions in a range of daily functions.Whatever the requirement is,you can find it at MOCHUAN. To purchase the product for sale in different types and with different features.
| Model | 15Inch MC4150X Metal Resistive HMI | |
|---|---|---|
| Touch Screen Type | 4wire resistive touch screen | |
| CPU | 600MHZ ARM9 Cortex-A8 | |
Display | LCD Visual Angle | 80'/80'/80'/80' |
| Screen Size | 15inch 4:3 tft lcd screen | |
| Resolution | 1024x768 | |
| Colors | 24bits | |
| Brightness | 400cd/m2 | |
| BackLight | LED | |
| BackLife | 50000 Hours | |
Storage | Flash/ARM | 128MB Flash+128ARM DDR3 |
| SD Card | Support | |
| RTC | Built-in | |

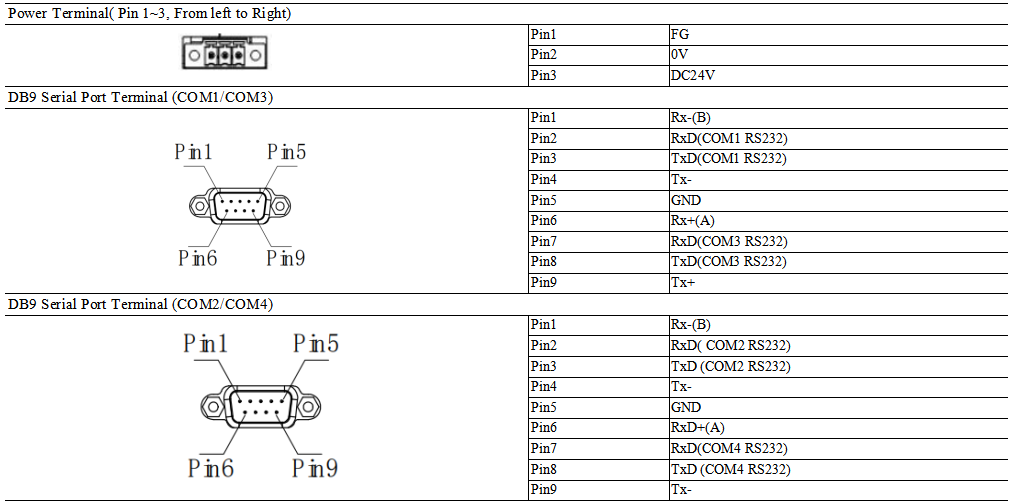

Ports | Serial Port | COM1/COM2:RS232/RS485/RS422; COM3/COM4:RS232 |
| Ethernet | 1x10M/100M Self-Adaptin | |
| Download Project | USB Disk/ USB Device | |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
| Rated Power | ＜15W | |
| Power Protection | Protected From Thunder Strike And Surging | |
| Power Down | ＜5mS | |
| Operating Humidity | 10~90% RH( No Condensation) | |
| Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Aluminum Alloy + Galvanized Sheet Powder Spraying |
| Dimension(mm) | 394mm x 297mm x 48.3mm | |
| Panel Cutout(mm) | 360mm x 272mm | |
| Weight(g) | 1200g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
| Temperature Operate | -20°C~70°C | |
| Temperature Storage | -30°C~80°C | |
The others | Certificate | CE |
| Communication Protocol | Standard Modbus( RTU, TCP/IP) | |
| Programming Software | Free Mochuanstudio | |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Mochuan 15Inc MC4150X Ethernet rs485 is metal enclosure, fine heat dispersion and strong anti-interference. Metal enclosure, fine heat dispersion and strong anti-interference. Metal housing has good shielding, can be directly grounded, better anti-interference performance.
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
4.3inch MC-H043S
7inch MC-H070/ MC-H070W
7inch MC-H070S/MC-H070SW
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charge?
Mochuan HMI Software Mochuanstudio is free for the user. You can take from"download-software" if you need.
2. What is guarantee do you offer?
7days refund in case any bad quality; And 36months warranty.
3. What technical support do you offer?
Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.
4. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.
5. Is there any service, if swtich another brand hmi to be Mochuan's?
Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.
6. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
