New hmi control panel Suppliers | MOCHUAN
  • New hmi control panel Suppliers | MOCHUAN

New hmi control panel Suppliers | MOCHUAN

The systematic quality control guarantees the high quality and excellent performance of the finished product.
Products Details
  • Feedback
  • After years of solid and rapid development, MOCHUAN has grown into one of the most professional and influential enterprises in China. hmi control panel We have been investing a lot in the product R&D, which turns out to be effective that we have developed hmi control panel. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The testing of the product is strictly conducted and thus it meets the quality standards.

    WHY MOCHUAN HMI
    1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public hotline telephone to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
    PK
    MARKET BRAND HMI
    1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public hotline telephone service, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
    9.7'' M010 Parameter

    / 9.7'' Multi Touch Capacitive HMI




    Model9.7Inch M010 Multi-Touch Capacitive HMI Panel
    Touch Screen TypeGlass+Glass Projective Multi-Touch
    CPU600MHZ ARM Cortex-A8 + 128M Flash+128MB DDR3






    Display

    LCD Visual Angle85'/85'/85'/85'
    Screen Size9.7inch  4:3 tft lcd screen
    Resolution1024x768
    Colors24bits
    Brightness350cd/m2
    BackLightLED
    BackLife50000 Hours


    Storage

    Flash/ARM128MB Flash+ 128MB DDR3
    SD CardSupport
    RTCBuilt-in



    Ports

    Serial PortCOM1:RS232/RS485/RS422; COM2/COM4:RS485; COM3:RS232
    Ethernet1x 10M/100M Self-Adaption
    Download ProjectUSB Disk/ USB Device/ Ethernet





    Power

    Power SupplyDC24V, Working Range: DC9V~DC28V
    Rated Power<8W
    Power ProtectionProtected From Thunder Strike And Surging
    Power Down<5mS
    Operating Humidity10~90% RH( No Condensation)
    Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



    Dimension

    Shell MaterialAluminium Alloy + Engineering Plastic
    Dimension(mm)247mm x 197mm x 31.5mm
    Panel Cutout(mm)230mm x 180mm
    Weight(g)1115g


    Environment

    ProtectionFront IP65( with NEMA panel), Back IP20
    Temperature Operate-10°C~60°C
    Temperature Storage-20°C~70°C


    The others

    CertificateCE
    Communication ProtocolStandard Modbus( RTU, TCP/IP)
    Programming SoftwareFree Mochuanstudio 2.8.11490.0
    Deserve To Know

    / Service from Mochuan



    1. 1. NO MOQ, 1pcs is OK.

    2. 2. 7days refund in case of bad quality; 36months warranty.

    3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

    4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

    5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

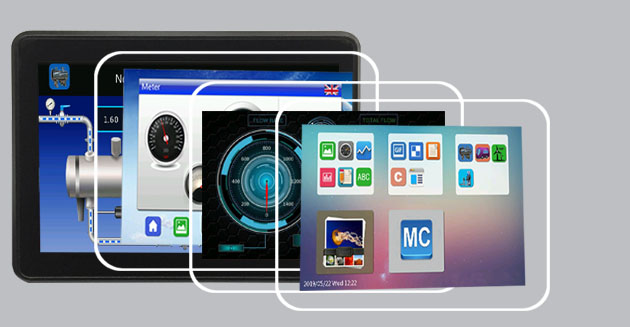

    M010 9.7Inch Clearness, High Brightness, Transparent
    Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent. The industrial TFT LCD display has a clear display effect. The current industrial tft lcd display is not what everyone thinks, which the resolution of the industrial tft lcd display is low. Because it is an industrial scene, the problem of clarity is ignored. The effect is clear, and many industrial tft lcd displays can achieve a 1080P display effect. This is easy to understand. Industrial equipment is expensive and frequently used. Therefore, our definition of industrial tft lcd displays is that they have a long service life and full Uninterrupted power supply, the service life can reach 5 to 10 years, the only way to meet the high standard requirements of industrial tft lcd display.
    More Features
    / 9.7'' M010 HMI




    Mochuan 9.7'' M010 HMI Support Multi Touch


    Capacitive touch screen is the use of the human body's current induction work. Capacitive touch screen is a four-layer composite glass screen, the inner surface of the glass screen and the interlayer is coated with a layer of ITO, the outermost layer is a thin layer of silica glass protection layer, the interlayer ITO coating as a working surface, four corners lead to four electrodes, the inner layer of ITO for the shielding layer to ensure a good working environment.


    Mochuan HMI Is IPS, Perfect Wide View


    The viewing angle of the industrial LCD touch screen is measured from the normal axis of the display screen in each of the four directions. In theory, the maximum angle is 90°, and the angle of each measurement direction may be different.


    Multi-Touch Capacitive HMI With Strong CPU
    ARM CortexA8 processor, high speed and easy flow, supporting animation formats.For the first time, the ARM Cortex-A8 processor brings desktop-level performance to a low cost, high volume product. The ARM Artisan library supporting Intelligent Energy Manger (IEM) technology and advanced leakage control techniques enable the Cortex-A8 processor to achieve exceptional speed and power efficiency. the Cortex-A8 processor is supported by a wide range of ARM technologies that enable fast system design. These include:RealView DEVELOPOER software development tools, RealView ARCHITECT ESL tools and models, CoreSight debug and trace technology, and software library support for the OpenMAX multimedia processing standard.
    M010 Ports Description
    / 9.7''M010 HMI





    si
    Related Products
    / Mochuan HMI




    Capacitive Multi-Touch HMI

    7inch M007

    9.7inch M010

    9.7inch MC5097X

    17inch MC5170

    22inch MC5220


    Plastic Economic Resistive HMI

    4.3inch MC-H043S

    7inch MC-H070/ MC-H070W

    7inch MC-H070S/MC-H070SW

    10.1inch MC-H100/MC-H100W/MC-H100D

    10.1inch MC-H100E/MC-H100EW/MC-H100DE

    15.6inch MC-H156E

    Metal Shell Wide-Temperature Resistive HMI

    4.3inch MC4043E

    7inch MC4070M

    7inch MC4070E

    9.7inch MC4097X

    12.1inch MC4121X

    15inch MC4150X




    Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;


    Feature:

    New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;


    Material of Shell: ABS


    Feature:

    7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;

    With very strong CPU 1GH CortexTM-A7 and 4GB Flash+128MB DDR3;





    Material of Shell:  Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.


    Feature:

    Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;

    FAQ
    / MOCHUAN HMI




    1. Do you have communication cable, such as rs232, usb transfer rs232 cable?

    Yes, we have.


    2. Is there any suggestion on selecting model of HMI?

    Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model hmi for the project". trusting it will be some helpful on selecting hmi model and type.


    3. Is there any service, if switch another brand hmi to be Mochuan's?

    Yes, providing translation engineering file services, if you wanna switch to be Mochuan HMI.


    4. Is there any certificate of HMI?

    Yes, Mochuan HMI support CE and RoHs.
