WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline , have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC-H100EW Parameters
/ 10.1'' Resistive rs485 ethernet HMI Monitor




ModelMC-H100EW
Touch Screen Type4wire resistive touch screen
Color of ShellWhite
CPU4core 1.2GHz ARM Cortex-A7






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size7'' 16:9 tft lcd screen
Resolution1024x600
Colors24bits
Brightness400cd/m²
BackLightLED
BackLife50000 Hours


Storage

Memory4GB EMMC + 256MB DDR3
SD CardSupport
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422;  COM2:RS485; COM3:RS232
Ethernet1X10M/100M Self-adaption
Download ProjectUSB Disk/ USB Device/Ethernet





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialEngineering Plastic
Dimension(mm)273mm x 231mm x 36mm
Panel Cutout(mm)260mm x 202mm
Weight(g)930g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate0°C~50°C
Temperature Storage-20°C~60°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU,)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC-H100EW 10.1Inch Clearness, High Brightness, High advantage competitive

Mochuan 10.1inch MC-H100EW with ethernet rs485 1024x600, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.




More Features
/ 10.1'' MC-H100EW Ethernet RS485 HMI




MOCHUAN 10.1'' HMI With A Very Strong CPU


ARM CortexA8 processor, high speed and easy flow, supporting animation formats. The ARM Cortex-A8 processor is the 1st application processor based on the ARMv7 architecture and is the highest performance and most power efficient processor ever developed by ARM. with rates in the 600MHz to over 1GHz range, the Cortex-A8 processor is capable of meeting the requirements of mobile devices that need to operate at power-optimized rates below 300mW; and Meet the requirements of consumer applications that require the performance optimization of 2000 Dhrystone MIPS.



Mochuan 10.1'' MC-H100EW High Resolution 1024x600
10.1inch Mochuan HMI  industrial TFT LCD display has a clear display effect. The current industrial tft lcd display is not what everyone thinks, which the resolution of the industrial tft lcd display is low. Because it is an industrial scene, the problem of clarity is ignored. The effect is clear, and many industrial tft lcd displays can achieve a 1080P display effect. This is easy to understand. Industrial equipment is expensive and frequently used. Therefore, our definition of industrial tft lcd displays is that they have a long service life and full Uninterrupted power supply, the service life can reach 5 to 10 years, the only way to meet the high standard requirements of industrial tft lcd display. Ultra HD display available in 7'' 10'' 15.6'' Equipped with 24-bit color, refuse to blur.

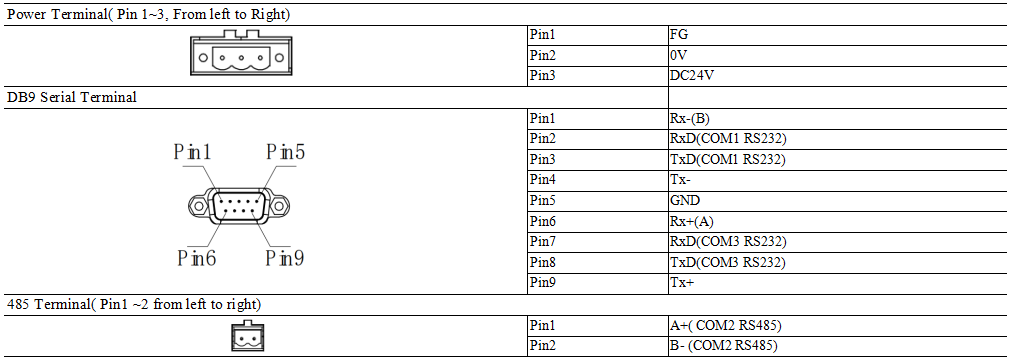

MC-H100EW Ports Description
/ 10.1'' MC-H100EW ethernet rs485 HMI





si
FAQ
/ MOCHUAN HMI




1. What technical support do you offer?

Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.


2. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.


3. Is there any service, if swtich another brand hmi to be Mochuan's?

Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.


4. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
