The Feature of 10.1'' M101 HMI


1. Innovative structure design, with 7 "man-machine interface hole size.

2. The body of the new 10.1 "widescreen narrow frame provides a new visual experience. Beautiful shape, compact size, suitable for more small and medium-sized equipment and

Application scenario. Magnetic suction front panel and fixed frame design for single person installation convenience.


M101 Parameter

/ 10.1'' Multi Touch Capacitive HMI




Model10.1'' M101 Multi-Touch Capacitive HMI Panel
Touch Screen TypeGlass+Glass Projective Multi-Touch
CPU4Core 1.2G ARM Cortex-A7






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size10.1''  16:10 tft lcd screen
Resolution800x1280; 1280x800
Colors24 bits
Brightness400cd/m2
BackLightLED
BackLife50000 Hours


Storage

Flash/ARM4GB Flash+ 128MB DDR3
SD CardN/A
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422; COM2:RS485; COM3:RS232
Ethernet1x 10M/100M Self-Adaption
Download ProjectUSB Disk/ USB Device/ Ethernet

Speaker Built-in





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminium Alloy + Engineering Plastic
Dimension(mm)249mm x 158mm x 30mm
Panel Cutout(mm)192mm x 138mm
Weight(g)1500g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-10°C~70°C
Temperature Storage-20°C~70°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU, TCP/IP)
Programming SoftwareFree Mochuanstudio
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


M101 10.1Inch Clearness, High Brightness, Transparent

Mochuan multi touch capacitive M101 10.1'' is a high resolution high brightness screen that supports video and audio playback, if your project requires video or audio playback functions or requires horizontal or veritcal display of different scenes, this model is the best choice. With nice cost and good performance. Multi COM port and ethernet for communication.

More Features
/ 10.1'' M101 HMI

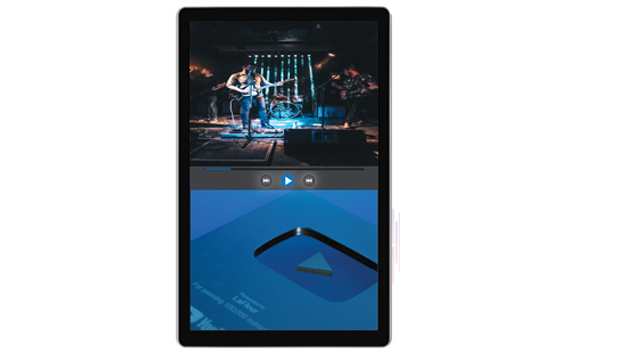

M101 10.1'' Supports Video and Audio play

The M101 10.1'' HMI product uses a powerful 4-core 1.2G chip, supporting video and audio playback without any delay. In addition to replacing tradition buzzer, this touchscreen hmi built-in speaker, better sound quality.

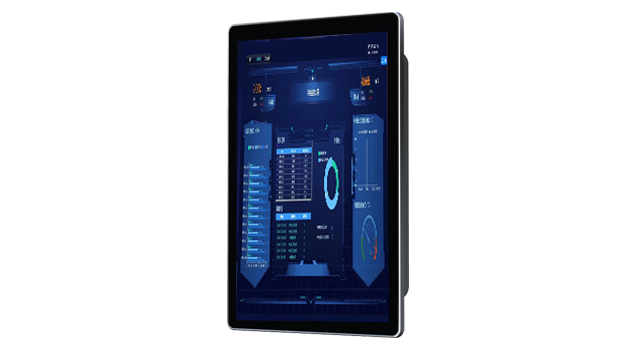

HD, High Brightness, Full View
The Maximum viewing angle is 170°, M101 10.1'' HMI adopts IPS true color LCD screen with 1280x800 or 800x1280 resolution. With Max viewing angle 170°, easy to view and operate the touchscreen HMI.

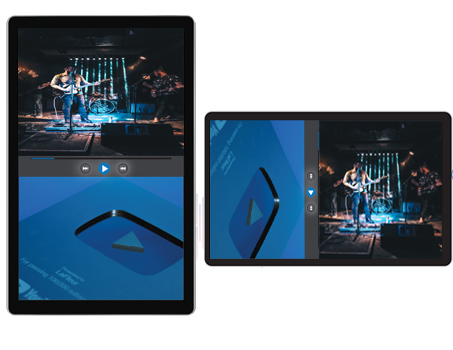

M101 10.1'' HMI support landscape or portrait screen, equally harmonious and beautiful to display.
HMI narrow bezel design markes M101 10.1'' hmi either landscape use or portrait use, with the same beautfil coordination, suitable for differenet application scenarios.

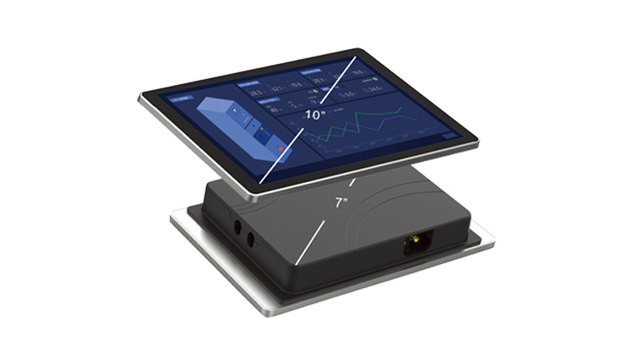

M101 HMI 10'' exterior, with 7'' panel cutout only
The design of M101 10.1'' hmi is characterized by a narrow bezel with a screen up to 10'' and a rear shell. The size of the hole is only 7inches, which is a large screen and small body size.

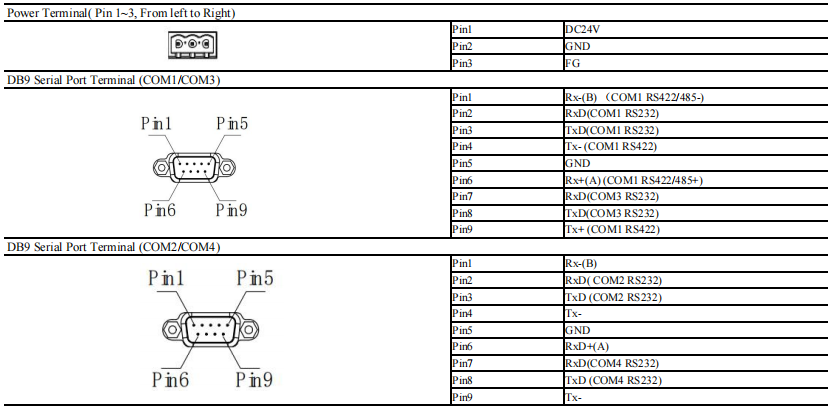

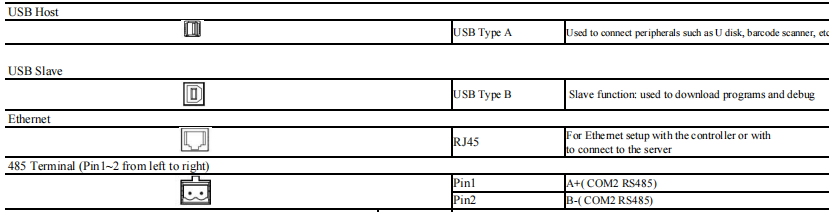

M101 Ports Description
/ 10.1Inch M101 HMI
