MOCHUAN - modbus industrial tft lcd 22inch capacitive easy view touch screen hmi MC5220 compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN - modbus industrial tft lcd 22inch capacitive easy view touch screen hmi MC5220 can be customized according to your needs. MC5220 22inch is a capacitive multi touch industrial hmi, 16:9 tft lcd screen, with 1920x1080 high resolution, 800MHz ARM Cortex-A8 CPU and 256MB Flash+ 256MB DDR3 memory to meet the high requirement of the project. And there are com1 com2 com3 with rs485 rs232 rs422 and ethernet to select on communication.
|Model||7Inch M007 Multi-Touch Capacitive HMI Panel|
|Touch Screen Type||Glass+Glass Projective Multi-Touch|
|CPU||600MHZ ARM Cortex-A8 + 128M Flash+128MB DDR3|
|LCD Visual Angle||70'/70'/75'/75'|
|Screen Size||7inch 16:9 tft lcd screen|
|Flash/ARM||128MB Flash+ 128MB DDR3|

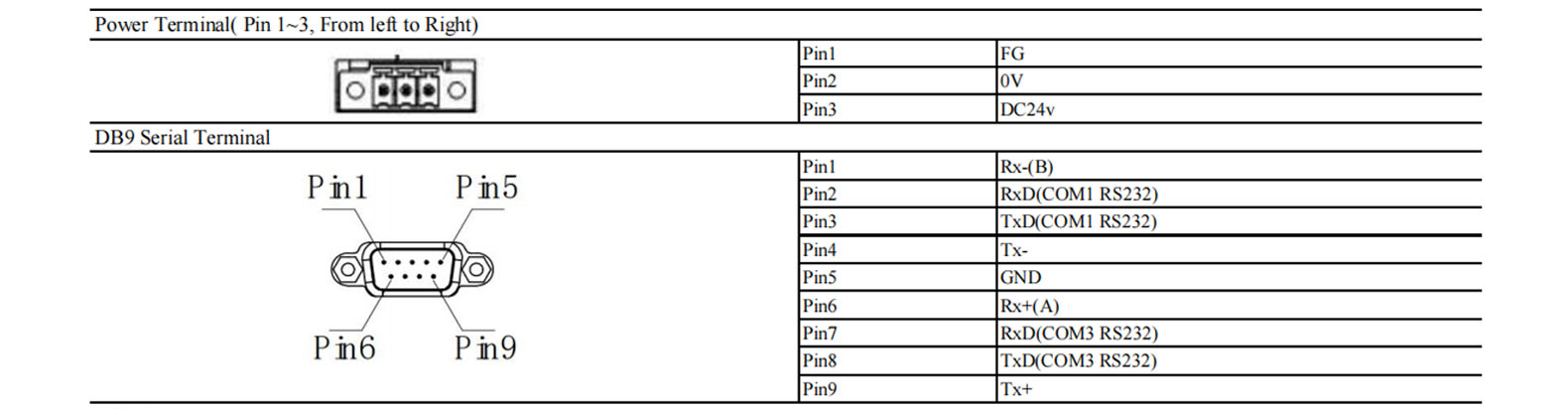

|Serial Port||COM1:RS232/RS485/RS422; COM2/COM4:RS485; COM3:RS232|
|Ethernet||1x 10M/100M Self-Adaption|
|Download Project||USB Disk/ USB Device/ Ethernet|
|Power Supply||DC24V, Working Range: DC9V~DC28V|
|Power Protection||Protected From Thunder Strike And Surging|
|Operating Humidity||10~90% RH( No Condensation)|
|Vibration Endurance||10~25HZ (X,Y,Z 2G/30Min)|
|Shell Material||Aluminium Alloy + Engineering Plastic|
|Dimension(mm)||185.1mm x 131.1mm x 30mm|
|Panel Cutout(mm)||178mm x 135mm|
|Protection||Front IP65( with NEMA panel), Back IP20|
|Communication Protocol||Standard Modbus( RTU, TCP/IP)|
|Programming Software||Free Mochuanstudio|
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;

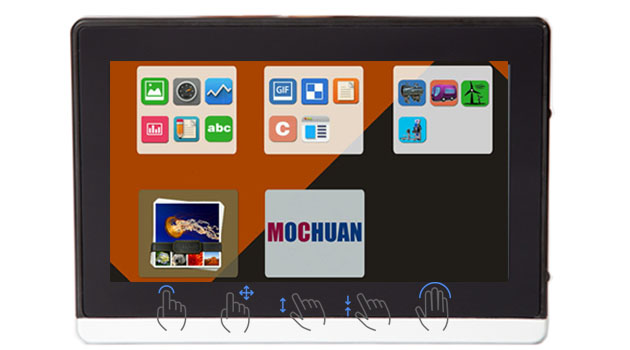

New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Take advantage of our unrivaled knowledge and experience, we offer you the best customization service.
