9.7'' M010 Parameter

/ 9.7'' Multi Touch Capacitive HMI




Model9.7Inch M010 Multi-Touch Capacitive HMI Panel
Touch Screen TypeGlass+Glass Projective Multi-Touch
CPU600MHZ ARM Cortex-A8 + 128M Flash+128MB DDR3






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size9.7inch  4:3 tft lcd screen
Resolution1024x768
Colors24bits
Brightness350cd/m2
BackLightLED
BackLife50000 Hours


Storage

Flash/ARM128MB Flash+ 128MB DDR3
SD CardSupport
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422; COM2/COM4:RS485; COM3:RS232
Ethernet1x 10M/100M Self-Adaption
Download ProjectUSB Disk/ USB Device/ Ethernet





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<8W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminium Alloy + Engineering Plastic
Dimension(mm)247mm x 197mm x 31.5mm
Panel Cutout(mm)230mm x 180mm
Weight(g)1115g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-10°C~60°C
Temperature Storage-20°C~70°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU, TCP/IP)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


M010 9.7Inch Clearness, High Brightness, Transparent
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent. The industrial TFT LCD display has a clear display effect. The current industrial tft lcd display is not what everyone thinks, which the resolution of the industrial tft lcd display is low. Because it is an industrial scene, the problem of clarity is ignored. The brightness of the high-brightness industrial tft lcd display can be achieved between 500-3000cd/m2. It is not difficult to increase the brightness, but how to control the power consumption and solve the problem of heat dissipation after increasing the brightness is the key. Our MOCHUAN's industrial tft lcd The displays all have a stable solution.
More Features
/ 9.7'' M010 HMI




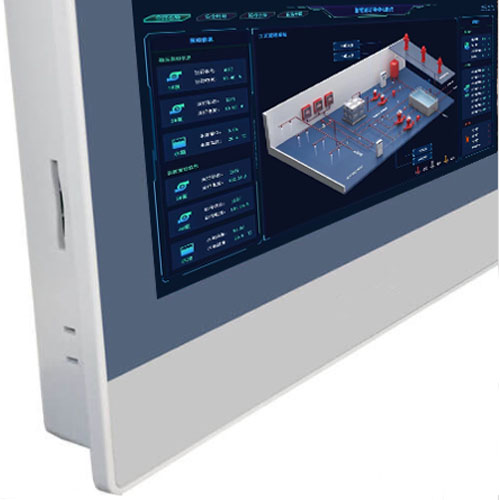

Mochuan HMI 9.7'' 10'' HMI Is Wide View, IPS


The viewing angle of the LCD refers to the angle at which the user can clearly observe all the contents on the screen from different directions. Since the light source that provides the LCD display has a certain directionality when it is refracted and reflected, it will cause color distortion when viewing beyond this range.


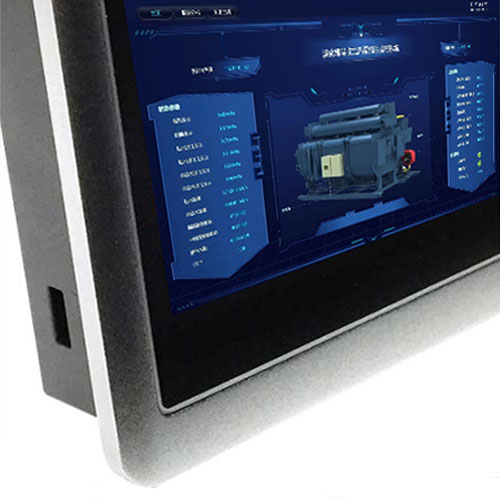

Mochuan HMI With Strong Resistance Interference


HMI adopts industrial-grade high-quality components, high-level protection design, and comprehensive three-proof spraying. It can easily cope with wet underground mines, high-temperature Gobi or factory environments with corrosive gases, oil mist or dust.



Multi-Touch Capacitive HMI
With strong anti-ambient light ability, multi-touch screen, through the further improvement of anti-light technology, it can effectively ensure that the touch screen can still work normally under any light irradiation conditions, whether indoor or outdoor, it can reach the number of The touch effect, relative to the single-point touch screen, cannot achieve the effect. If you want to win on a certain project, or looking for a different highlight to attract the market, consider a multi-touch capacitive screen.

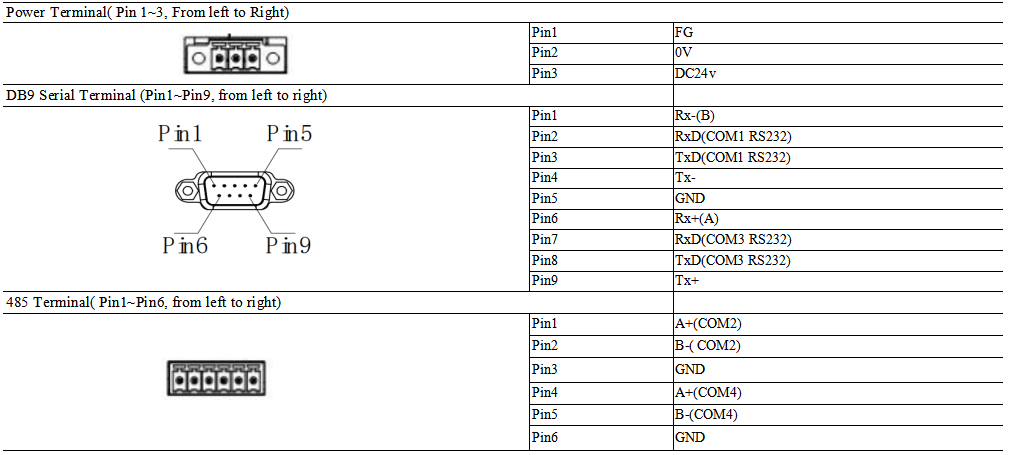

M010 Ports Description
