The tough market condition drives us to improve our competitiveness in technologies. We have carried out multiple tests to improve technologies which make the manufacturing process more time- saving.At present, the product is perfect for the application field(s) of Touch Screen Monitors.
Model | 12.1Inch MC4121X Metal Resistive HMI | |
---|---|---|
Touch Screen Type | 4wire resistive touch screen | |
CPU | 600MHZ ARM9 Cortex-A8 | |
Display | LCD Visual Angle | 80'/80'/80'/80' |
Screen Size | 12.1inch 4:3 tft lcd screen | |
Resolution | 1024x768 | |
Colors | 24bits | |
Brightness | 370cd/m2 | |
BackLight | LED | |
BackLife | 50000 Hours | |
Storage | Flash/ARM | 128MB Flash+128ARM DDR3 |
SD Card | Support | |
RTC | Built-in | |
Ports | Serial Port | COM1/COM2:RS232/RS485/RS422; COM3/COM4:RS232 |
Ethernet | 1x10M/100M Self-Adaptin | |
Download Project | USB Disk/ USB Device | |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
Rated Power | <15W | |
Power Protection | Protected From Thunder Strike And Surging | |
Power Down | <5mS | |
Operating Humidity | 10~90% RH( No Condensation) | |
Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Aluminum Alloy + Galvanized Sheet Powder Spraying |
Dimension(mm) | 310mm x 240mm x 48.5mm | |
Panel Cutout(mm) | 291mm x 219mm | |
Weight(g) | 1200g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
Temperature Operate | -20°C~70°C | |
Temperature Storage | -30°C~80°C | |
The others | Certificate | CE |
Communication Protocol | Standard Modbus( RTU, TCP/IP) | |
Programming Software | Free Mochuanstudio |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

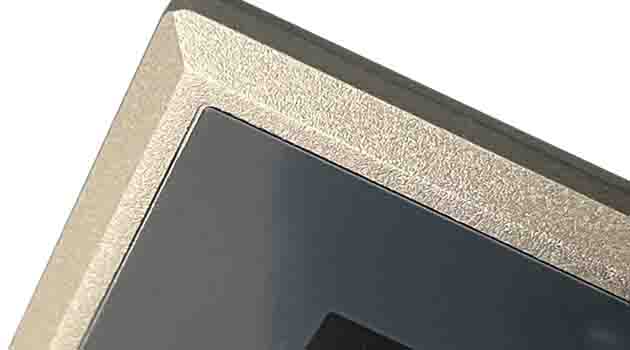

Mochuan 12.1Inc MC4121X Ethernet rs485 is metal enclosure, fine heat dispersion and strong anti-interference. Metal enclosure, fine heat dispersion and strong anti-interference. Metal housing has good shielding, can be directly grounded, better anti-interference performance.
12.1Inch MC4120X MC4121X With Strong CPU
ARM CortexA8 processor, high speed and easy flow, supporting animation formats.The outstanding run rate and power efficiency of the Cortex-A8 processor is achieved through the new ARM Artisan® Advantage - CE library that supports and enables advanced leakage control. This processor is supported by a wide range of ARM technologies for fast system design.
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
4.3inch MC-H043S
7inch MC-H070/ MC-H070W
7inch MC-H070S/MC-H070SW
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. What is guarantee do you offer?
7days refund in case any bad quality; And 36months warranty.
2. What technical support do you offer?
Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.
3. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.
4. Is there any service, if swtich another brand hmi to be Mochuan's?
Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.
5. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
