Metal Shell Wide-Temperature Resistive HMI Panel
VR
  • Product Details
WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through publick service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through publick service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC4097X Parameter

/ 9.7'' Wide-temperature Metal RS485 Resistive HMI



Model9.7Inch MC4097X Metal Resistive HMI
Touch Screen Type4wire resistive touch screen
CPU600MHZ ARM9 Cortex-A8






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size9.7inch 4:3 tft lcd screen
Resolution1024x768
Colors16bits
Brightness350cd/m2
BackLightLED
BackLife50000 Hours


Storage

Flash/ARM128MB Flash+128ARM DDR3
SD CardSupport
RTCBuilt-in



Ports

Serial PortCOM1/COM2:RS232/RS485/RS422;  COM3/COM4:RS232
Ethernet1x10M/100M Self-Adaptin
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminum Alloy + Galvanized Sheet Powder Spraying
Dimension(mm)245mm x 190mm x 31mm
Panel Cutout(mm)232mm x 182mm
Weight(g)1200g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-20°C~70°C
Temperature Storage-30°C~80°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU, TCP/IP)
Programming SoftwareFree Mochuanstudio
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC4097X 9.7Inch Ethernet Metal Enclosure, Fine Heat Dispersion And Strong Anti-Interference

Mochuan 9.7Inc MC4097X Ethernet rs485 is metal enclosure, fine heat dispersion and strong anti-interference. Metal enclosure, fine heat dispersion and strong anti-interference. Metal housing has good shielding, can be directly grounded, better anti-interference performance.


More Features
/ 9.7'' MC4097X HMI




Mochuan HMI With A Very Strong CPU


ARM CortexA8 processor, high speed and easy flow, supporting animation formats. The ARM Cortex-A8 processor is the 1st application processor based on the ARMv7 architecture and is the highest performance and most power efficient processor ever developed by ARM. with rates in the 600MHz to over 1GHz range, the Cortex-A8 processor is capable of meeting the requirements of mobile devices that need to operate at power-optimized rates below 300mW; and Meet the requirements of consumer applications that require the performance optimization of 2000 Dhrystone MIPS.


Mochuan Support Animation Formats


ARM CortexA8 processor, high speed and easy flow, supporting animation formats. The GIF format supports graphic progression. Progressive means that the image is gradually displayed on the screen. Progressive images will appear on the screen faster than non-progressive images, allowing visitors to get a quicker overview of the image.

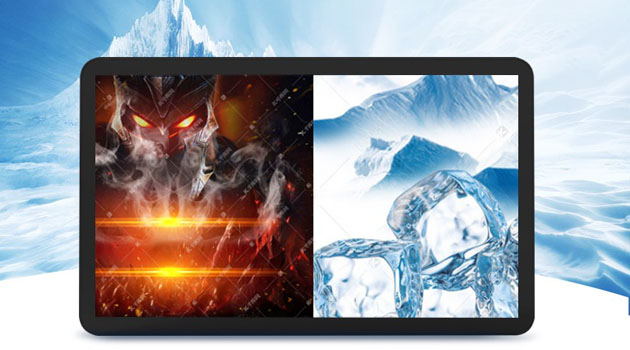

MOCHUAN HMI Industrial Dustproof High And Low Temperature Resistance -20° To 70°C
9.7Inch Excellent in the face of all kinds of harsh environmental problems, industrial-grade cooling holes, industrial-grade design can effectively prevent dust from entering the internal host, competent for the high heat dissipation requirements of industrial control.



MC4097X Ports Description
/ 9.7'' MC4097X HMI





si
Related Products
/ Mochuan HMI




Capacitive Multi-Touch HMI

7inch M007

9.7inch M010

9.7inch MC5097X

17inch MC5170

22inch MC5220


Plastic Economic Resistive HMI

4.3inch MC-H043S

7inch MC-H070/ MC-H070W

7inch MC-H070S/MC-H070SW

10.1inch MC-H100/MC-H100W/MC-H100D

10.1inch MC-H100E/MC-H100EW/MC-H100DE

15.6inch MC-H156E

Metal Shell Wide-Temperature Resistive HMI

4.3inch MC4043E

7inch MC4070M

7inch MC4070E

9.7inch MC4097X

12.1inch MC4121X

15inch MC4150X




Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;


Feature:

New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;


Material of Shell: ABS


Feature:

7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;




Material of Shell:  Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.


Feature:

Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;

FAQ
/ MOCHUAN HMI




1. What technical support do you offer?

Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.


2. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.


3. Is there any service, if swtich another brand hmi to be Mochuan's?

Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.


4. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
