MOCHUAN hmi ultra wide monitor touch screen pa low cost smart tft lcd plc pc Plastic Shell Economic Resistive HMI Panel compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN hmi ultra wide monitor touch screen pa low cost smart tft lcd plc pc Plastic Shell Economic Resistive HMI Panel can be customized according to your needs.
The utilization of technologies facilitates the high-efficiency and cost-saving manufacturing process.With those advantages,low cost smart tft lcd plc hmi ultra wide monitor touch screen panel pc has been tested to be suitable for the application range(s) of Other Electrical Equipment.
Model | MC-H100ED | |
---|---|---|
Touch Screen Type | 4wire resistive touch screen | |
Color of Shell | Black | |
CPU | 600MHz ARM Cortex-A8 | |
Display | LCD Visual Angle | 85'/85'/85'/85' |
Screen Size | 10.1'' 16:9 tft lcd screen | |
Resolution | 1024x 600 | |
Colors | 24 bits | |
Brightness | 400cd/m² | |
BackLight | LED | |
BackLife | 50000 Hours | |
Storage | Memory | 128M Flash+128M DDR3 |
SD Card | Support | |
RTC | Built-in | |

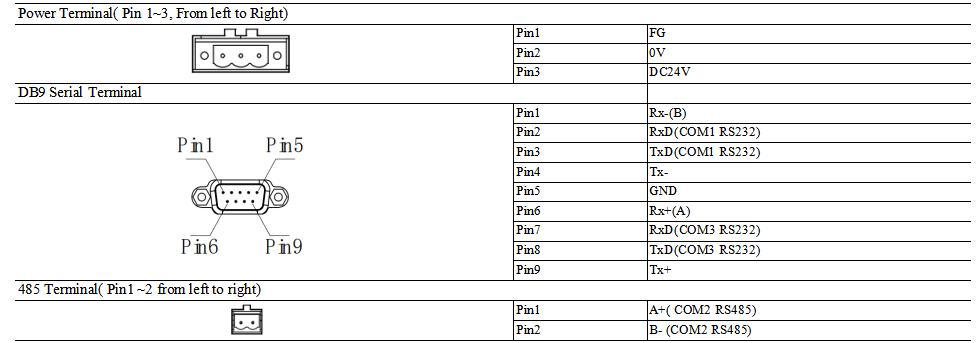

Ports | Serial Port | COM1:RS232/RS485/RS422; COM2:RS485; COM3:RS232 |
Ethernet | 1x10M/100M Self-adation | |
Download Project | USB Disk/ USB Device/Ethernet | |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
Rated Power | <10W | |
Power Protection | Protected From Thunder Strike And Surging | |
Power Down | <5mS | |
Operating Humidity | 10~90% RH( No Condensation) | |
Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Engineering Plastic |
Dimension(mm) | 237mm x 213mm x36mm | |
Panel Cutout(mm) | 260mm x 202mm | |
Weight(g) | 900g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
Temperature Operate | 0°C~50°C | |
Temperature Storage | -20°C~60°C | |
The others | Certificate | CE |
Communication Protocol | Standard Modbus( RTU,) | |
Programming Software | Free Mochuanstudio 2.8.11490.0 |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Mochuan 10.1inch MC-H100ED with ethernet and 1024x600 resolution, and 261mm x 180mm panel cutout. 16:9 tft lcd, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.
Multi-choose of 10.1Inch Ethernet HMI In Mochuan
There are MC-H100E, MC-H100EW, MC-H100ED and MC-H100CWE of 10.1inch HMI Ethernet HMI In Mochuan. Each of them with different foucs on points. For more information, kindly have a look our Mochuan catalog HMI to learn more, trusting there will be one suitable of your project.
10.1'' Mochuan HMI With Strong CPU
ARM CortexA8 processor, high speed and easy flow, supporting animation formats.The Cortex-A8 is ARM's most powerful processor ever, clocked from 600 MHz to 1 GHz. The A8 meets the needs of a wide range of mobile devices, consuming less than 300 milliwatts and delivering up to 2000 MIPS of performance. The Cortex-A8 is ARM's first superscalar processor. The processor is designed with new technologies to improve code efficiency and performance.
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
4.3inch MC-H043S
7inch MC-H070/ MC-H070W
7inch MC-H070S/MC-H070SW
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charges?
Mochuan HMI software is free for the user.
2. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model HMI for the project"trusting it will be some helpful on selecting hmi model and type.
3. Is there any service, if switch another brand hmi to be Mochuan's?
Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.
4. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
