MOCHUAN china hmi manufacturers touch screen panel cheap 1024x600 rs485 tru tft lcd USB 7inch MC-H070W compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN china hmi manufacturers touch screen panel cheap 1024x600 rs485 tru tft lcd USB 7inch MC-H070W can be customized according to your needs.
MOCHUAN can deliver china cheap tft lcd USB hmi manufacturers touch screen panel the best quality at low prices.We always ensure that buyers are getting what they need.
| Model | MC-H070W | |
|---|---|---|
| Touch Screen Type | 4wire resistive touch screen | |
| Color of Shell | Black | |
| CPU | 600MHz ARM Cortex-A8 | |
Display | LCD Visual Angle | 50'/70'/70'/70' |
| Screen Size | 7'' 16:9 tft lcd screen | |
| Resolution | 1024X600 | |
| Colors | 24 bits | |
| Brightness | 450cd/m² | |
| BackLight | LED | |
| BackLife | 50000 Hours | |
Storage | Memory | 128M Flash+128M DDR3 |
| SD Card | N/A | |
| RTC | Built-in | |

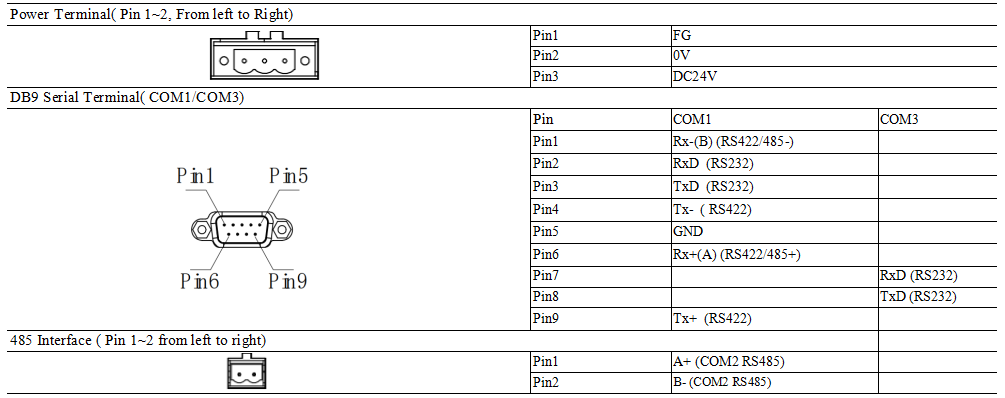

Ports | Serial Port | COM1:RS232/RS485/RS422; COM2:RS485, COM3:RS232 |
| Ethernet | N/A | |
| Download Project | USB Disk/ USB Device | |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
| Rated Power | ＜10W | |
| Power Protection | Protected From Thunder Strike And Surging | |
| Power Down | ＜5mS | |
| Operating Humidity | 10~90% RH( No Condensation) | |
| Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Engineering Plastic |
| Dimension(mm) | 204mm x 145mm x33.8mm | |
| Panel Cutout(mm) | 192mm x 138mm | |
| Weight(g) | 310g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
| Temperature Operate | 0°C~50°C | |
| Temperature Storage | -20°C~60°C | |
The others | Certificate | CE |
| Communication Protocol | Standard Modbus( RTU,) | |
| Programming Software | Free Mochuanstudio 2.8.11490.0 | |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

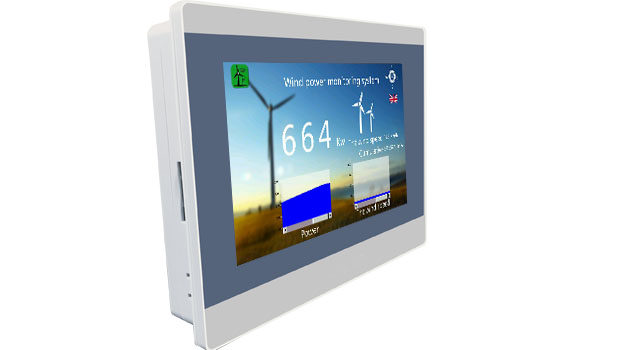

Mochuan 7inch MC-H070W, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.
MOCHUAN Resistive HMI MC-H070W With Precise Touch Control, Extremely Fast Response
Using the original resistive resistive screen, touch times up to 35 million times, high-speed transmission response, a correction of high stability, touch sensitive and fast, waterproof, oil and grease resistant for you to create a strong industrial hmi touch screen.
MOCHUAN PCB Adapot Industrail Ioslated Power Module
Industrial isolated power module, the surface is with spray coating treatment and applicable to various harsh environment. The purpose of isolation is to protect the system so that when there is interference or pulse at one end, it will not affect the other parts due to mutual isolation.
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
4.3inch MC-H043S
7inch MC-H070/ MC-H070W/ MC-H070C/MC-H070CW
7inch MC-H070S/MC-H070SW/MC-H070CWE
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is there any suggestion on selecting model of HMI panel?
Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model hmifor the project", trusting it will be some helpful on selecting hmi model and type.
2. Is there any service, if switch another brand to be Mochuan's?
Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.
3. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
