MOCHUAN touch panel display hmi modbus 7 embedded programmable smart home flexible led 7inch MC-H070CWE compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN touch panel display hmi modbus 7 embedded programmable smart home flexible led 7inch MC-H070CWE can be customized according to your needs.
With experienced engineers and technicians, we have strong ability to optimize and upgrade technologies. Based on smart home modbus 7 embedded programmable flexible led touch panel display's versatile features, it proves to be very useful in the field(s) of Other Electrical Equipment.
| Model | MC-H070CWE | |
|---|---|---|
| Touch Screen Type | 4wire resistive touch screen | |
| Color of Shell | white | |
| CPU | 1GHz, CortexTM-A7 | |
Display | LCD Visual Angle | 85'/85'/85'/85' |
| Screen Size | 7'' 16:9 tft lcd screen | |
| Resolution | 1024x600 | |
| Colors | 24bits | |
| Brightness | 400cd/m² | |
| BackLight | LED | |
| BackLife | 50000 Hours | |
Storage | Memory | 128M Flash+128M DDR3 |
| SD Card | N/A | |
| RTC | Built-in | |

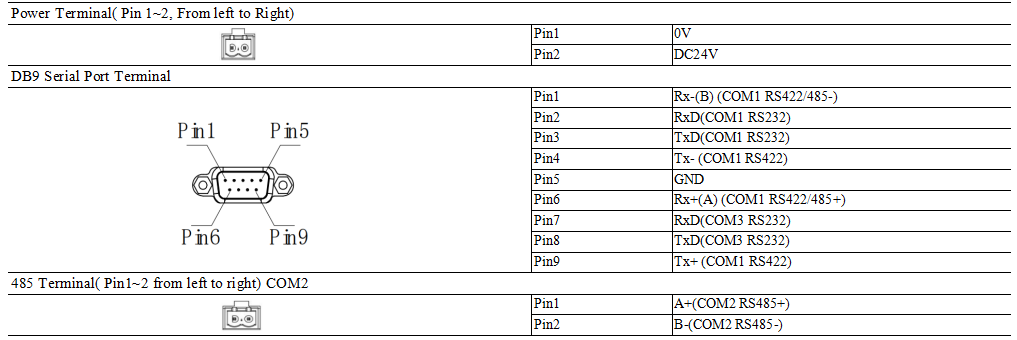

Ports | Serial Port | COM1:RS232/RS485/RS422; COM2:RS485; COM3:RS232 |
| Ethernet | 1X10M/100M Self-Adapotion | |
| Download Project | USB Disk/ USB Device/Ethernet | |
Power | Power Supply | DC24V, Working Range: DC9V~DC28V |
| Rated Power | ＜10W | |
| Power Protection | Protected From Thunder Strike And Surging | |
| Power Down | ＜5mS | |
| Operating Humidity | 10~90% RH( No Condensation) | |
| Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Engineering Plastic |
| Dimension(mm) | 204mm x 145mm x34mm | |
| Panel Cutout(mm) | 192mm x 138mm | |
| Weight(g) | 485g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
| Temperature Operate | 0°C~50°C | |
| Temperature Storage | -20°C~60°C | |
The others | Certificate | CE |
| Communication Protocol | Standard Modbus( RTU,) | |
| Programming Software | Free Mochuanstudio 2.8.11490.0 | |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Mochuan 7inch MC-H070CWE, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.
7Inch MOCHUAN MC-H070CWE HMI With Strong CPU CortexTM-A7
According to ARM's official website for Cortex-A7 description, 28nm process, the core area is not greater than 0.45mm, at this time Cortex-A7 can run at 1.2 ~ 1.6GHz, and in a typical scenario power consumption is less than 100mW. therefore Cortex-A7 commonly used language power requirements of the mobile side, but the reduction in power consumption is not equal to Cortex-A7 performance is not enough. The official description of Cortex-A7 is that it is more powerful and power efficient than Cortex-A8, and can achieve similar performance to Cortex-A9 at lower power consumption. A reference architecture design for MPcore is given in the Cortex-A7 technical manual.
MOCHUAN 7Inch HMI Support Animation Formats
ARM CortexA8 processor, high speed and easy flow, supporting animation formats. supporting animation formats.The GIF animation format, like PNG, is a format commonly used on the web, and can be used to store multiple color images. Advantages: small size, ideal for use on the web, and the ability to create animations. Disadvantages. It can only contain up to 256 colors.
7inch M007
9.7inch M010
9.7inch MC5097X
17inch MC5170
22inch MC5220
4.3inch MC-H043S
7inch MC-H070/ MC-H070W
7inch MC-H070S/MC-H070SW
10.1inch MC-H100/MC-H100W/MC-H100D
10.1inch MC-H100E/MC-H100EW/MC-H100DE
15.6inch MC-H156E
4.3inch MC4043E
7inch MC4070M
7inch MC4070E
9.7inch MC4097X
12.1inch MC4121X
15inch MC4150X
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
Feature:
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Feature:
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Feature:
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is there any suggestion on selecting model of HMI panel?
Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model hmifor the project", trusting it will be some helpful on selecting hmi model and type.
2. Is there any service, if switch another brand to be Mochuan's?
Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.
3. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
