MOCHUAN plc control HMI panel automate controller tft lcd ethernet rs485 dc24v 15.6inch mc-h156e panel compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of MOCHUAN plc control HMI panel automate controller tft lcd ethernet rs485 dc24v 15.6inch mc-h156e panel can be customized according to your needs.
Because of the technologies, the product can maintain its stable chemical and physical properties. Having passed relevant tests, plc control HMI panel automate controller has been proved to be suitable for the field(s) of Other Electrical Equipment.
| Model | MC-H156E | |
|---|---|---|
| Touch Screen Type | 4wire resistive touch screen | |
| Color of Shell | White | |
| CPU | 1G ARM Cortex-A8 | |
Display | LCD Visual Angle | 85'/85'/85'/85' |
| Screen Size | 15.6'' 16:9 tft lcd screen | |
| Resolution | 1920x 1080 | |
| Colors | 16 bits | |
| Brightness | 250cd/m² | |
| BackLight | LED | |
| BackLife | 50000 Hours | |
Storage | Memory | 128M Flash+128M DDR3 |
| SD Card | TF card | |
| RTC | Built-in | |
Ports | Serial Port | COM1:RS232/RS485/RS422; COM2:RS422/RS485; COM3:RS232 |
| Ethernet | 2x10M/100M Self-adaption | |
| Download Project | USB Disk/ USB Device | |
Power | Power Supply | DC24V, Working Range: DC18V~DC28V |
| Rated Power | ＜18W | |
| Power Protection | Protected From Thunder Strike And Surging | |
| Power Down | ＜5mS | |
| Operating Humidity | 10~90% RH( No Condensation) | |
| Vibration Endurance | 10~25HZ (X,Y,Z 2G/30Min) | |
Dimension | Shell Material | Aluminum Alloy |
| Dimension(mm) | 394mm x 256mm x 36mm | |
| Panel Cutout(mm) | 380mm x 245mm or VESA Install | |
| Weight(g) | 2260g | |
Environment | Protection | Front IP65( with NEMA panel), Back IP20 |
| Temperature Operate | 0°C~50°C | |
| Temperature Storage | -20°C~60°C | |
The others | Certificate | CE |
| Communication Protocol | Standard Modbus( RTU,) | |
| Programming Software | Free Mochuanstudio 2.8.11490.0 | |
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Mochuan 15.6inch MC-H156E, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. With 1920x1080 reolution, and 1G ARM Cortex-A8 strong cpu.

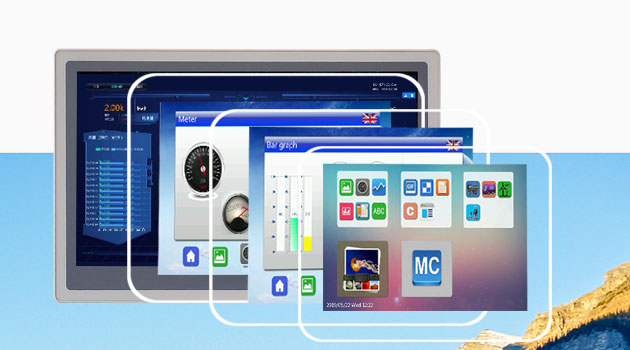

MOCHUAN 15.6'' HMI High Resolution
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent, like the apple mobile, will bring the user different experience. For now the only bright spots in the indstury market, will be easy to win in your competitor.
1. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model HMI for the project"trusting it will be some helpful on selecting hmi model and type.
2. Is there any service, if switch another brand hmi to be Mochuan's?
Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.
3. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
