|Model||17Inch MC5170 Multi-Touch Capacitive HMI Panel|
|Touch Screen Type||Glass+Glass Projective Multi-Touch|
|CPU||800MHZ ARM Cortex-A8 + 256M Flash+256MB DDR3|
|LCD Visual Angle||85'/85'/80'/80'|
|Screen Size||17inch 4:3 tft lcd screen|
|Flash/ARM||256MB Flash+ 256MB DDR3|

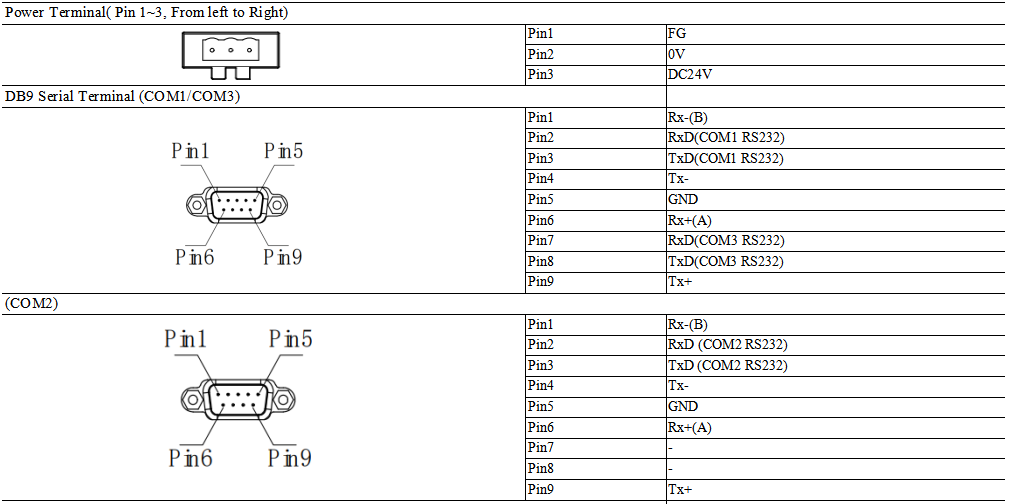

|Serial Port||COM1/COM2:RS232/RS485/RS422; COM3:RS232|
|Ethernet||1x 10M/100M Self-Adaption|
|Download Project||USB Disk/ USB Device/ Ethernet|
|Power Supply||DC24V, Working Range: DC18V~DC28V|
|Power Protection||Protected From Thunder Strike And Surging|
|Operating Humidity||10~90% RH( No Condensation)|
|Vibration Endurance||10~25HZ (X,Y,Z 2G/30Min)|
|Shell Material||Aluminium Alloy + Galvanized sheet is sprayed with powder|
|Dimension(mm)||185.1mm x 131.1mm x 30mm|
|Panel Cutout(mm)||370mm x 304mm or Wall-mounted|
|Protection||Front IP65( with NEMA panel), Back IP20|
|Communication Protocol||Standard Modbus( RTU, TCP/IP)|
|Programming Software||Free Mochuanstudio 2.8.11490.0|
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

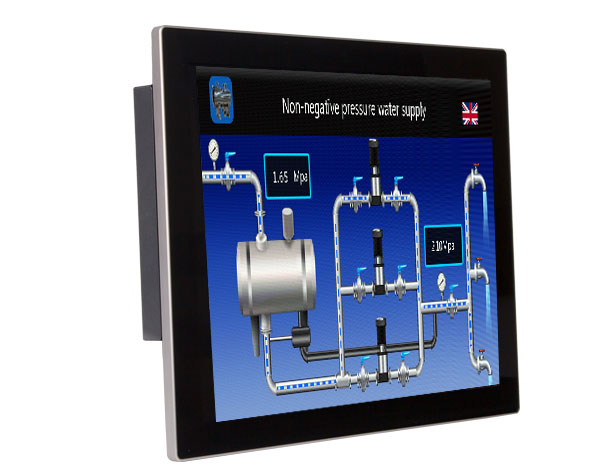

MC5170 17Inch Clearness, High Brightness, Transparent
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent, like the apple mobile, will bring the user different experience. For now the only bright spots in the indstury market, will be easy to win in your competitor. The traditional industrial tft lcd display screen is a very heavy screen. If it is a small machine, it will use a bulky display screen in the form of a plug-in, and the current industrial tft lcd display screen is small in size and thin in thickness, which saves a lot of money. Space is used, and equipment can be made lightweight.
Multi-Touch Capacitive HMI
Supporting multi-touch and gesture, specific page effect can be realized. To upgrade the latest advances in human computer interaction technilogy, easily completing complex tasks between point and click.
Scratch Resistant, Without Drift
Aapoting Glass+Glass touch screen, high hardness, scratch-resistitance, long-term use without scratchs and wear, No resistive type HMI touch drift problem, long time stability and reliablity. The capacitive touch screen of the industrial display has little damage to the screen due to the multi-finger touch, and the capacitive technology itself has the characteristics of wear resistance and long life,so the maintenance cost is low when users use it. Touch no drift, automatic correction, supporting high precise operation.
Strong Environmental Adaptability
HMI adopts industrial-grade high quality components, high protection level level design and comprehensive three-proof coating, no matter it is a wet underground mine, high temperature gobi or factory environment with corrosive gas, oil mist or dust, it can easily cope with its ease. Therefore, industrial touch screen is matched with some professional integrated modules. 10,000 hours of trouble-free safe production, more reliable.
The design has fully considered the complex electromagnetic compatibility environment of industrial sites, in line with IEC standards, while the wide voltage input design, power fluctuations can still be used safely. The front over made by aluminum, and the surface with hard oxide treatment; The back cover is made of galvanized sheet, and the surface is with dry spray treatment.
Capacitive Multi-Touch HMI
Plastic Economic Resistive HMI
7inch MC-H070/ MC-H070W
Metal Shell Wide-Temperature Resistive HMI
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
Material of Shell: ABS
7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;
Material of Shell: Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.
Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;
1. Is the HMI software free or to charge?
Mochuan HMI Software Mochuanstudio is free for the user. You can take from"download-software" if you need.
2. What is guarantee do you offer?
7days refund in case any bad quality; And 36months warranty.
3. What technical support do you offer?
Offering demo, pdf description file, video and technical supporting one-to-one online, through creating only online group for you, to fast solve the technical, if you work with us.
4. Is there any suggestion on selecting model of HMI?
Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.
5. Is there any service, if swtich another brand hmi to be Mochuan's?
Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.
6. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
