WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC-H156E Parameters
/ 15.6'' Resistive Ethernet HMI Monitor




ModelMC-H156E
Touch Screen Type4wire resistive touch screen
Color of ShellWhite
CPU1G ARM Cortex-A8






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size15.6'' 16:9 tft lcd screen
Resolution1920x 1080
Colors16 bits
Brightness250cd/m²
BackLightLED
BackLife50000 Hours


Storage

Memory128M Flash+128M DDR3
SD CardTF card
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422;  COM2:RS422/RS485; COM3:RS232
Ethernet2x10M/100M Self-adaption
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC18V~DC28V
Rated Power<18W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminum Alloy
Dimension(mm)394mm x 256mm x 36mm
Panel Cutout(mm)380mm x 245mm or VESA Install
Weight(g)2260g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate0°C~50°C
Temperature Storage-20°C~60°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU,)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC-H156E 15.6Inch Clearness, High Brightness, High advantage competitive

Mochuan 15.6inch MC-H156E, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. With 1920x1080 reolution, and 1G ARM Cortex-A8 strong cpu.


More Features
/ 15.6'' MC-H156E Ethernet 1G ARM HMI




MOCHUAN 15.6Inch HMI Support Animation Formats


ARM CortexA8 processor, high speed and easy flow, supporting animation formats. supporting animation formats.The GIF animation format, like PNG, is a format commonly used on the web, and can be used to store multiple color images. Advantages: small size, ideal for use on the web, and the ability to create animations. Disadvantages. It can only contain up to 256 colors.

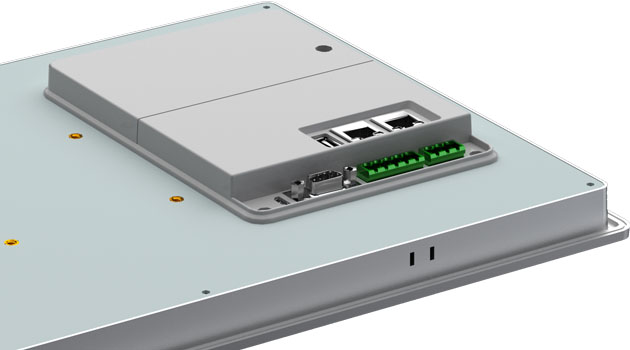

15.6Inch MC-H156E HMI Metal Shell
Metal enclosure, fine heat dispersion and strong anti-interference. Metal enclosure, fine heat dispersion and strong anti-interference.In the high frequency electromagnetic field, the use of thin layer of metal as a shell or lining material can achieve good shielding effect,

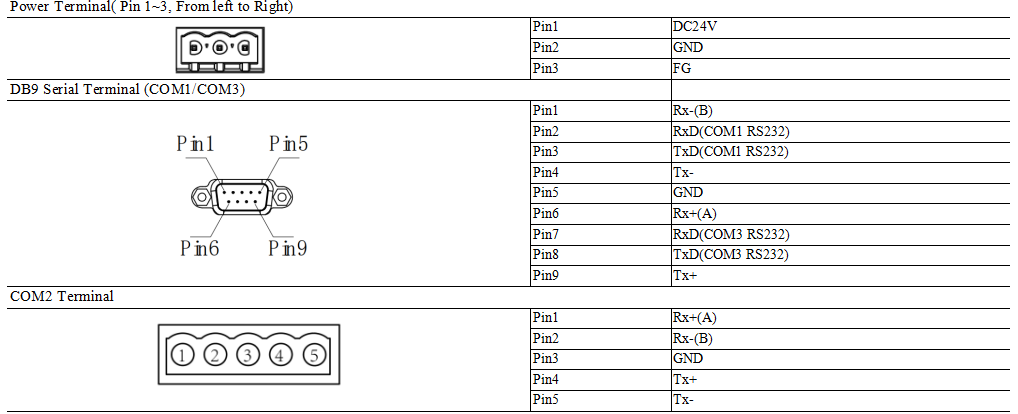

MC-H156E Ports Description
/ MC-H156E ethernet 1G ARM HMI





si
FAQ
/ MOCHUAN HMI



1. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model HMI for the project"trusting it will be some helpful on selecting hmi model and type.


2. Is there any service, if switch another brand hmi to be Mochuan's?

Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.


3. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
