WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public hotline telephone to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public hotline telephone service, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
9.7'' M010 Parameter




Model9.7Inch M010 Multi-Touch Capacitive Industrial HMI Touch Panel
Touch Screen TypeGlass+Glass Projective Multi-Touch
CPU4Core 1.2GHz ARM Cortex-A7






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size9.7inch  4:3 tft lcd screen
Resolution1024x768
Colors24bits
Brightness350cd/m2
BackLightLED
BackLife50000 Hours


Storage

Flash/ARM4G eMMC + 256M DDR3
SD CardSupport
RTCBuilt-in



Ports

Serial PortCOM1:RS232/RS485/RS422; COM2/COM4:RS485; COM3:RS232
Ethernet1x 10M/100M Self-Adaption
Download ProjectUSB Disk/ USB Device/ Ethernet





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<8W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminium Alloy + Engineering Plastic
Dimension(mm)247mm x 197mm x 31.5mm
Panel Cutout(mm)230mm x 180mm
Weight(g)1115g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-10°C~60°C
Temperature Storage-20°C~70°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU, TCP/IP)
Programming SoftwareFree Mochuanstudio 2.8.11490.0
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.

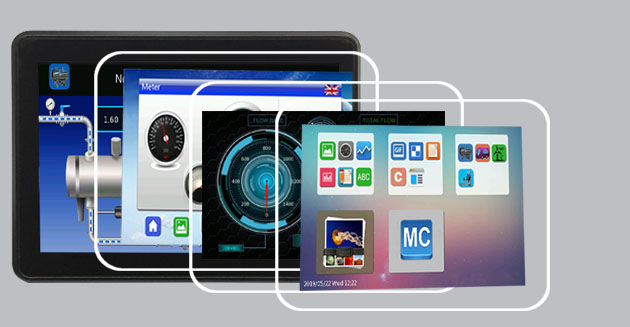

M010 9.7 Inch Industrial HMI Touch Panel Clearness, High Brightness, Transparent
Mochuan multi touch capacitive HMI panel is very clearness, high brightness, high resolution is up to 1920x1080 and transparent. The industrial TFT LCD display has a clear display effect. The display resolution is the number of pixels displayed on the screen.For example, the resolution of 1920x1080 The display resolution is the number of pixels displayed on the screen.For example, the resolution of 1920x1080 means that the number of pixels in the horizontal direction is 1920 and the number of pixels in the vertical direction is 1080. When the HMI touch screen panel size is the same, the higher resolution, the better of the display effect, fine and delicate.
More Features
/ 9.7'' M010 HMI




Mochuan 9.7'' 10'' HMI Support Multi-Touch


Capacitive touch screen module and LCD module between the coordinate system is completely different. LCD module pixel coordinates are generally determined by its resolution, for example, a WVGA screen, its resolution is 800 * 480, that is, there are 800 lines, each line of 480 RGB pixels. Thus, a specific location can be determined by the X and Y direction of the pixel (x, y). The capacitive touch screen module is based on its original physical size in the X and Y direction to determine the coordinate system. There must be a reasonable mapping method between the two coordinate systems to ensure the correctness of the input and output operations.


Mochuan Capacitive HMI With A Long Working Life


Capacitive touchscreens for industrial displays will last longer because the components in the capacitive touchscreen do not require any movement. In resistive touch screens, the upper ITO film needs to be thin enough to be flexible enough to bend down to contact the underlying ITO film.


MOCHUAN HMI 9.7Inch M010 With A Strong CPU
ARM CortexA8 processor, high speed and easy flow, supporting animation formats.With less than 4 square millimeters of silicon and a low-power 65nm process, the Cortex-A8 processor will run at speeds above 600MHz (excluding NEON, trace technology and secondary cache memory). With the high-performance 90nm and 65nm processes, the Cortex-A8 processor can run at speeds up to 1GHz, thus meeting the needs of high-performance consumer product design.



M010 Ports Description
/ 9.7''M010 HMI





si
FAQ
/ MOCHUAN HMI




1. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model hmi for the project". trusting it will be some helpful on selecting hmi model and type.


2. Is there any service, if switch another brand hmi to be Mochuan's?

Yes, providing translation engineering file services, if you wanna switch to be Mochuan HMI.


3. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
