WHY MOCHUAN HMI
1. Rich performance, very stable quality, and the most important is very high advantage competitive, very beautiful in price; 2. To create a technical supporting group ONLY for you through one-to-one service online, if you deal with us, not need through public service hotline to waste the time and engery, to realize fastly solve; 3. Directly factory sale, to help customers quickly match the model through our over a decade of field experience and industry solutions, achieving a truly cost-controlled solution or win market solution;
PK
MARKET BRAND HMI
1. Very stable quality, rich performance but low usage probability with expensive. It is like a luxury car that has too many features and functions but it actually used very little, for example, Siemens brand, Mitsubishi, etc; 2. Only through public service hotline, have to restate the problem for every calling, becuase people who pick up are different; 3. There are many different agent levels, it is difficult to get the first level price for buyers.
MC4097X Parameter

/ 9.7'' Wide-temperature Metal RS485 Resistive HMI



Model9.7Inch MC4097X Metal Resistive HMI
Touch Screen Type4wire resistive touch screen
CPU600MHZ ARM9 Cortex-A8






Display

LCD Visual Angle85'/85'/85'/85'
Screen Size9.7inch 4:3 tft lcd screen
Resolution1024x768
Colors16bits
Brightness350cd/m2
BackLightLED
BackLife50000 Hours


Storage

Flash/ARM128MB Flash+128ARM DDR3
SD CardSupport
RTCBuilt-in



Ports

Serial PortCOM1/COM2:RS232/RS485/RS422;  COM3/COM4:RS232
Ethernet1x10M/100M Self-Adaptin
Download ProjectUSB Disk/ USB Device





Power

Power SupplyDC24V, Working Range: DC9V~DC28V
Rated Power<10W
Power ProtectionProtected From Thunder Strike And Surging
Power Down<5mS
Operating Humidity10~90% RH( No Condensation)
Vibration Endurance10~25HZ (X,Y,Z 2G/30Min)



Dimension

Shell MaterialAluminum Alloy + Galvanized Sheet Powder Spraying
Dimension(mm)245mm x 190mm x 31mm
Panel Cutout(mm)232mm x 182mm
Weight(g)1200g


Environment

ProtectionFront IP65( with NEMA panel), Back IP20
Temperature Operate-20°C~70°C
Temperature Storage-30°C~80°C


The others

CertificateCE
Communication ProtocolStandard Modbus( RTU, TCP/IP)
Programming SoftwareFree Mochuanstudio
Deserve To Know

/ Service from Mochuan



  1. 1. NO MOQ, 1pcs is OK.

  2. 2. 7days refund in case of bad quality; 36months warranty.

  3. 3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.

  4. 4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.

  5. 5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.


MC4097X 9.7Inch Ethernet Metal Enclosure, Fine Heat Dispersion And Strong Anti-Interference

Mochuan 9.7Inc MC4097X Ethernet rs485 is metal enclosure, fine heat dispersion and strong anti-interference. Metal enclosure, fine heat dispersion and strong anti-interference. Metal housing has good shielding, can be directly grounded, better anti-interference performance.


More Features
/ 9.7'' MC4097X HMI




MOCHUAN 9.7Inch HMI Is Metal Shell HMI


Metal enclosure, fine heat dispersion and strong anti-interference.In the high frequency electromagnetic field, the use of thin layer of metal as a shell or lining material can achieve good shielding effect.



Adopting Industrial Isolated Power Module
MC4097X 9.7Inch HMI adopt Industrial isolated power module, Industrial isolated power module, the surface is with spray coating treatment and applicable to various harsh environment. In industrial control equipment, it is sometimes required to isolate the power ground between two systems, such as isolation of ground noise, isolation of high common mode voltage, etc. Each module is powered separately to prevent damage to one module by high voltage discharge or other causes from spilling over to other modules. The purpose of doing so can ensure that each module works independently and is not subject to interference.

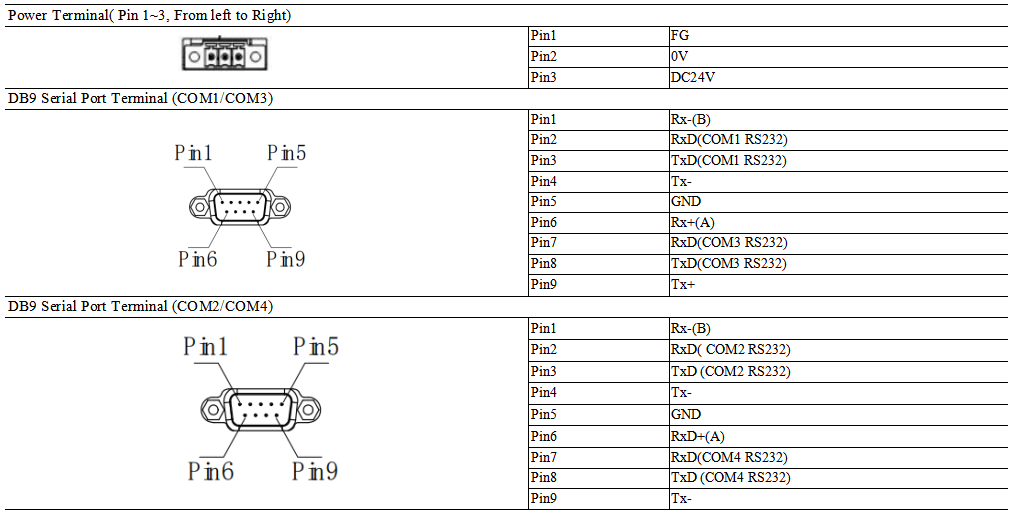

MC4097X Ports Description
/ 9.7'' MC4097X HMI





si
Related Products
/ Mochuan HMI




Capacitive Multi-Touch HMI

7inch M007

9.7inch M010

9.7inch MC5097X

17inch MC5170

22inch MC5220


Plastic Economic Resistive HMI

4.3inch MC-H043S

7inch MC-H070/ MC-H070W

7inch MC-H070S/MC-H070SW

10.1inch MC-H100/MC-H100W/MC-H100D

10.1inch MC-H100E/MC-H100EW/MC-H100DE

15.6inch MC-H156E

Metal Shell Wide-Temperature Resistive HMI

4.3inch MC4043E

7inch MC4070M

7inch MC4070E

9.7inch MC4097X

12.1inch MC4121X

15inch MC4150X




Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;


Feature:

New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;


Material of Shell: ABS


Feature:

7inch support 1024x600 resolution, and the maximum viewing angle is 170°, which brings a better sensory experience to customers; The display size, parameters, resolution, COM port and the other configuration multiple options; Very high advantage competitive and high stability; Energy-saving and environmental protection;




Material of Shell:  Aluminum front cover +the back over is made of galvanized sheet, and the surface is with dry spray treatment.


Feature:

Working temperature is from-20°C to +70°C, and stroge temperature is from -30° to 80°C; Metal enclosure, fine heat dispersion and strong anti-interference;

FAQ
/ MOCHUAN HMI



1. Is there any suggestion on selecting model of HMI?

Yes, it is good to take two minutes to read this article"how to select a suitable and high advantage competitive model hmi for the project", trusting it will be some helpful on selecting hmi model and type.


2. Is there any service, if swtich another brand hmi to be Mochuan's?

Yes, Providing translation engineering file services, if you wanna switch to be Mochuan HMI.


3. Is there any certificate of HMI?

Yes, Mochuan HMI support CE and RoHs.
