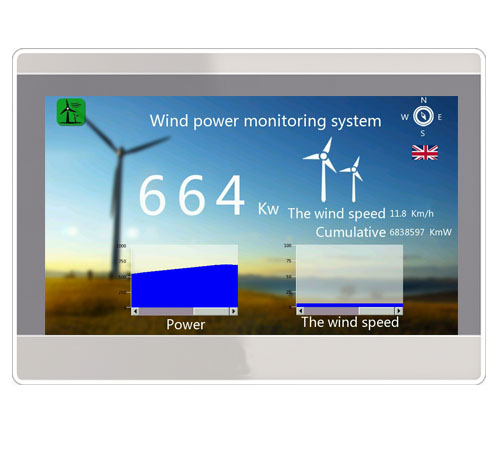

Manufacturer hmi touch screen price 1GHz CortexTM-A7 rs485 rtu tft lcd 7Inch MC-H070CW compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MOCHUAN summarizes the defects of past products, and continuously improves them. The specifications of Manufacturer hmi touch screen price 1GHz CortexTM-A7 rs485 rtu tft lcd 7Inch MC-H070CW can be customized according to your needs. Thanks to the efforts of our staff, we have successfully broken the barriers in technology innovation and upgrades. We have mastered technologies, which ensures the whole manufacturing process is efficient.It covers a wide application range and has found its great use in the field(s) of hmi human machiine interface, plc programmable logic controller, standard and non-standard customized permanent magnet motor up till now.
|Touch Screen Type||4wire resistive touch screen|
|Color of Shell||White|
|LCD Visual Angle||85'/85'/85'/85'|
|Screen Size||7'' 16:9 tft lcd screen|
|Memory||128M Flash+128M DDR3|

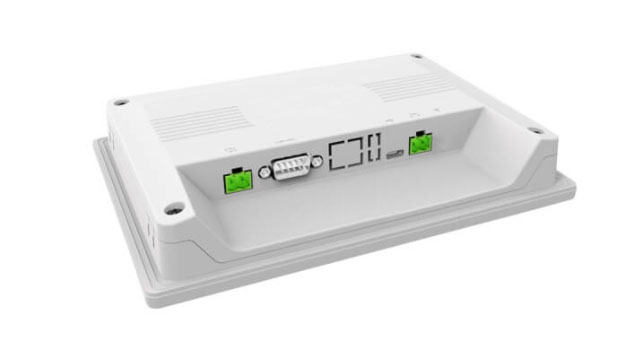

|Serial Port||COM1:RS232/RS485/RS422; COM3:RS232; COM2:RS485|
|Download Project||USB Disk/ USB Device|
|Power Supply||DC24V, Working Range: DC9V~DC28V|
|Power Protection||Protected From Thunder Strike And Surging|
|Operating Humidity||10~90% RH( No Condensation)|
|Vibration Endurance||10~25HZ (X,Y,Z 2G/30Min)|
|Shell Material||Engineering Plastic|
|Dimension(mm)||204mm x 145mm x33.8mm|
|Panel Cutout(mm)||192mm x 138mm|
|Protection||Front IP65( with NEMA panel), Back IP20|
|Communication Protocol||Standard Modbus( RTU,)|
|Programming Software||Free Mochuanstudio 2.8.11490.0|
1. NO MOQ, 1pcs is OK.
2. 7days refund in case of bad quality; 36months warranty.
3. Offering the translation project file service, if wanna switch the other brand HMI to be Mochuan's.
4. It can prepare the models for customer urgent order, to shorten the delivery time, just one wrods, if you work with us.
5. Offering demo, description file, remote help etc, any you like the way, to solve the technical problem through one-to-one online service.
Mochuan 7inch MC-H070, the LED backlight uses light-emitting diodes as the backlight light source, and does not require lamps, so the thickness of the light guide plate is greatly reduced, and the thickness of the entire group of backlight plates can be reduced by about half. The power consumption is reduced, and the LED itself has high luminous efficiency. In general, it can save about 40% of the power consumption of the display screen. Under the same power condition, it directly improves the battery life.
Material of Shell: Front cover is aluminum, the surface with hard oxide treatment +back is made of galvanized sheet, is with dry spray treatment;
New design, very popular in market; IPS full view tft lcd; Supporting multi-touch and gesture; It deserve to try in sample, then you will know it all;
1. Is the HMI software free or to charge?
Mochuan HMI software Mochuanstuido is free for the user. You can take from" download-software" if you need.
2. What is guarantee of resistive HMI panel do you offer?
7days refund in case of any bad quality, and 36months warranty.
3. What technical of HMI do you support?
Offering demo, pdf description file, video and technicla supporting one to one online, through creating only online group for you, to fast solve the technical, if work with us.
4. Is there any suggestion on selecting model of HMI panel?
Yes, it is good to take two minutes to read this article" how to select a suitable and high advantage competitive model hmifor the project", trusting it will be some helpful on selecting hmi model and type.
5. Is there any service, if switch another brand to be Mochuan's?
Yes, providing translation engineering file service, if you wanna switch to be Mochuan HMI.
6. Is there any certificate of HMI?
Yes, Mochuan HMI support CE and RoHs.
