MOCHUAN MV series plc GEAR1 instruction description

Mochuan MV series plc GEAR1 instruction description


GEAR1

C_GEAR1   Dn   Mn

/**

B[0]    //Enabling electronic gear  Continuously give 1 to run the whole function, give 0 to pause the function.

B[1]    //Enforcement of compensation  0 to 1 jumps are compensated once (with electronic gearing enabled)

B[2]    //Compensation direction      1 for forward 0 for reverse

B[3]    //be 1 to enable the virtual spindle 1 to start the virtual axis, 0 to have the actual encoder value passed to DW[10]

B[4]  (Monitor) //Compensation execution flag bit

B[5]  (monitor)//here a warning

B[6]        //0 to 1 jump, given position clear 0.

B[7]    //Mode selection 0 for no acceleration/deceleration mode, 1 for electronic gear acceleration/deceleration stop start

B[8]    //Start signal for deceleration stop in mode 1, rising edge active

B[9]    //In mode 1, the start signal to start the chase synchronisation is active on the rising edge

B[10] (monitor)//In mode 1, this bit is 1 during the deceleration stop, the rest is 0 B[11] (monitor)//In mode 1, this bit is 0 during the deceleration stop and 1 when finished

B[12] (monitor)//In mode 1, this bit is 1 during the synchronization chase, the rest is 0 B[13] (monitor)//In mode 1, this bit is 0 during the synchronization chase and 1 when finished

_______________________________________________________________________________

FW[0]    //Set cycle time(ms)   float type

FW[2]    //Setting up electronic gear molecules   float type

FW[4]    // Setting the electronic gear denominator  float type

FW[6]    //Number of pulses travelled by the spindle during compensation float type   Fill in as required

FW[8]    //Number of compensation pulses float type   Fill in as required

DW[10]    //Incoming spindle position        int type

FW[12]    //Setting the virtual spindle speed   float type

DW[14] (monitor)//Spindle position Pulses         int type

DW[16]  (monitor)//Given position       int type

FW[18] (monitor)//Theoretical given speed     float type

FW[20] (monitor)//Calculated spindle speed        float type

FW[22] (monitor)//Compensation position value Starting from 0 each time  float type

FW[24]    // set KP     float type

DW[26]    //Incoming actual from axis position  int type

FW[28]    //Set maximum compensation speed  float type

FW[30] (monitor)//Real-time error       float type

FW[32] (monitor)//Real-time compensation speed    float type

FW[34]    //Transmits a real time given speed  float type

FW[36]     //Stopping distance for deceleration stop in mode 1, where the deceleration distance from the shaft is set                                              float type

FW[38]    //Distance consumed by the spindle during synchronisation chasing in mode 1                                      float type

FW[40]    //In mode 1, the distance to be travelled from the axis during the synchronisation chase                                             float type

FW[42] //The small value of V1 calculated by monitoring the second state of the chase synchronization in mode 1                                         float type

FW[44] //The large value of V1 calculated by monitoring the second state of the chase synchronization in mode 1                                         float type

FW[46] //Monitoring of VO values for chase synchronisation in mode 1

float type

FW[48] //In mode 1, monitor which processing branch the acceleration and deceleration is in                                                int type

FW[50] //In mode 1, the spindle position is monitored

                                   float type

FW[52] //In mode 1, the distance to be travelled from the axis during the synchronisation chase                                               float type

DW[60] //Electronic gear generation for a given position

                            int type

FW[62] //The given speed generated by the electronic gear, i.e. 6034 without compensation                                                                                             float type

FW[70]    //Setting up compensated electronic gear molecules float type

  FW[72] //Outputs only the given speed generated by the D5502/D5504 electronic gear, as opposed to the D5562.

D5562 is the given speed generated by (D5502+D5570)/D5504        float type

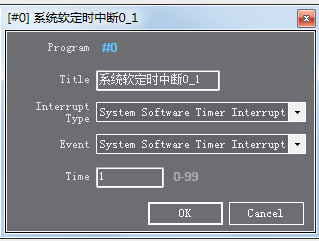

1. This instruction needs to be in the system soft component interrupt, and the instruction execution period needs to be the same as the parameter in the external FW[0].

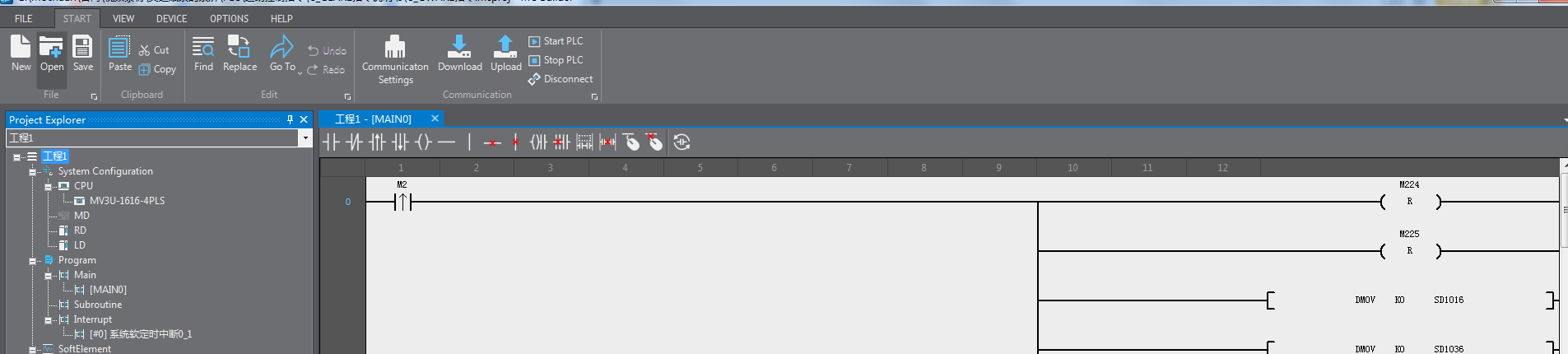

M3 can start this command





2. The B[0], B[3] and B[7] parameters need to be set when setting the bit parameters

B[0]   //Enabling electronic gearing Continuously given 1 to run the entire function, given 0 to suspend the function.

B[3]   //be 1 to enable the virtual spindle 1 to start the virtual axis, 0 to pass the actual encoder value to DW[10]

B[7]   //Mode selection 0 for no acceleration/deceleration mode, 1 for electronic gear acceleration/deceleration stop-start mode.



The second, remaining B[1]: triggering B[1] during the instruction run can be compensated once. (The direction of compensation is determined by the parameters in B[2])

B[1]   //Execution of compensation 0 to 1 jumps are compensated once (if electronic gearing is enabled)

B[2]   //Compensation direction 1 for forward 0 for reverse

When the mode in B[7] is 0, the command cannot trigger acceleration synchronization and deceleration stop.

When the mode in B[7] is 1, the spindle needs to trigger B[9] for accelerated start and B[8] for decelerated stop when stopping.

B[8]   //Start signal for deceleration stop in mode 1, (active on rising edge)

B[9]   //In mode 1, the start signal for chase synchronisation is activated, (rising edge active)

All remaining bits are monitoring parameters

B[4]  (monitor) //Compensation execution flag bit

B[5]  (monitor)//Are there warnings

B[10] (monitor)//In mode 1, this bit is 1 during the deceleration stop, the rest is 0

B[11] (monitor)//In mode 1, this bit is 0 during the deceleration stop and 1 when finished

B[12] (monitor)//In mode 1, this bit is 1 during the synchronization chase, the rest is 0

B[13] (monitor)//In mode 1, this bit is 0 during the synchronization chase and 1 when finished.



3.Word parameter setting

FW[0]  //Set cycle time(ms)   float type

FW[2]  //Setting up electronic gear molecules   float type

FW[4]  //Setting the electronic gear denominator  float type

FW[0]The parameters in this section must be the same as those set in the soft component interrupt

FW[2] and FW[4] ratio between master and slave axes set according to actual conditions

FW[6]  //Number of pulses travelled by the spindle during compensation float Type fill as required

FW[8]  //Number of compensating pulses float Type  fill as required

FW[6] is the number of pulses to be taken by the master axis during compensation, FW[8] is the number of pulses to be compensated by the slave axis

(The number of pulses set in FW [8] has to be compensated from the axis within the parameters set in FW [6])



DW[10]  //Incoming spindle position        int type

FW[12]  //Setting the virtual spindle speed   float type

FW[24]  // set KP                 float type

DW[26]  //Incoming actual from axis position  int type

FW[28]  //Set maximum compensation speed     float type

DW [10] and FW [12] are the spindle position and spindle speed to be entered in real time

DW [26] is the slave axis position to be entered in real time (to ensure synchronisation of the spindle and slave axis)

FW[24] is the ratio of acceleration to deceleration

FW[28] sets the maximum compensation speed (a compensation speed greater than the maximum compensation speed will set B[5] in the command to on)

FW[34]  //Transmits a real time given speed   float type

FW[36]   //Stopping distance from axis at deceleration stop in mode 1, float type

FW[38]  //Distance consumed by the spindle during the synchronization chase in mode 1 float

FW[40]  //In mode 1, the distance to be travelled from the axis during the synchronization chase float

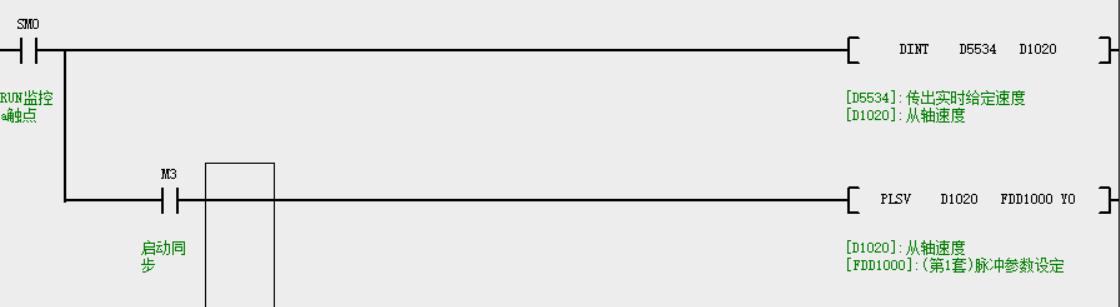

FW[34] is the slave axis speed given by the command (written into the slave axis by means of the PLSV command)

FW[36] is the distance required to decelerate from the shaft to 0 at deceleration stop


FW[38] and FW[38] are the number of pulses to be taken by the master and slave axes respectively when chasing synchronisation

FW[70]  //Setting up compensated electronic gear molecules   float type

If required, the electronic gear ratio can also be compensated FW [70] directly to the electronic gear ratio numerator
